Drawing No. 75682-

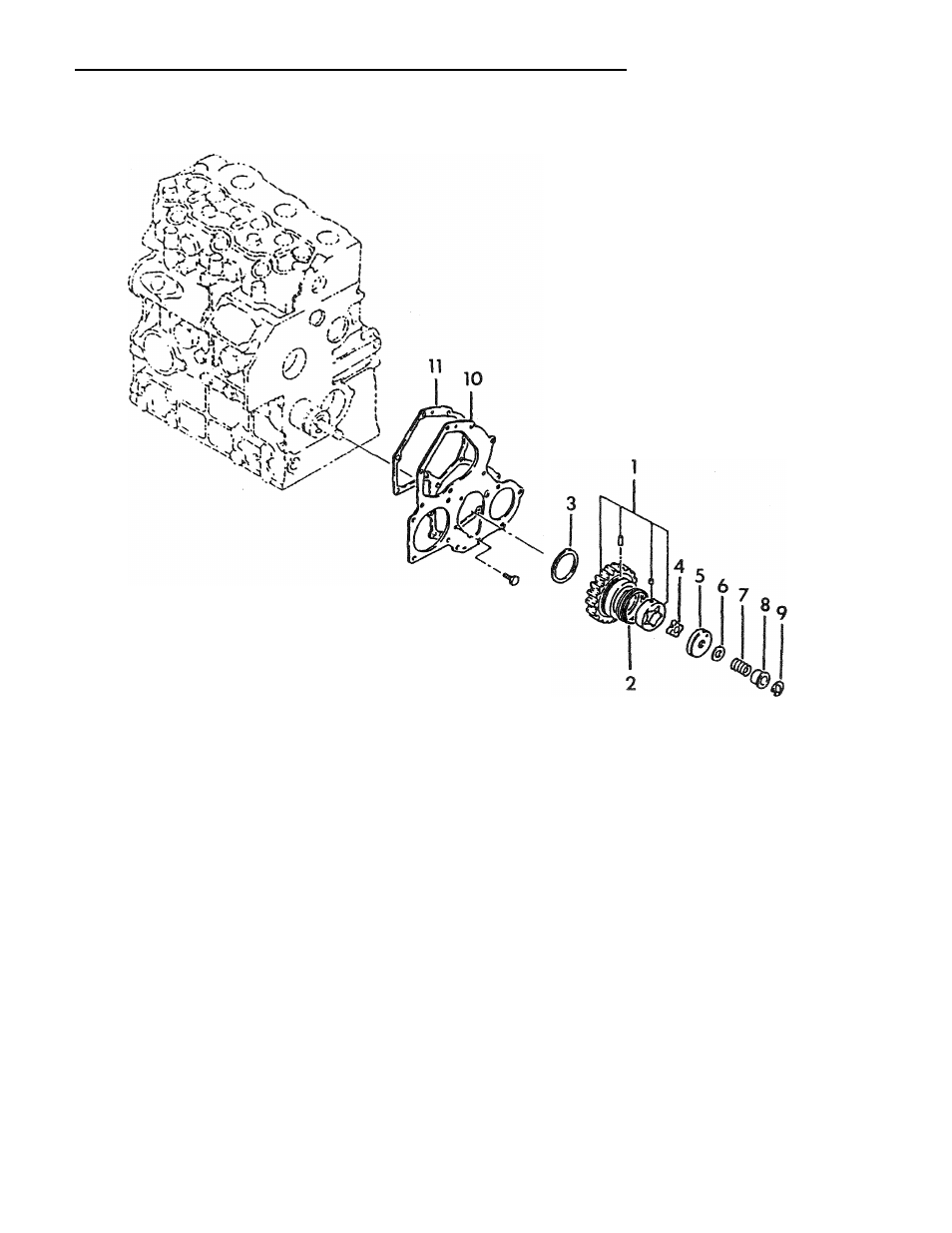

EXPLODED VIEW — OIL PUMP COMPONENTS

12

ITEM

PART NO. QTY. DESCRIPTION

1

250-70939

1

IDLER GEAR ASSEMBLY

2

252-70939

1

SPRING

3

251-70939

1

THRUST WASHER

4

253-70939

1

ROTOR

5

254-70939

1

OIL PUMP COVER

6

255-70939

AR

0.10MM SHIM

532-70939

AR

0.15MM SHIM

533-70939

AR

0.20MM SHIM

258-70939

AR

0.50MM SHIM

7

259-70939

1

SPRING

8

260-70939

1

COLLAR

9

261-70939

1

SNAP RING

10

262-70939

1

FRONT PLATE

11

263-70939

1

GASKET

12

264-70939

3

BOLT

AR-AS REQUIRED

24
