SECTION I
KNOW YOUR MACHINE - MODEL 2000 ATS
Top of the line Superlock model 20CXÌ ATS is a 2/3/4 thread serger with adjustable
cutting width, built in rolled edge and differential feed. It is capable of two, three or four
thread sewing plus many decorative and specialty applications. A section of this workbook
outlines many different techniques, specialty feet, and simple quick projects for you to try
on your new Superlock.
1. KNOWING YOUR MACHINE

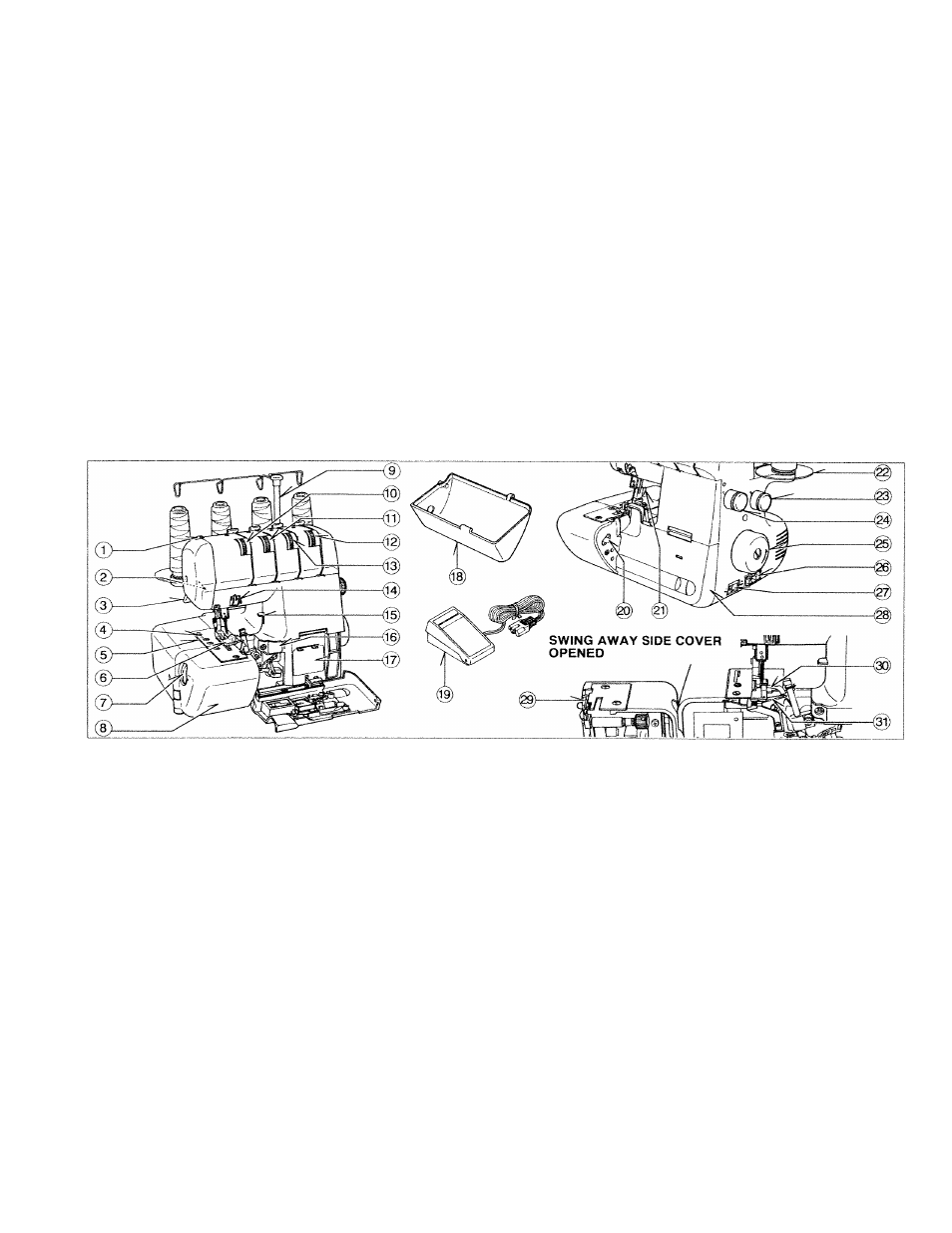

IDENTIFICATION CHART
1. Foot pressure regulator
2. Sewing light
3. Presser foot lift lever
4. Thread cutter (Model 2000 only)
5. Needle plate
6. Presser foot
7. Overedge cutting width dial
8. Swing away side cover
9. Thread guide pole
10. Left needle thread tension dial
11. Right needle thread tension dial
12. Lower looper thread tension dial
13. Upper looper thread tension dial
14. Needle thread guides
15. Thread cutter lever (Model 2000 only)
16. Two thread convertor Instruction
(Model 2000 only)
17. Threading chart
18. Waste tray (Model 2000 only)
19. Foot control
20. Release lever side cover
21. Foot release lever
22. Thread extension plate
23. Differential feed control dial
24. Stitch length dial
25. Hand wheel
26. Plug connector socket
27. Light and power switch
28. Front cover
29. Moving cutter
30. Upper looper
31. Lower looper
