SINGHR IIGHT
To replace Singer Bnlb.
Disconnect plug from electrical outlet before ma
king bulb replacement.
With thumb of right hand push in and down on
tab of light lens (see Illustration).
LOCKS
BULB
UNLOCKS
: :
U * :
Hi

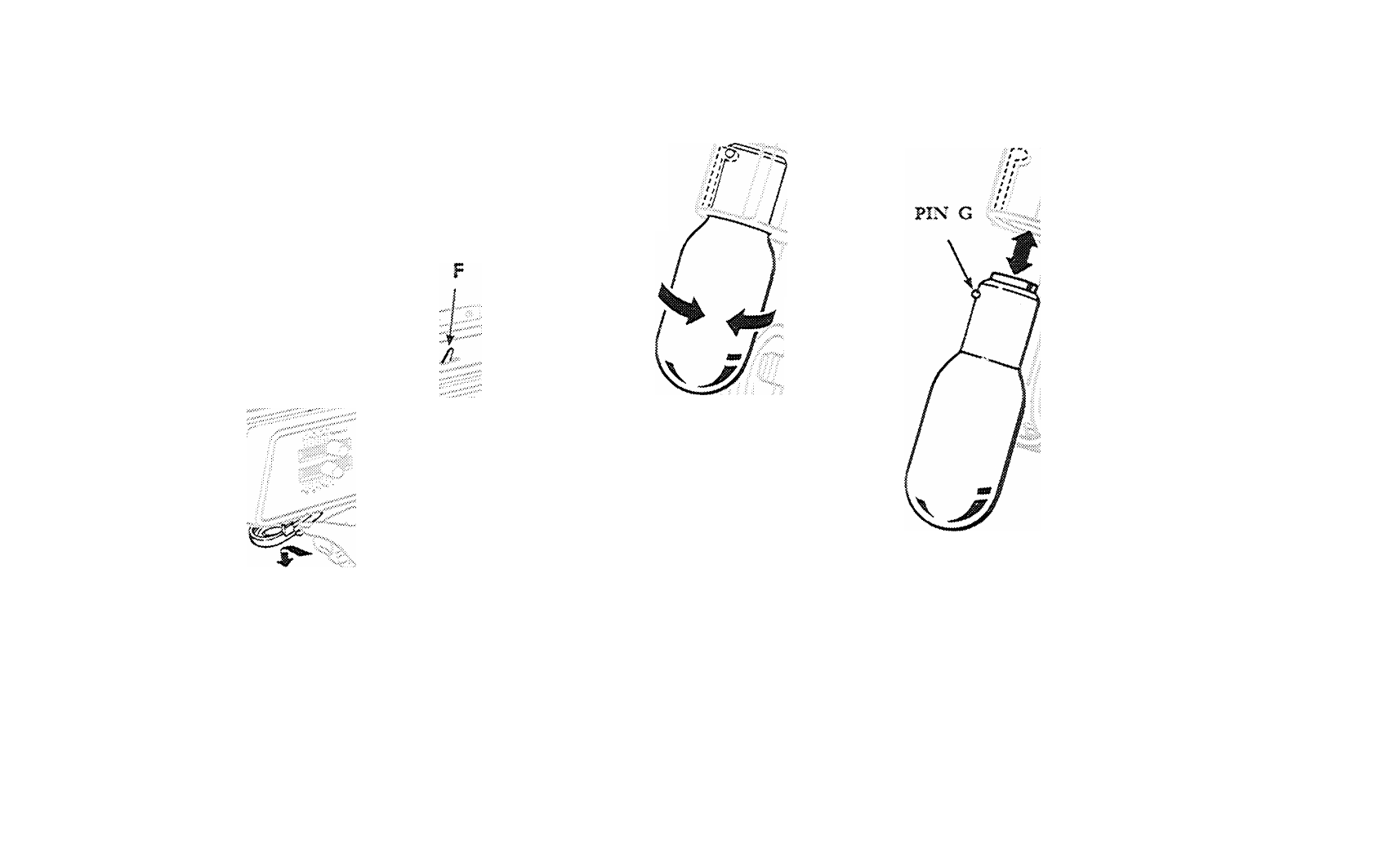

Do not attempt to unscrew bulb, press it into
socket and at same time turn bulb over in direction
shown to unlock bulb pin G, then withdraw bulb.
Press new bulb into socket with bulb pin G enter
ing slot of socket and turn it over in direction shown
to lock bulb pin G in proper position.
The light is turned ''on" or "off" by the switch F,
