accessories
O
O
Bobbin
{No, 172222)
Re
9
ular Bail-Point
Needle Needle
{Cat 2020) (Cat 2045)
Changing the Needle
The accessories that come with your sewing
machine are designed to help you do many
kinds of sewing easily and perfectly.
To increase the versatility of your machine still
further, additional accessories can be pur
chased at your Singer Sewing Center, For de
scriptions, see page 43.
1. BOBBINS
• One drop-in steel bobbin in your machine.
• Extra drop-in steel bobbins with your acces
sories.
2. NEEDLES
In place in your machine —
• Catalog 2020 (15x1)
With your accessories —
• Catalog 2020 (15x1) needles, tor all-purpose
sewing.
•
Catalog 2045 bail-point (yellow band)
needles, for sewing synthetic knits and
stretch fabrics.

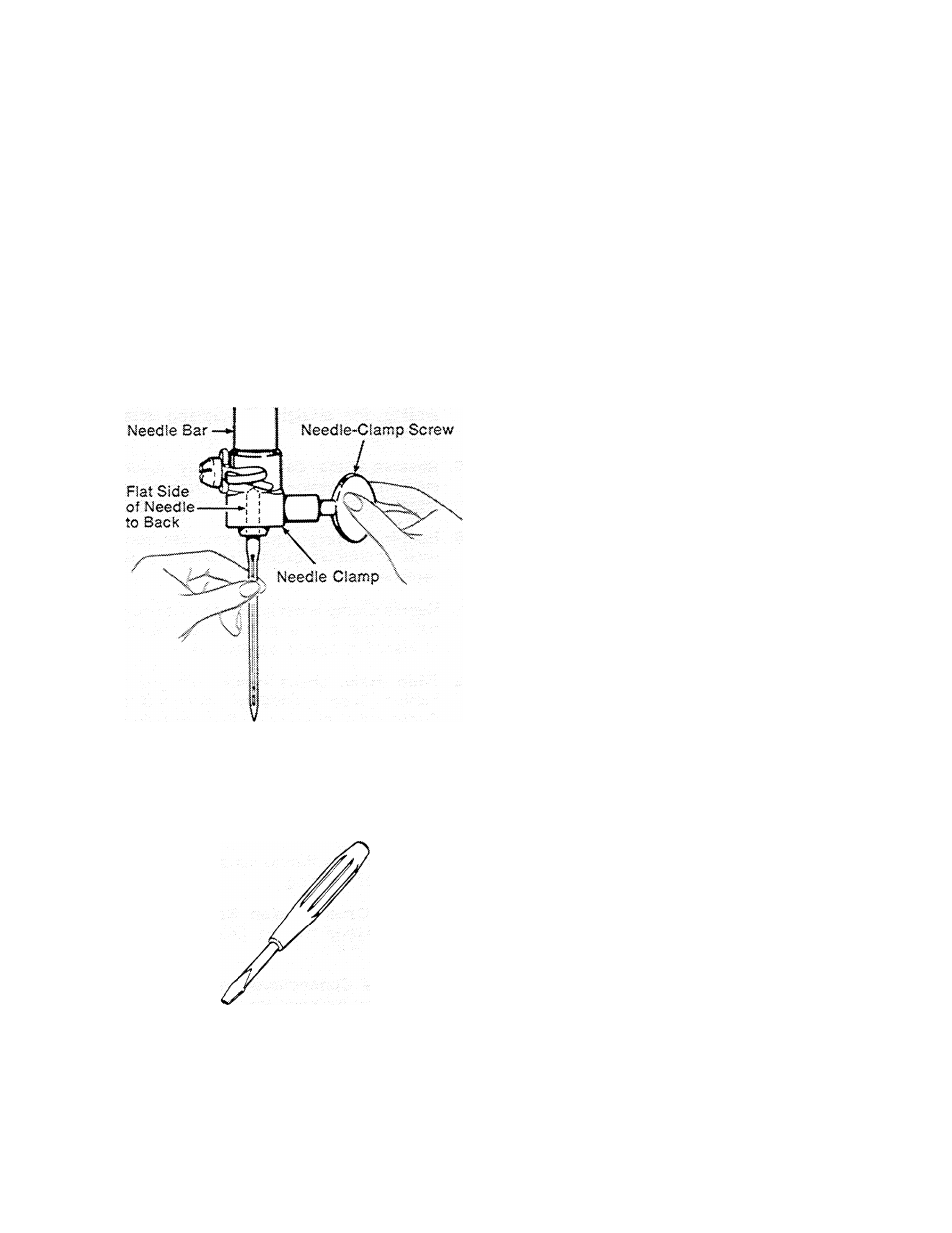

Changing the Needle
The needle clamp has been designed so that
the needle can only be inserted with the flat
side of the shank toward the back.
1. Raise needle bar to its highest position,
loosen needle-clamp screw, and remove
needle.
2. insert new needle in clamp, with the flat
side of the needle to the back, and push
it up as far as it will go.
3. Tighten needle-clamp screw.
3, TENSION SCREWDRIVER
Designed to fit the bobbin case tension screw,
this screwdriver makes adjustment of bobbin-
thread tension quick and easy. (For instruc
tions on bobblnAhreaâ tension adjustment, see
page
16
.)
Tension Screwdriver
