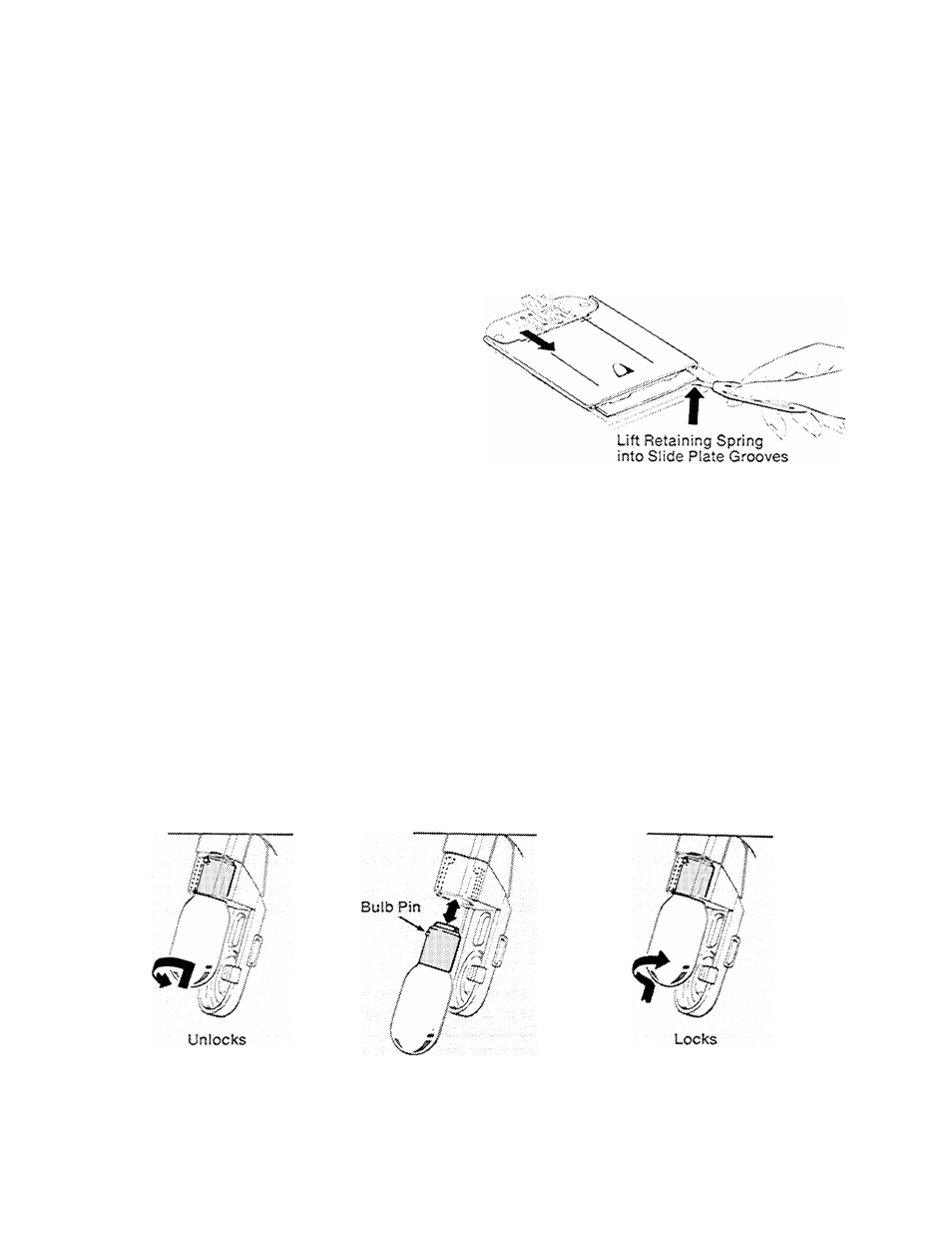

REPLACING THE SUDE PLATE

You will not have any occasion to remove the

slide plate. However, If it should accidentally

become disengaged from the machine, it is

easily replaced.

• Raise the presser foot and make sure needle

is in its highest position,

• Place slide plate in slide way with the front

edge close to, but not covering, the retain

ing spring (as shown}.

• With a small screwdriver, lift each end of the

spring into each of the side grooves on the

m6erslde of the plate.

• Draw the plate gently toward you and fully

engage the spring.

• Close slide plate.

Replacing the Slide Plate

CHANGING THE LIGHT BULB

Make sure you have disconnected power-
line plug from electrical outlet

Removing Bulb. With thumb of right hand,
push in and down on tab of light lens and
lower the light bracket. Do not attempt to

unscrew the bulb. Press it up into the

socket and at the same time turn bulb over
in direction shown to unlock the bulb pin.

Replacing Bulb. Press new bulb into

socket, with bulb pin entering slot of
socket, and turn it over in direction shown
to lock bulb in position. Push entire as

sembly up until it snaps In position.
