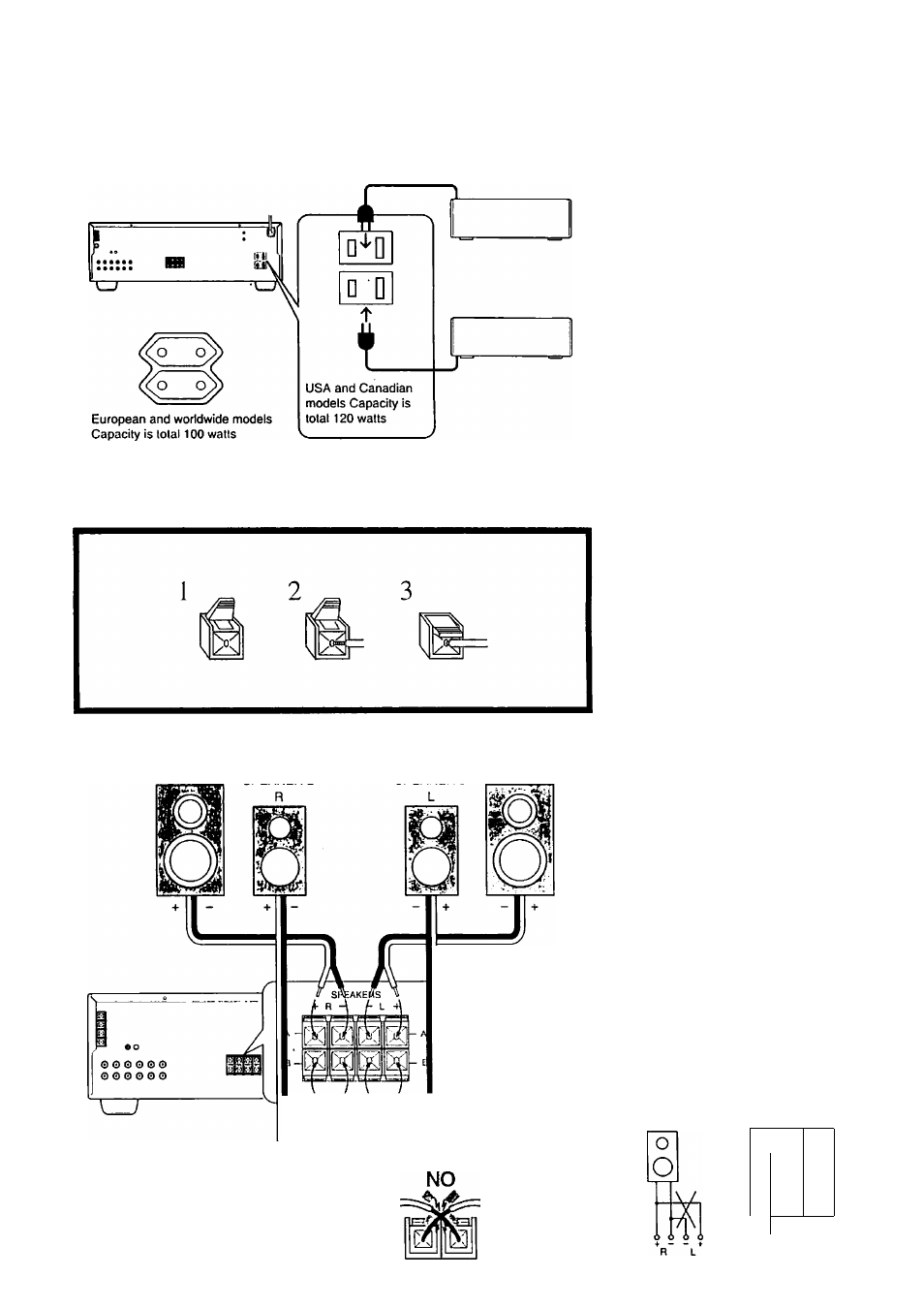

Making system connections
The power to components connected tq the
SWITCHED outlet is turned on and off
using the POWER switch (or the SYSTEM .
switch on models other than USA and
Canadian models) on the front panel and
remote control.
NOTE:
•
The shape, number and total capacity of
the AC outlets may differ according to
the model and the area where the unit is
purchased. 13e careful that other compo­
nents connected to this unit do not
exceed the capacity that is printed on
the rear panel above the AC outlets.
• (For the European model)
The remote control cannot be used
when the SYSTEM switch on the front
panel is set to OFF.
Connecting the speaker
cables
'
■V)“*
1. Open the lever.
2. Twist wire ends very, tight, and insert
the wire.
3. Clo.se the lever.
Before making any connections, please
refer to the explanation of “Speaker imped­
ance".
SPEAKER A
R SPEAKER B SPEAKER B
SPEAKER A
L
wu
CAUTION:
^ SPEAKER IMPEDANCE
A or B:
4 ohms min./speaker
A-r B;
8 ohms min./speaker
Note:
To prevent damage to circuitry,
never short-circuit the positive (+)
and negative (-) speaker wires.
Speaker Impedance
The load impedtincc of each speaker sys­
tem connected to this unit must be at least 4
ohms. (If using only A or only B, 4 ohms
min.; if A and B, 8 ohms min.)
You can connect two separate pairs of
speaker systems.
Please connect each speaker according to
the illustration, observing the correct con­
nections for R. L, and -.
•
Do not u.se unnecessarily long or
extremely thin speaker leads. If the DC
resistance of the s()eaker leads is too
high, the damping factor will decrease,
adversely affecting the sound quality.
• When using only one .speaker or when
you wish to li.stcn to monaural (mono),
the single spetiker should never be con­
nected in parallel to both the right and
left channel terminals at the same time.
0 o
C) O
11
“A
1 o c
♦ -
R
