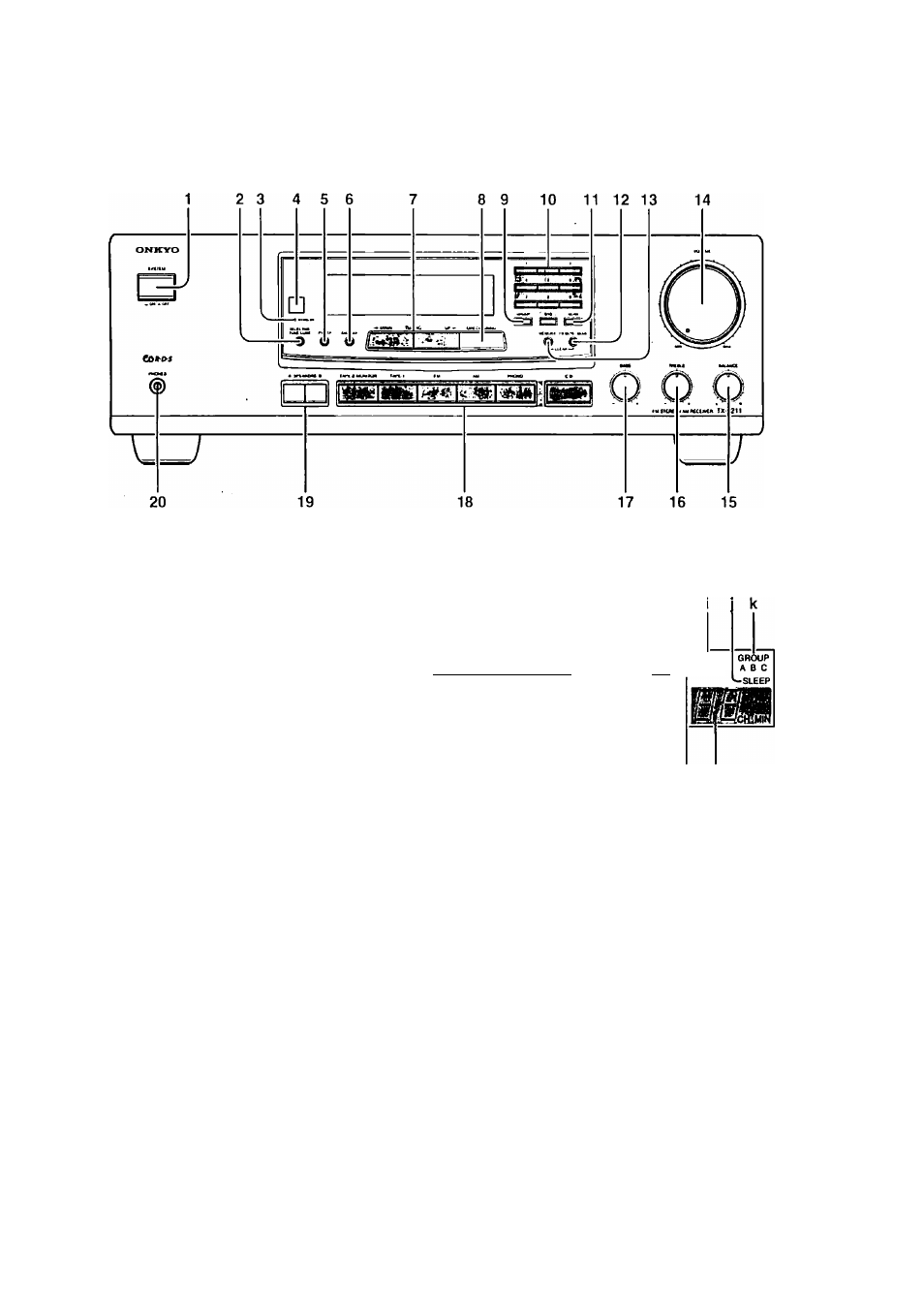

Control positions and names
other than USA & Canadian model
USA and Canadian model
1
Display
ЛГгт-тА P R
BF r STEREO
MODEST, MODE
[ЕНП^ЕШЗ
Bini' ПЕНЕ!
g h
SPEAKERS A 8 AUDIO MUTE FM MUTE ► TUNED < MEMORY
' h T-2 monitor ! IsTcl ON OFF ^STEREO ^-tlBia
ÌIÉ iWiHWl
mi mi inM miMm
/zi^/
m I
For more information about buttons or
knobs, turn to the page number listed in [ ].
1. POWER (or SYSTEM) switch
112J
2. SELECTIVE I'ONE CONT
button [13]
3. STAND-BY indicator |12|
4. Remote sensor [5]
5. P l'YAl'P button [19]
(Only for European and some
other models)
6. DISPLAY button [19]
(Only for European and some
other models)
7. ◄ DOWN, UP ► TUNING
buttons [15]
8. DIRECT TUNING button [15]
9. GROUP button [16,17] b.
10. Number buttons [15-17]
11. SCAN button [17,19] c.
12. FM MUTE/MODE button [16,17] d.
13. MEMORY button [16, 17] e.
14. VOLUME knob] 13] f.
15. BALANCE control knob [13] g.
16. TREBLE control knob [13] h,
17. BASS control knob ]13] i.
18. Input selector buttons 113] .]■
19. SPEAKERS A/B IniUons [ 13] k,
20. 1 leadphouejack]14] 1
: Display
- - — - # —
If (here is a protective Him on the surface R'
of the display which is making it dilTicult
to read the display, remove it.
a. APR indicators
T-2 MONITOR (Tape-2
Monitor) indicator
Speaker selector indicators
AUDIO MUTE indicator
Selective Tone Control indicator
FM MUTE ON/OEF indicator
STEREO indicator
TUNED indicator
MEMORY indicator
SLEEP indicator
(¡ROUP indiciitors
Preset station/sleep timer
displiiy
RDS indicator (Only for
luiropean atid some other models)
Multi function display
