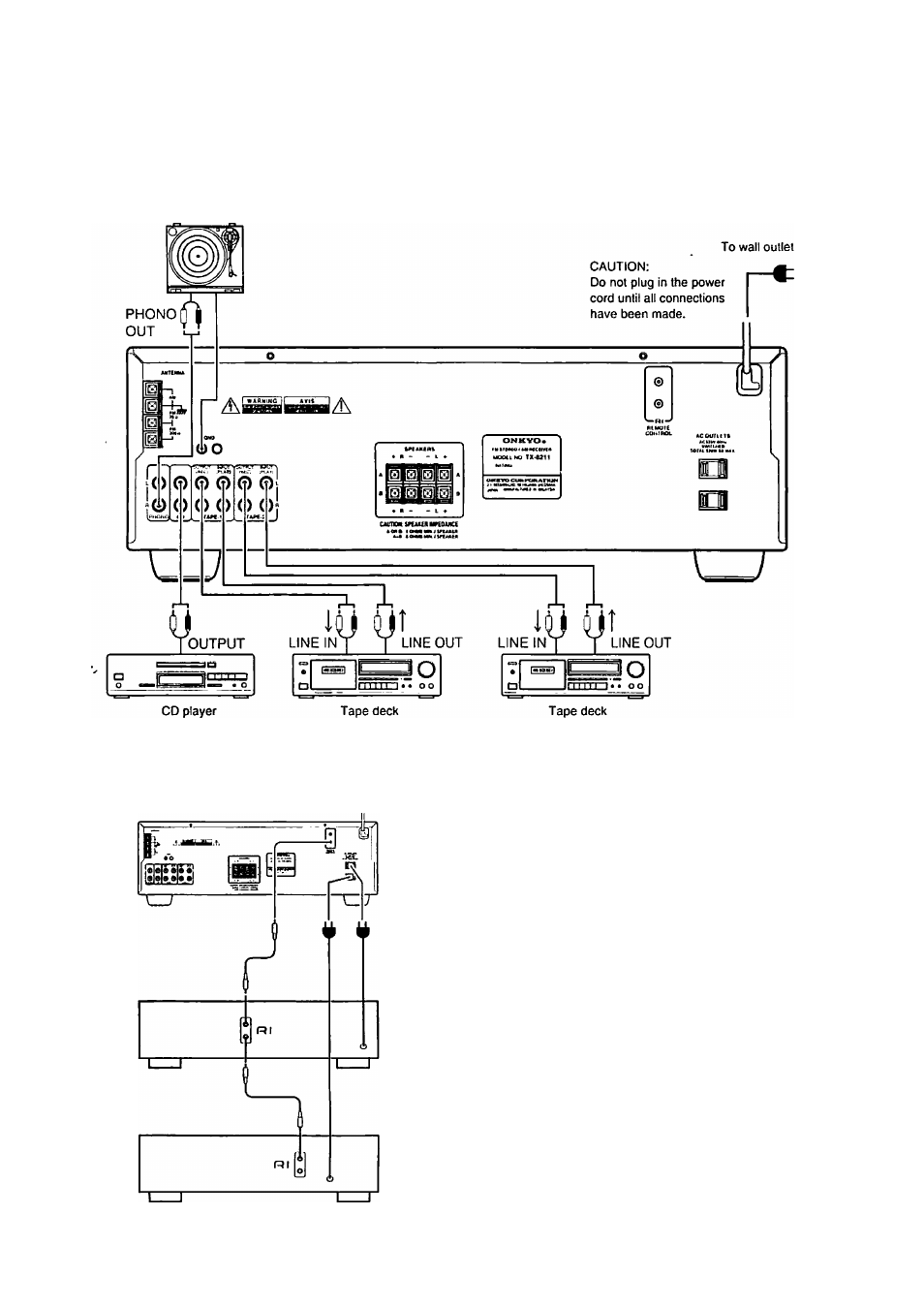

Making system connections
Refer to the insiniciion manual of each component when making connections.
On each pair of connectors, the connector (red and marked R) corresponds to the right
channel and the connector (white and marked L) to the left channel.
Turntable
TX-8211
Cassette tape decks and a compact disc player that are equipped
with an Onkyo Rl connector can be operated using the remote
control included with this unit.
To enable remote control operation of other components, connect
the remote control cable as shown at the left.
NOTK:
• To enable proper remote control operation, both the RI cables
and the audio cables must be connected to the units.
• This unit’s remote control cannot be used to control Onkyo
tnrntable.
• An RI remote control cable equipped with 1/8" (3.5 mm) mini
jacks is included with any other component installed with an
Rl connector.
8
