About the Nortel IP Phone 1120E

• Accessory Expansion Module port to connect the Expansion Module

for IP Phone 1100 Series (Expansion Module)

For information about using the Expansion Module, see the Expansion
Module for IP Phone 1100 Series User Guide (NN43130-101).

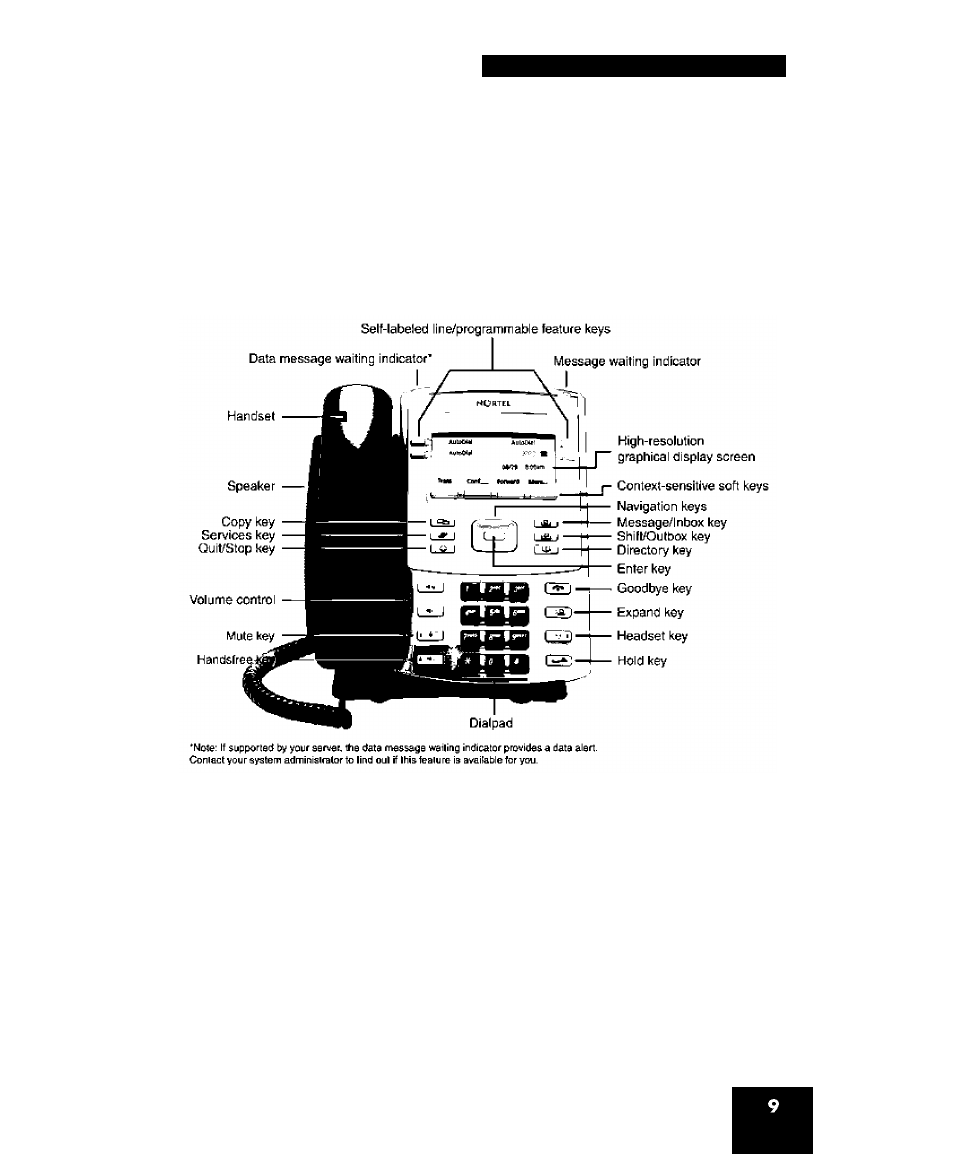

Figure 2 shows the IP Phone 1120E.

Figure 2: IP Phone 1 1 2 0 E

Telephone controls

This section describes the controls on the IP Phone 1120E. In some
geographic regions, the IP Phone 1120E is offered with key caps that

have English text labels. In this document, text in parentheses indicates

the labels that appear on the key caps, for example, (Services).
