SERVICE AND ADJUSTMENTS

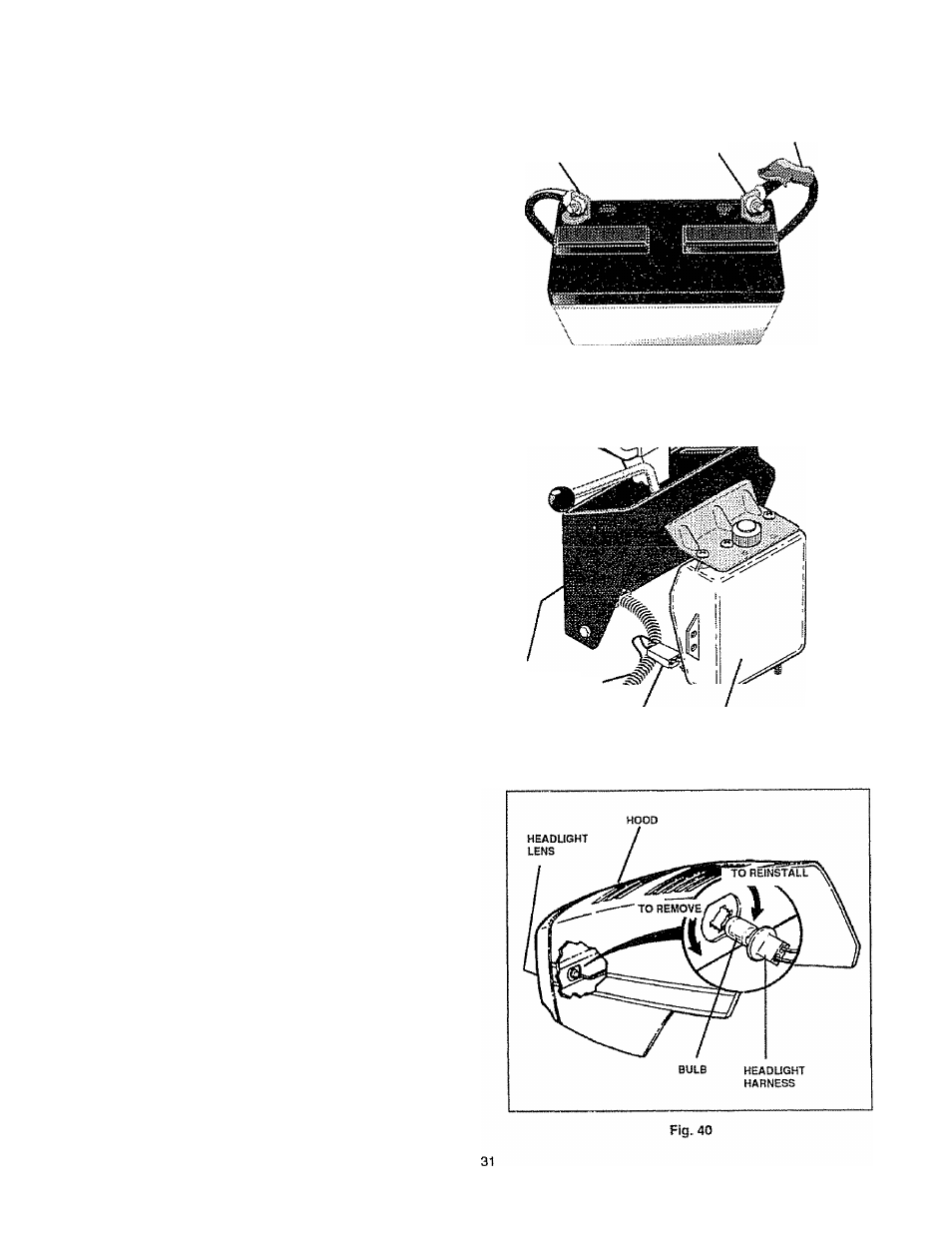

TO START ENGINE WITH A WEAK
BATTERY (See Rg.38)
A CAUTION: Lead-acid batteries generate
explosive gases. Keep sparks, flame and
smoking materials away from batteries.
Always wear eye protection when around
batteries.
1( your battery is too weak to start the engine, it should be
recharged. If "Jumper cables" are used for emergency starting
follow this procedure.
IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12
VOLT NEGATIVE GROUNDED SYSTEM, OTHER VEHICLE
MUST ALSO BE A 12 VOLT NEGATIVE GROUNDED
SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO
START OTHER VEHICLES
TO ATTACH JUMPER CABLES -
9 Push battery boot away from POSITIVE {+) terminal,
9 Connect RED (+) cable to POSITIVE {+) terminal on
battery, taking care not to short against chassis.
9 Connect BLACK (-) cable to NEGATIVE {-) terminal on
battery.
TO REMOVE CABLES. REVERSE ORDER -
® BLACK (-) cable from battery
® RED (+) cable from battery,
TO REPLACE FUSE (See Fig. 39)
e Raise hood.
9 Locate fuse holder under dash.
® Remove fuse and replace with a 15 amp automotive­
type plug in fuse (see REPAIR PARTS section for more
information).
TO REPLACE HEADLIGHT BULB
(See Fig. 40)
® Raise hood. NOTE: Do not remove plastic headlight lens
when replacing headlight bulb
e Turn headlight harness (holding bulb) 1/4 turn counter­
clockwise and remove,
9 Pull bulb out (do not unscrew) Push in new bulb
9 Replace headlight harness and turn 1/4 turn clockwise to
lock In place.
9 Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run poorly,
stop running, or prevent it from starting,
• Check wiring. See electrica! wiring diagram in the REPAIR
PARTS section of this manual
NEGATIVE H
TERMINAL
POSITIVE (+)
TERMINAL '
RUBBER BOOT
Fig. 38
DASH
WIRE HARNESS
FUSE HOLDER FltEL TANK
FIG. 39
