OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
TRACTOR

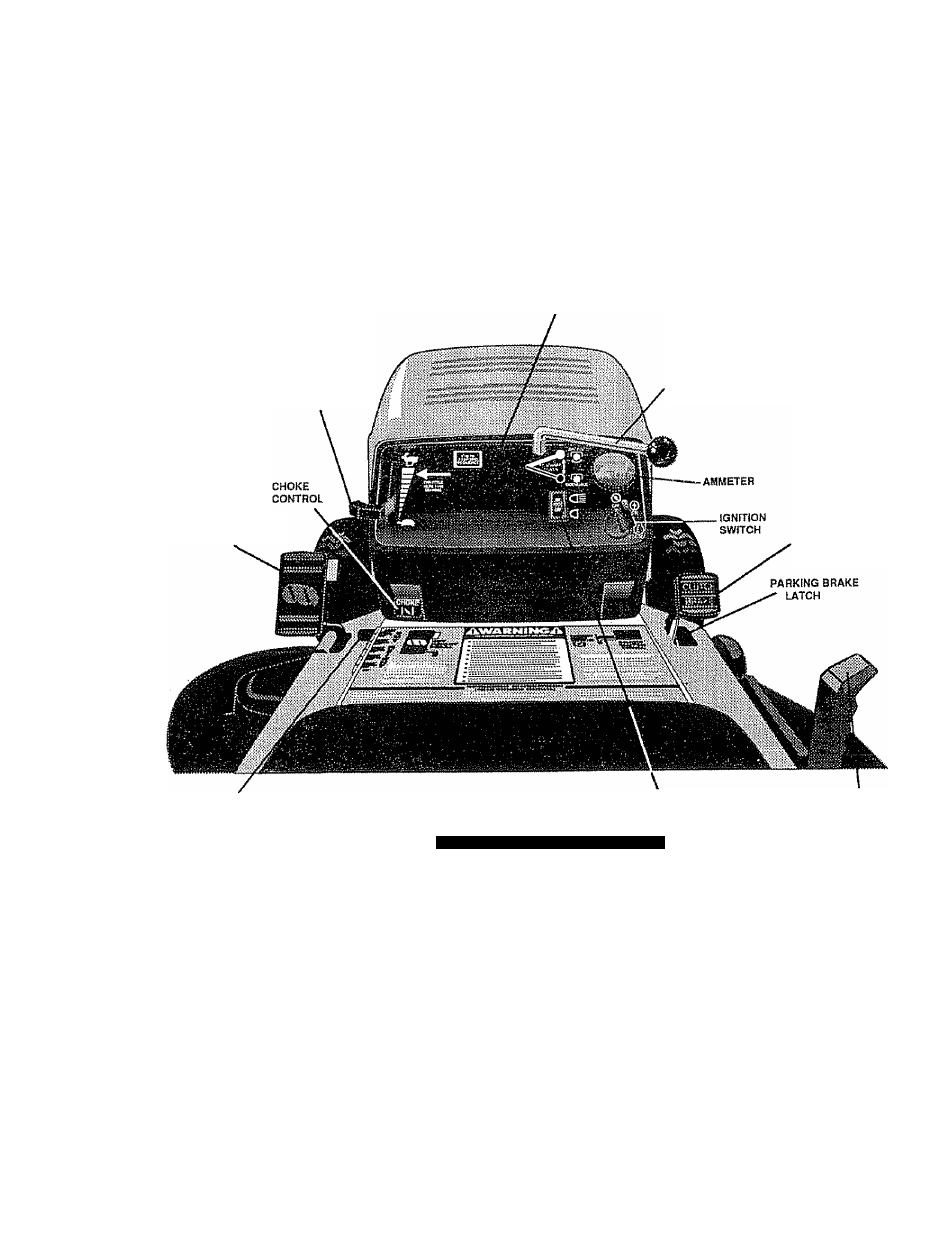

Compare illustrations {see Fig. 10) with your tractor to familiarize yourseil with locations oi various controls and adjustments.
Save this manual for future reference,
CHECK STARTING
SEQUENCE
INDICATOR
THROTTLE
CONTROL
LEVER
ATTACHMENT
CLUTCH LEVER
CUTTING HEIGHT
ADJUSTMENT PEDAL
BRAKE-CLUTCH
PEDAL
MEMORY ROD
HEADLIGHT SWrrCH SHIFT CONTROL
LEVER
VIEW FROM THE OPERATORIS;S|A^^^^^^
FIG. 10
SEARS LAWN TRACTORS conform to the safety standards of THE AMERICAN NATIONAL STANDARDS INSTITUTE
ignition Switch - Used to start and stop engine.
Choke Control - Used to start a cold engine
Throttle Control Lever - Controls speed of engine
Headlight Switch - Turns headlights on or off.
Ammeter - Shows battery is being charged when engine is
running.
Check Starting Sequence Indicator - Indicator lights if
wrong starting procedure was used.
Brake-Clutch Pedal - Used to clutch and brake
tractor and start engine.
Shift Control Lever - Used to select ground speed ranges
and direction of motion (forward-neutrai-reverse).
Parking Brake Latch - Used to lock brake-clutch pedal down
in park position.
Cutting Height Adjustment Pedal - Used to change height
of cut.
Memory Rod - Used with Cutting Height Adjustment Pedal to
select cutting height
Attachment Ciutch Lever - Used to engage or disengage
power to mower deck blades.
