ASSEMBLY
9
Underneath the footrests of the tractor, remove hairpin
cotters and flat washers from the left and right hand
hanger pins and lay aside (see Fig,
7A).

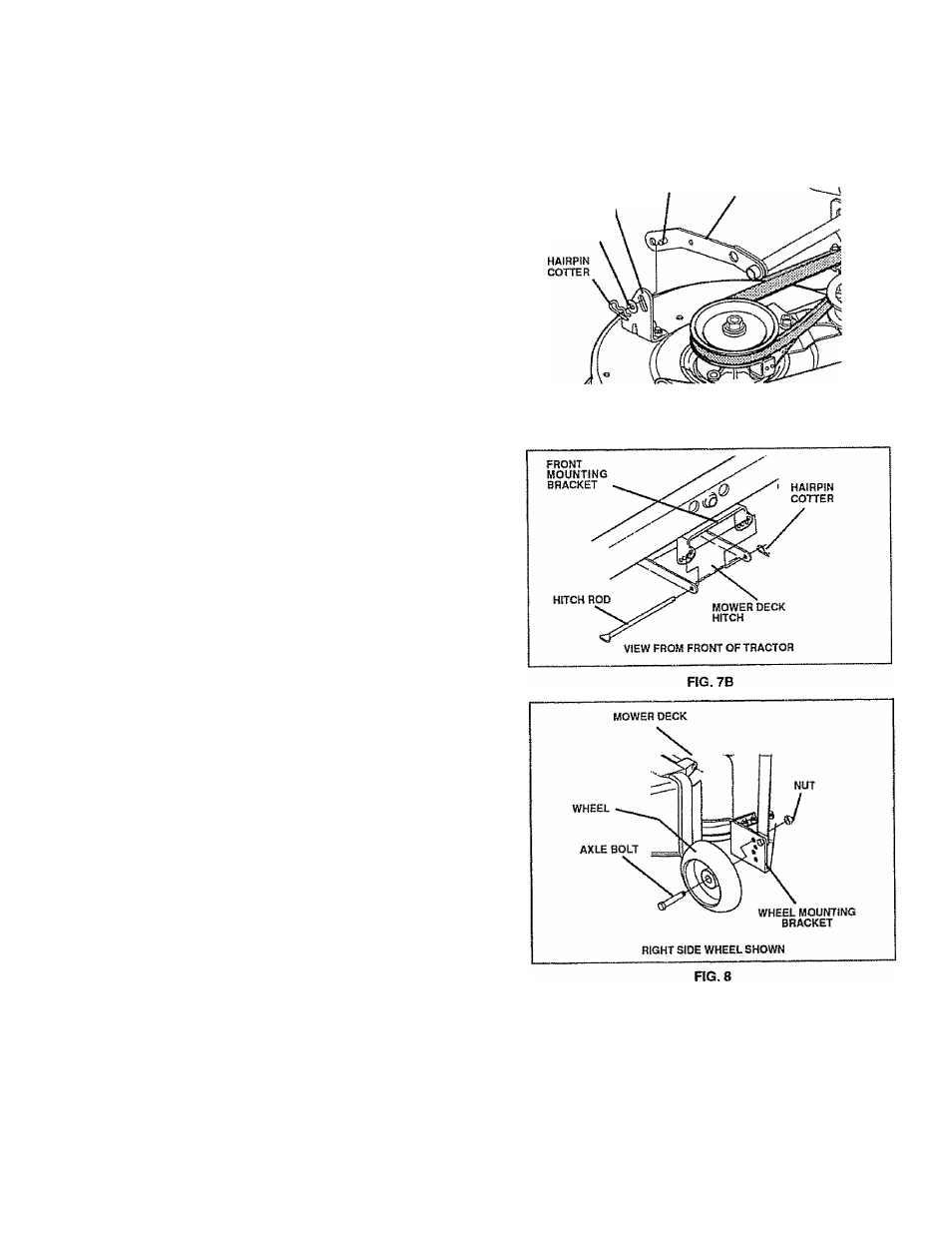

® Remove hitch rod and hairpin cotter from front mounting
bracket and lay aside (see Fig. 7B)
® Align holes in the mower deck hitch with the top set of
holes in the front mounting bracket and reinstall the hitch
rod and hairpin cotter {see Fig 7B),
»
Placé cutting height adjustment pedal in lowest positiorr
by moving memory rod to position 1 artd pressing pedal
latch to release cutting height adjustment pedai, NOTE:
Be sure left and right rear lift arms are to the inside of the
ieft and right deck lift brackets (see Fig. 7A).
@ Lift deck sligtrtiy and flex left rear hanger pin inward fo
snap hanger pin into left deck lift bracket siot Secure
hanger pin in place with flatwasher and hairpin cotter re
moved earlier,
a Lift deck slightly and flex right rear hanger pin inward to
snap hanger pin into right deck lift bracket slot. Secure
hartger pin in place with flatwasher and hairpin cotter
removed earlier (see Fig, 7A)
» Check mower deck leveling and adjustment as required
(See TO LEVEL MOWER DECK in SERVICE AND
ADJUSTMENTS section of this manual)
CHECK FOR PROPER POSITION OF ALL
BELTS
e See figures shown for replacing motion and mower blade
drive
belts
in
SERVICE
AND
ADJUSTMENTS
section of this manual. Verify belts are routed correctly
TO ADJUST MOWER DECK WHEELS
(See Fig. 8)
Mower deck wheels may be adjusted to one of four positions.
Always adjust both wheels to same position. NOTE: Do Not
adjust wheels to support mower deck whiie mowing or
uneven cutting will result
a
Park tractor on a firm, level surface, such as a driveway
or garage fioor.
a Set cutting height adjustmértî to lowest anticipated
cutting height. Deck wheels should be 1/4" off ground, if
not, adjust as follows;
a
Remove axle bolt and nut holding each wheel to
wheel mounting bracket with two 9/15" wrenches,
a Change wheel height adjustment by relocating each
wheel into desired hoie of wheel mounting bracket,
a
Relnstail bolt and nut on each side and secure nuts
tightly,
CHECK BRAKE SYSTEM
a
After you learn how to operate your tractor, check opera
tion of tractor brake (see BRAKE OPERATION in
CUSTOMER
RESPONSfBlLITIES
section
of
this
manual)
DECK LIFT
BRACKET
(BIGHT SIDE!
FLATWASHER
HANGER PIN
HEAR LIFT ARM
(RIGHT SIDE)
VIEW FROM RIGHT SIDE OF TRACTOR
FIG,, 7A
REINSTALL CHARGED BATTERY
(See Fig. 9)
a
Raise seat and place battery back in tractor
with positive (+) terminal toward right side of tractor.
NOTE:
Be sure ignition key is in OFF position,
a
Place battery hold-down bracket through slot in back of
console.
NOTE:
Turn bracket to side, place through slot
in console and rotate upright .
