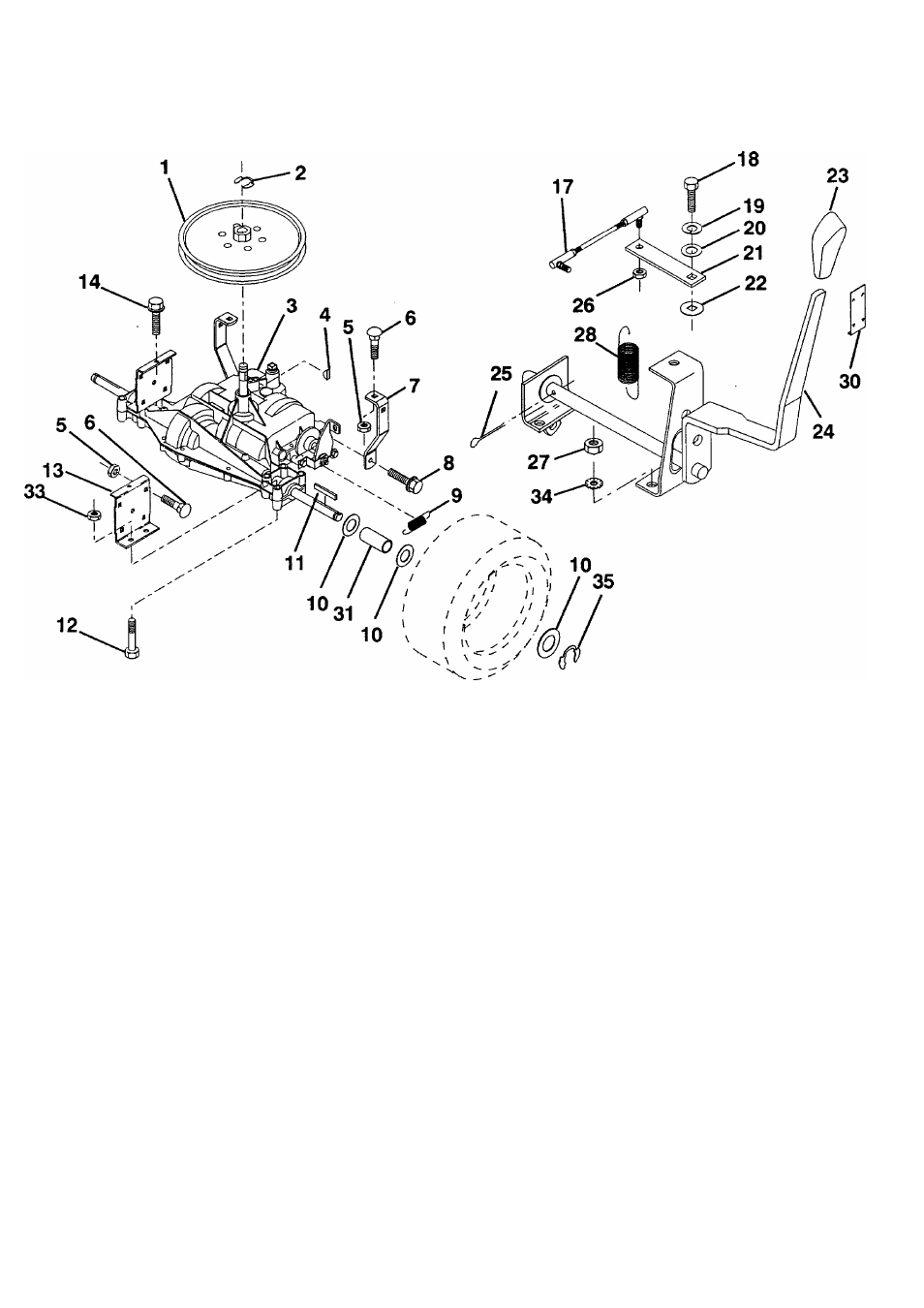

TRANSAXLE
REPAIR PARTS
12 HP 36" LAWN RIDER - - MODEL NUMBER 917.257462
KEY PART
NO. NO.
1 123385X
2 12000028
3 123655X
4 STD580025
5 STD541431
6 STD533107
7 123378X
8 17490512
9 110422X
10 121749X
11 123583X
12 STD523727
13 123377X
14 17490508
17 123632X
18 71040412
DESCRIPTION
Pulley
Ring, Retainer
Transaxle, Foote/Dana, 6 Speed,
Model Number 143.4360-18
* Key, Woodruff #9
* Nut, Crownlock 5/16-18
* Bolt, Carriage 5/16-18 UNC x 3/4
Strap, Torque
Screw, Hex, Thd. Roll.
5/16-18x3/4
Spring, Brake
Washer 25/32 x 1 -1/4 x 16 Gauge
Key, Square
* Bolt, Hex 3/8-16x2-3/4
Bracket, Transaxle
Screw 5/16-18x1/2
Link, Shift
Bolt, Hex, Fin. 1/4-28
X 3/4 Gr. 8
KEY PART
NO. NO.
DESCRIPTION
19 STD551125 * Washer, Lock 1/4
20 19091210 Washer 9/32 x 3/4 x 10 Gauge
21 123539X Arm, Shift
22 105701X Washer, Shift Plate
23 12201IX Knob, Golf Club
24 128202 Handle, Shift
25 STD561210 *Pin, Cotter 1/8x1
26 STD541531 * Nut, Hex, Nylon 5/16-24
27 STD541431 *Nut, Keps 5/16-18
28 128085 Spring, Extension
30 123692X Retainer, Knob _
31 123409X Spacer
33 STD541437 * Nut, Crownlock 3/8-16
34 11050500 Washer, Lock, External Tooth 5/16
35 STD581075 * E-Ring
* STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
