REPAIR PARTS

12 HP 36" LAWN RIDER - - MODEL NUMBER 917.257462

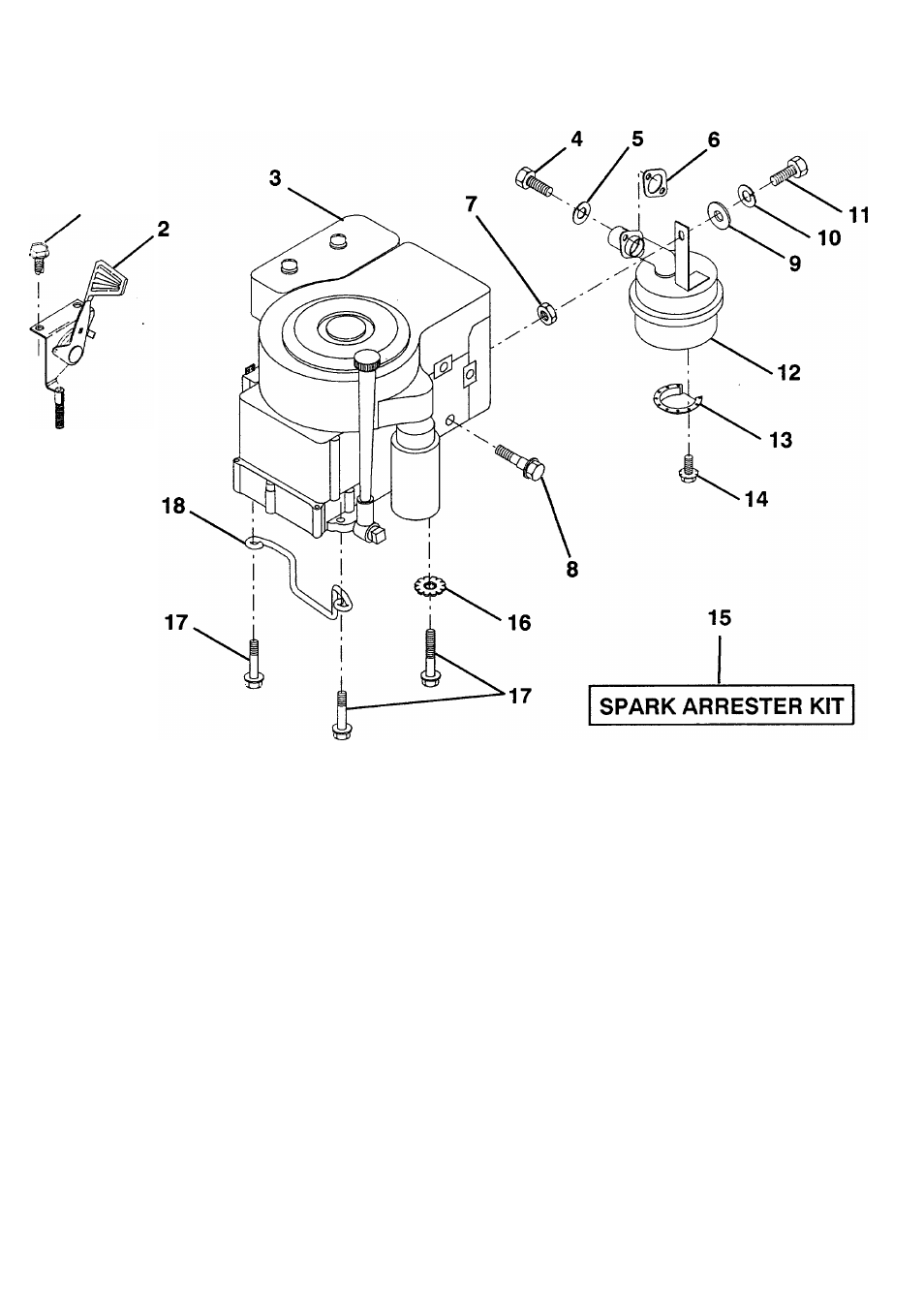

ENGINE/THROTTLE

KEY PART

KEY PART

NO. NO.

DESCRIPTION

NO. NO.

DESCRIPTION

1

17720408

Screw, Hex, Thread Cutting

11

STD522507

* Bolt, Hex, Fin. 1/4-20 UNC x 3/4

1/4-20x1/2

12

124097X

Muffler

2

132758

Control, Throttle

13

101326L

Deflector, Muffler

3

131951

Engine, Briggs & Stratton, 12 HP,

14

17030808

Screw, Hex, Spiderlock 8x1/2

Model 283707,Type 0217-01

ABTPS

4

71070512

Screw, Hex Head Cap

15

121851X

Kit, Spark Arrester (Optional)

5/16-18x3/4

16

STD551237

* Washer, Lock, External Tooth 3/8

5

STD551131

* Washer, Lock, Heavy Helical Spring

17

17490624

Screw, Hex Washer Head, Thd.

5/16

Roll. 3/8-16x1-1/2

6

125593X

Gasket, Exhaust

18

126636X

Keeper, Ground Drive Belt

7

STD541031

* Nut, Hex, Fin. 5/16-18

8

121094X

Bolt, Shoulder

9 STD551031 Washer 5/16x3/4x16 Gauge

10 STD551125 * Washer, Lock, Heavy Helical Spring

1/4

* STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION

38
