SERVICE AND ADJUSTMENTS

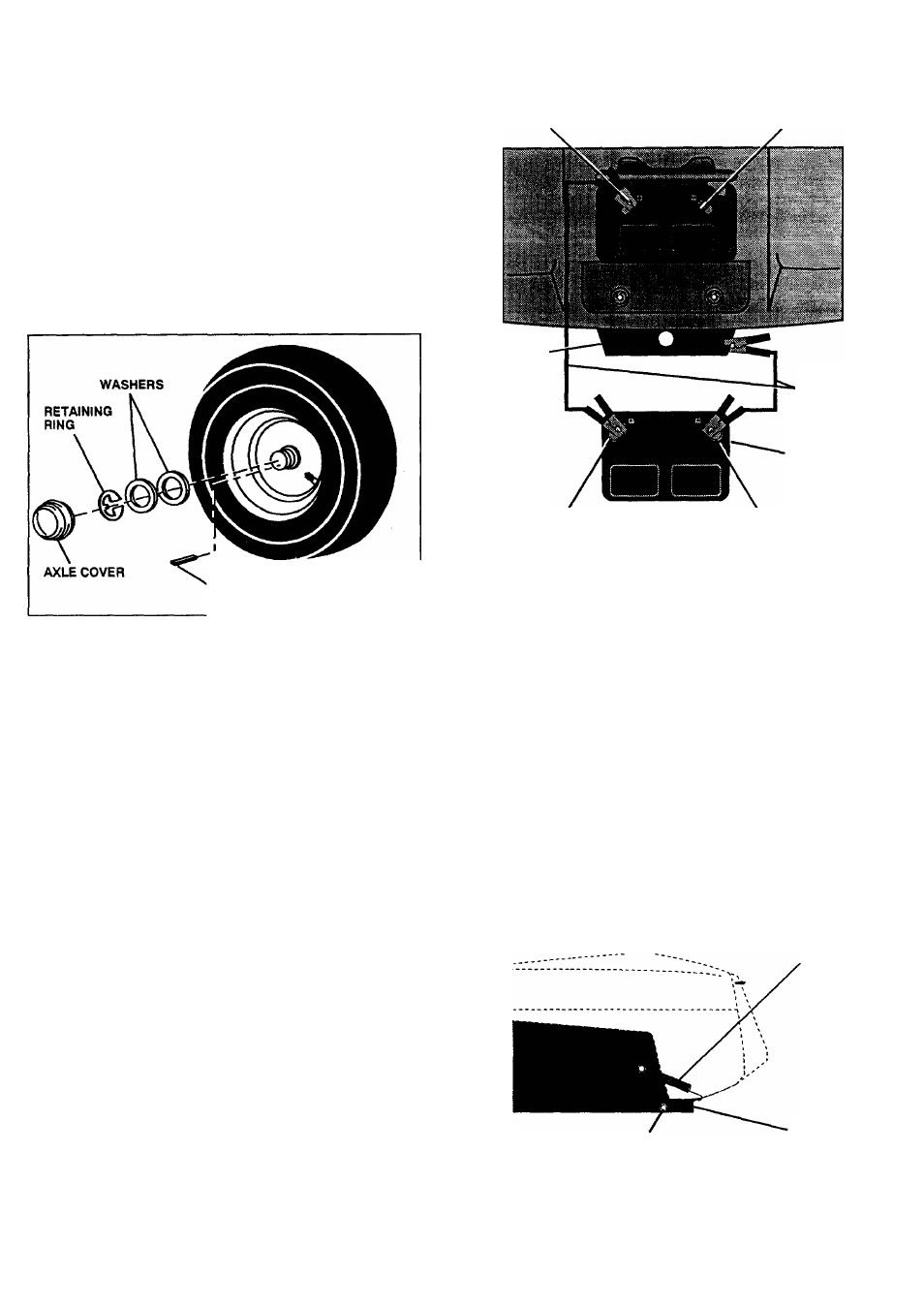

TO REMOVE WHEEL FOR REPAIRS (See

Fig. 29)

Block up axle securely.

Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

Repair tire and reassemble.

On rear wheels only; align grooves in rear wheel hub

and axle. Insert square key.

Replace washers and snap retaining ring securely in

axle groove.

Replace axle cover.

• SQUARE KEY

(REAR WHEEL ONLY)

FIG. 29

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 30)

A

CAUTION: Lead-acid batteries gener­
ate explosive gases. Keep sparks, flame

and smoking materials away from bat­

teries. Always wear eye protection
when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT:

YOUR UNIT IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER
VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR
BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

Connect one end of the BLACK cable to the NEGA­

TIVE (-) terminal of fully charged battery.

Connect the other end of the BLACK cable to a good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from left side of chassis and fully

charged battery.

RED cable last from both batteries.

POSITIVE TERMINAL

NEGATIVE TERMINAL

CHASSIS-

-CABLES

CHARGED
BATTERY

POSITIVE TERMINAL

NEGATIVE TERMINAL

FIG. 30

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located next to the battery box, accessible

from left rear wheel area.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run
poorly, stop running or prevent it from starting.

Check wiring. See the eiectricai wiring diagram in the

Repair Parts section of this manual.

TO REMOVE HOOD (See FIG. 31)

With hood closed, remove hood spring from hole in grill

strap.

Remove left side and right side pivot.

Lift hood off unit.

To reassemble hood, reverse above procedure.

HOOD
SPRING

RIGHT SIDE PIVOT SCREW

PIVOT

BRACKET

21

FIG. 31
