Sears 917.257462 - Manual (Page 37)

REPAIR PARTS
12 HP 36" LAWN RIDER - - MODEL NUMBER 917.257462

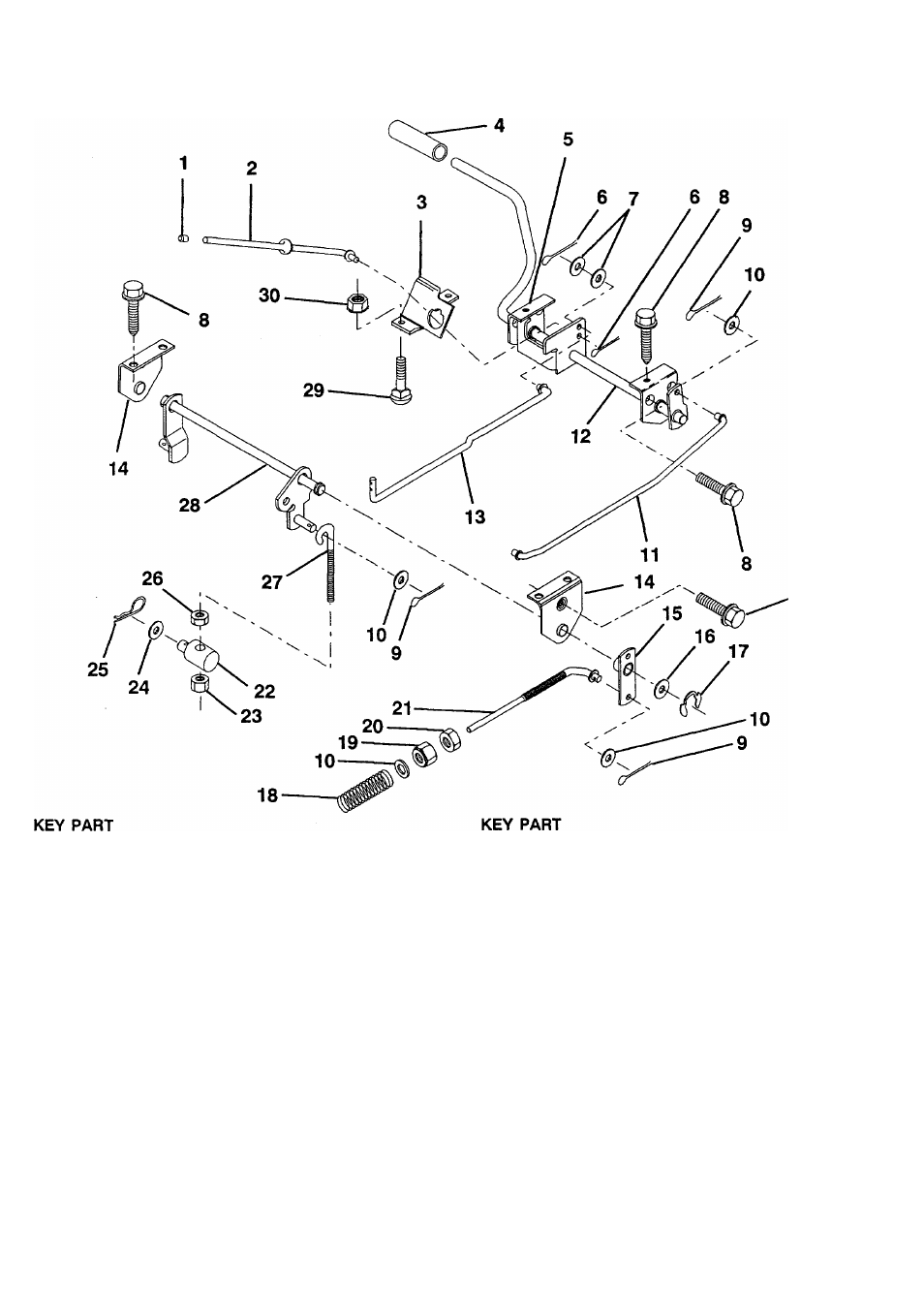

BRAKE / REAR MOWER LIFT ASSEMBLY
8
NO. NO. DESCRIPTION
1 124236X Cap, Plunger
2 123436X Rod, Parking Brake
3 123437X Bracket, Parking Brake
4 8883 R Cover, Pedal
5 122504X Bracket, Clutch/Brake Pedal, LH
6 STD560907 * Pin, Cotter 3/32 X 3/4
7 STD551037 * Washer 13/32 x 5/8 x 16 Gauge
8 17490508 Screw, Hex, Thd. Roll.
5/16-18x1/2
9 STD561210 * Pin, Cotter 1/8 X 3/4
10 STD551037 * Washer 13/32 x 13/16 x 16 Gauge
11 123543X Rod, Front Brake
12 129567 Assembly, Clutch/Brake Pedal
13 123394X Rod, Clutch
14 121978X Bracket, Lift, Shaft
15 123641X Assembly, Brake, Pivot, Arm
16 19251816 Washer 25/32 x 1-1/8 x 16 Gauge
NO. NO.
17 12000034
18 106888X
19 STD541237
20 73680600
21 131460
22 127378
23 73680600
24 19132012
25 4921H
26 STD541437
27 127369
28 127358
29 STD533107
30 STD541431
DESCRIPTION
Ring, Klip
Spring, Brake Rod
* Nut, Hex, Jam 3/8-16 UNC
Nut, Crownlock 3/8-16 UNC
Rod, Rear Brake
Trunnion, Lift
Nut, Crownlock 3/8-16 UNC
Washer 13/32 xt»1/4x 12 Gauge
Spring, Retainer
* Nut, Centerlock 3/8-16 UNC
Link, Threaded
Assembly, Rear Mower Lift
* Bolt, Carriage 5/16-18 UNC x 3/4
*Nut,Keps 5/16-18 UNC
* STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
37
