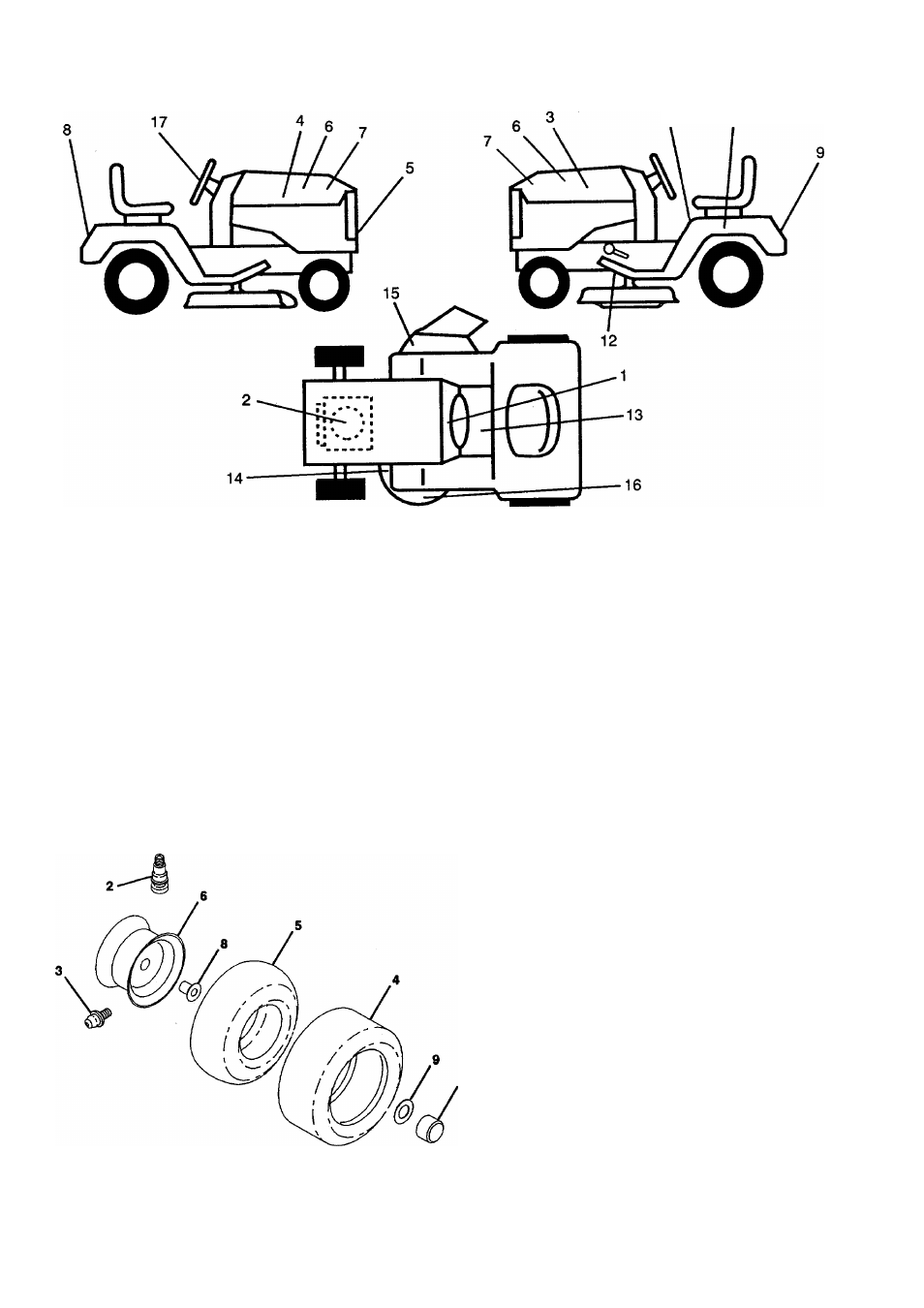

DECALS

REPAIR PARTS

12 HP 36" LAWN RIDER - - MODEL NUMBER 917.257462

10

11

KEY PART

NO. NO.

1 126712X

126685X
130622

130621
12624IX
126770X
108631X

8

125880X

9

127521

10 106974X

2

3
4

5

6

7

DESCRIPTION

Decal, Instruction, Engine

Decal, Engine

Decal, Stripe, Hood, LH.
Decal, Stripe, Hood, R.H.
Decal, Grill
Decal, Side Panel
Decal, II
Decal, Fender
Decal, USA
Decal, Caution

KEY PART
NO. NO.

DESCRIPTION

11

121549X

Decal, Caution, Battery

12

123408X

Decal, V-Belt Drive

13

126701X

Pad, Center

14

105814X

Decal, Mower Drive Belt

15

121343X

Decal, Danger

16

3713J

Decal, Rotating Blades

17

125879X

Decal, Steering Wheel Insert

_ .

101539X

Sheet, Instruction, 15° Slope

- -

130147

Manual, Owner's

WHEELS & TIRES

KEY PART

NO. NO.

1 59192

2 65139
3

278H

4

12341 OX
106230X

5

59904

8134H

6

122394X361
123412X361

7

104757X

8 9040H
9

121748X

DESCRIPTION

Cap, Valve
Stem, Valve

Fitting, Grease (Front Only)

Tire, Front
Tire, Rear
Tube, Tire, Front

(Not Supplied, Service Item Only)

Tube, Tire, Rear«,

(Not Supplied, Service Item Only)
Rim, Front
Rim, Rear

Cap, Axle (Front and Rear)

Bearing, Flange (Front only)

Washer 25/32 x 1-5/8 x 16 Gauge

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
