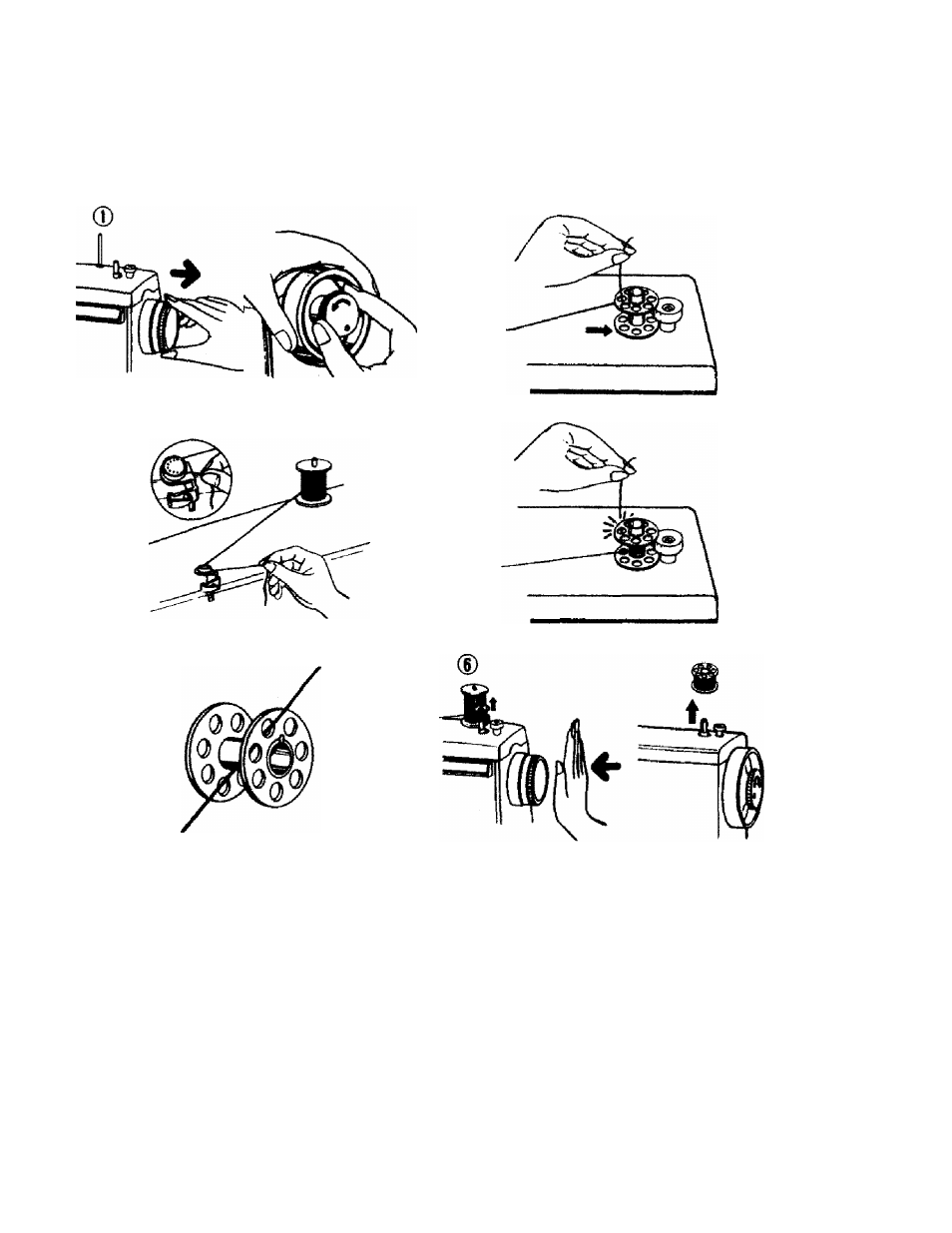

WINDING BOBBIN
1.
Release clutch by pulling hand wheel or
turning dutch knob toward you.
2. Draw thread from spool through bobbin
winder tension disc as shown.
^
3.
Pull end of thread through hole in bobbin
as shown.
4.
Push bobbin winder shaft to far left
position, if It is not already there. Place
bobbin onto shaft with end of thread
coming from top of bobbin. Push bobbin
winder shaft to right until it clicks. Hold
onto end of thread.
5.
Start machine. Jhe thread that is held
will snap. Bobbin will cease turning when
completely filled. Push shaft to left to
remove bobbin.
6,
Push In hand wheel or tighten clutch knob
and remove bobbin.
