ossembly

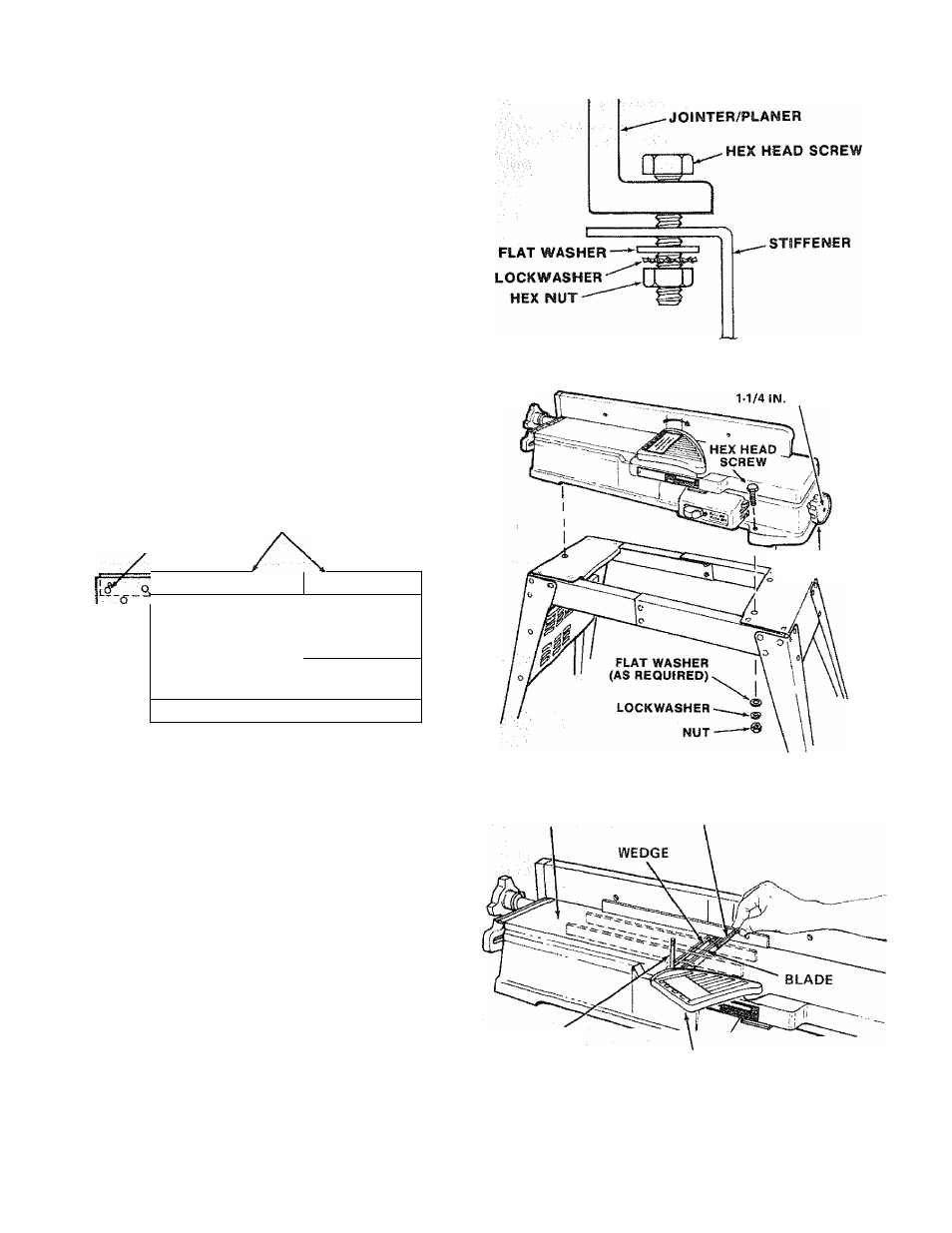

MOUNTING JOINTER-PLANER
1. From among the loose parts, find the following
hardware;
4 Carriage Bolt, 5/16-18 x 3/4
3 Hex Head Screws, 5/16-18 x 2
7 Lockwashers, 5/16 in. External Type
7 Washers, 11/32 ID
7 Hex Jam Nuts, 5/16-18
2 Cord Clips
1. Loosen FENCE LOCK KNOB. Tilt fence upward and
slide it toward the pulley,
2. Position machine on Leg Set and aligri mounting holes in
machine With holes in Leg Set letter coded "A". Mount
with tliree (3) 5/16^18 x 2" Long Hex Head Screws.
3. Placé a flat washer, a lock washer and a nut on each
screw frorn underneath the stand and tighten,
4. Place handwheel on shaft aligning flat surfaces on shaft
with flat surfaces on handwheel ... attach with 1-1/4 in.
screw. ;
1/4-20 TRUSS
HEAD SCREW
SIDE STIFFENER
a 0 [ 0 '■ CD
:
------
END STIFFENER .'.A"
i .. .
B
/
a 0 a
____
o
..o
o
o
o
o
MOTOR SUPPORT AT THIS END-
FENCE LOCK
KNOB
\
SCREW
DEPTH OF CUT
? HANDWHEEL
CHECKING CUTTER BLADES AND SCREWS
TOOLS NEEDED
5/32" and 1/8" Setscrew Wrenches (furnished with
Jointer).
Lead Pencil i
Short straight edge (or head of combination square)
1. Insert pencil in space at end of cutterhead to hold
cutterhead guard open.
2, Lower the infeed table with the Depth of Cut
Handwheel. , , :
3, Rest the straight edge on edge on the surface of outfeed
table so it extends across the opening between the
tables, at three positions; near each end and at the
middle of the cutter blade.
4. Rotate the cutterhead by grasping the 2" dia. driven
pulley and make sure each knife ticks (touches) the
straight edge at all three positions. If not, follow
procedure under "REPLACING CUTTER BLADES" on
ppg. 21 and 22.
OUTFEED TABLE
5/32 IN. SETSCREW
WRENCH
PENCIL
CUTTER GUARD
5. If a cutter blade adjustment is not required, check each
locking screw of each wedge (S/32" setscrew wrench)
and tighten if necessary. Hold the pulley while
tightening screws and be careful that your fingers do not
slip off the wrench."
