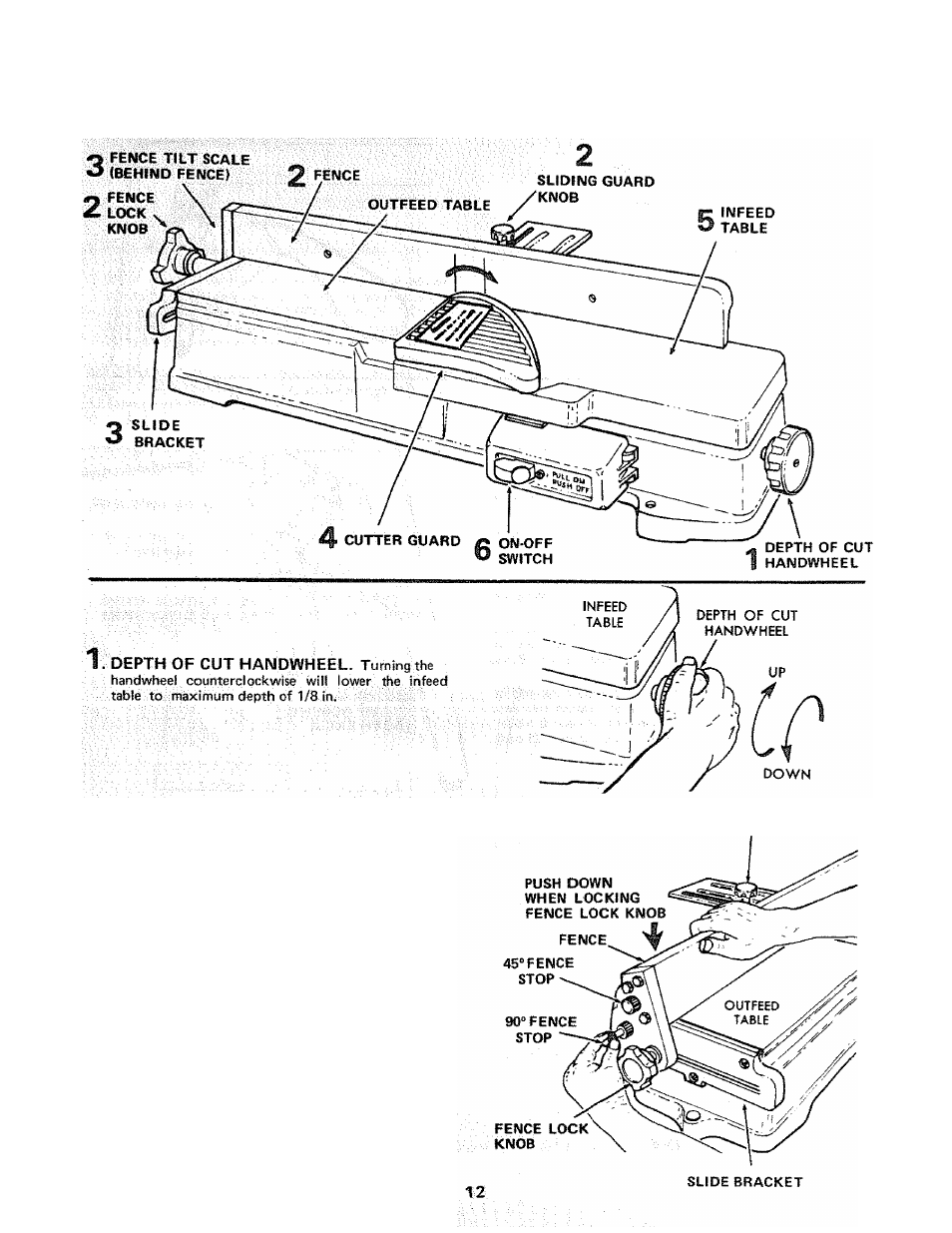

getting to
your foinfer-pioner
WARNING: FOR YOUR OWN SAFETY TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE MAKING ANY ADJUSTMENTS.
FENGi LOCKS AND STOPS.
The fence can be
moved across the Jointer to take full advantage of the
"sharpness" of the blades.
The fence should be positioned to the extreme right
(toward pulley) but not beyond the end of the blades.
Mostof the cutting {usually jointing) will be done with
the fence in this position. As the blades become dull,
the fence can be moved toward the left where the
blades are sharper.
To move the fence, loosen the Fence Lock Knob and
the Sliding Guard Knob and slide to desired position.
Make sure SLIDE BRACKET is even with surface of
OUTFEEDTABLE. If itis above or below the surface,
loosen screws and adjust it.
a. Alvvays tighten fence lock knob first to align fence,
then tighten sliding guard knob.
SLIDING GUARD KNOB
