general maintenance
Keep your jointer-planer clean. Put a carton or some kind
of a container underneath your jointer-planer to catch
the chips. The container should reach above the top of
the motor.
Do not allow pitch to accumulate on the tables, the
fence, the cutter guard, the cutter head or the knives.
Clean them with Craftsman Gum and Pitch Remover.
Apply a thin coat of automobile-type wax to the tables
and fence so that the wood slides easily while feeding.
Do not allow chips to accumulate on the underside of the
jointer-planer.
Frequently blow out any dust that may accumulate in
side the motor.
For motor maintenance, follow instructions furnished
with motor.
If power cord is worn or cut, or damaged in any way,
have it replaced immediately.

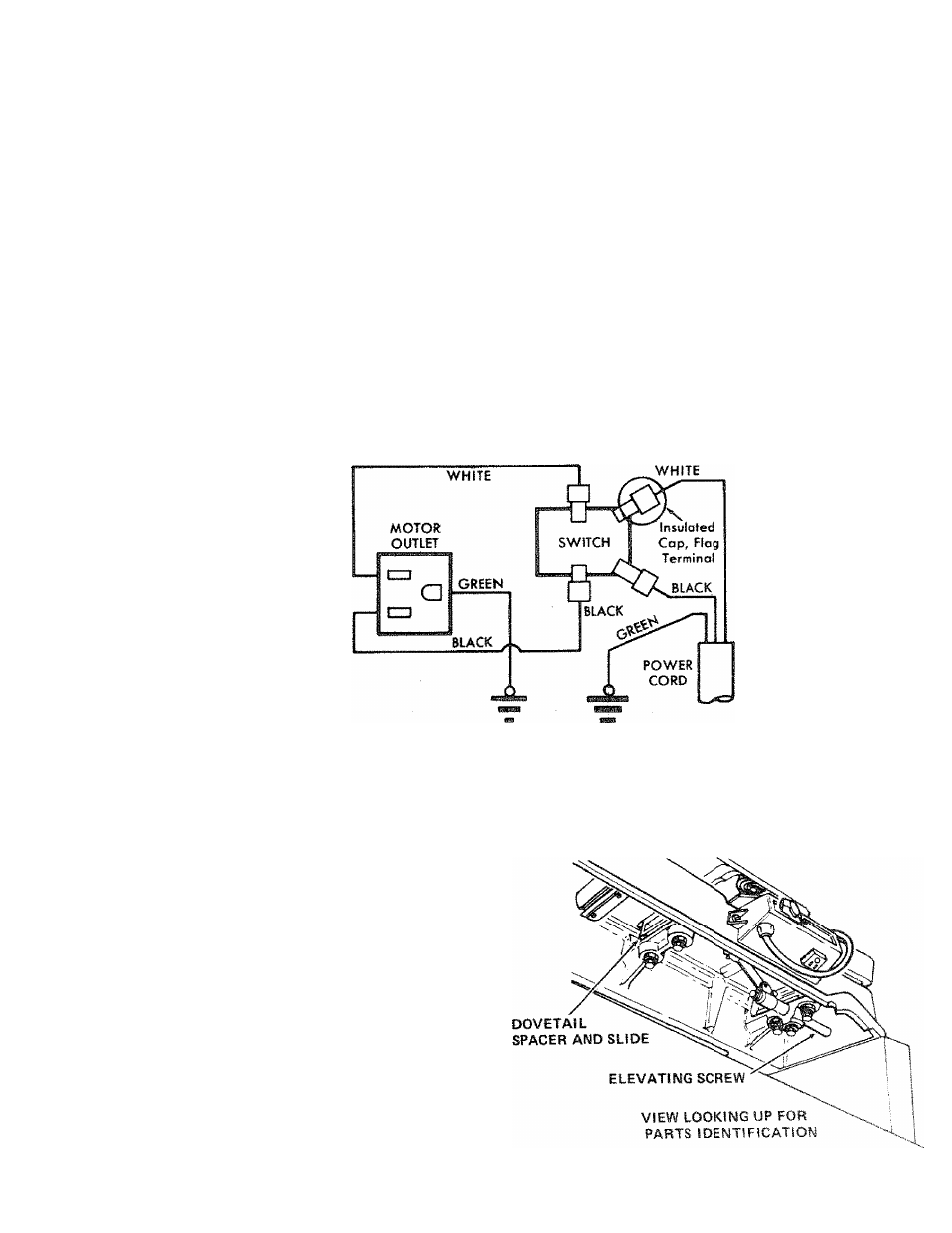

wiring diagram
lubrication
The BALL BEARINGS in this machine are packed with
grease at the factory. They require no further lubrication.
The following parts should be oiled occasionally with
SAE No. 20 or No. 30 engine oil.
1. Dovetail spacer and dovetail slide.
2. Elevating screw {first clean with Craftsman Gum and
Pitch RemoverL
