CRAFTSMAN 6 H.P. LAWN MOWER MODEL 247.370330
(Table continued from previous page)
Key
No.
Part No. Description
Key
No.
Part No. Description
63. 731-0981A Hub Cap Radial 73. 748-0377B Blade Adapter
64. 748-0381 Pawl RH 74. 731-1833 Mulching Cover
65. 748-0188B Pawl LH(not shown) 75. 731-1832 Side Discharge Chute
66. 738-0137A Shoulder Screw 76. 710-1237 Hex Scr. Sit. Wash. .620
67. 712-0414 Weld Nut 77. 751B213146 Casing Clamp, Throttle
68 . 16855 Ratchet Pawl Plate 78. J-19LM Spark Plug
69. 10622B Ratchet Spring
(Champion)
70. 710-1257 Hex Bolt
79. 143.976006 Engine
71. 736-0524A Blade Bell Support
80. 754-0460 Drive Belt
72. 742-0741 Mulching Blade
- 770-0753M Owner’s Manual (not shown)

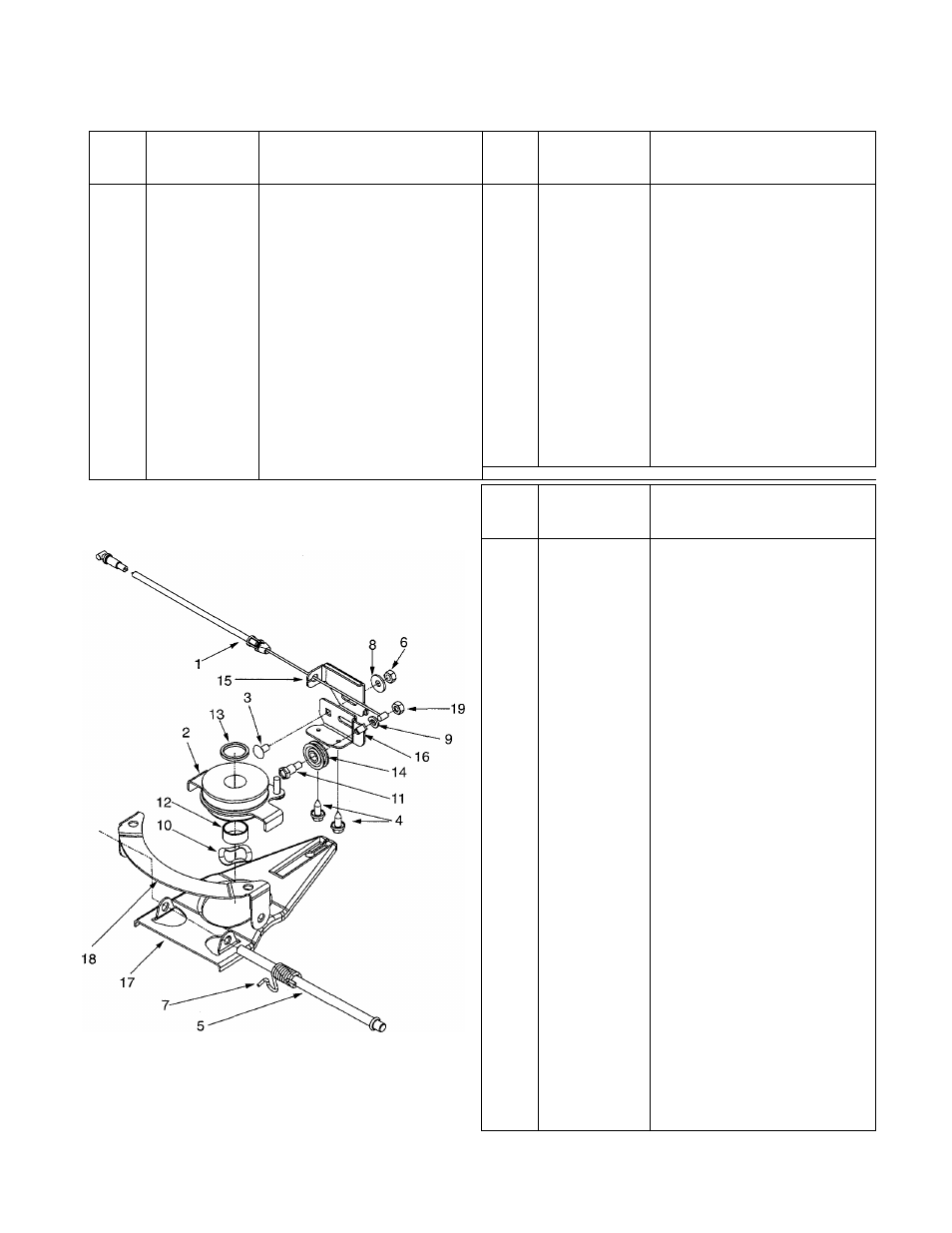

Six-Speed Pulley Assembly
Key
No.
Part No. Description
1. 746-0939 Six-Speed Cable
2. 656-0613 Pulley Ass’y. Multi Speed
3. 710-0167 Carr. Scr. 1/4-20 X . 50
4. 710-0896 Scr. AB 1/4-14 X . 625
5. 711-1114 Pivot Shaft
6. 712-0287 Nut 1/4-20
7. 732-0807 Torsion Spring
8 . 736-0270 Bell Washer .265 x .75 x .062
9. 736-0329 Lock Washer 1/4 Reg. Duty
10 . 736-0526 Wave Washer 1.38 x .8 8 x .029
11. 738-0924 Shid. Scr. .340 X .350 x 1/4-20
12 . 750-1070 Slev. Spacer
.
8 8 I.D. x1 O.D. X.48
13. 750-1071 Slev. Spacer
.88I.D.X1.130.D.X.12
14. 756-0625 Roller Cable
15. 782-7574 6-Spd. Cable Adj. Brkt.
16. 782-7575 6-Spd. Cable Mtg. Brkt.
17. 782-7596 6-Spd. Control Arm
18. 782-7597 6-Spd. Pivot Brkt.
19. 712-0138 Hex Nut 1/4-28
