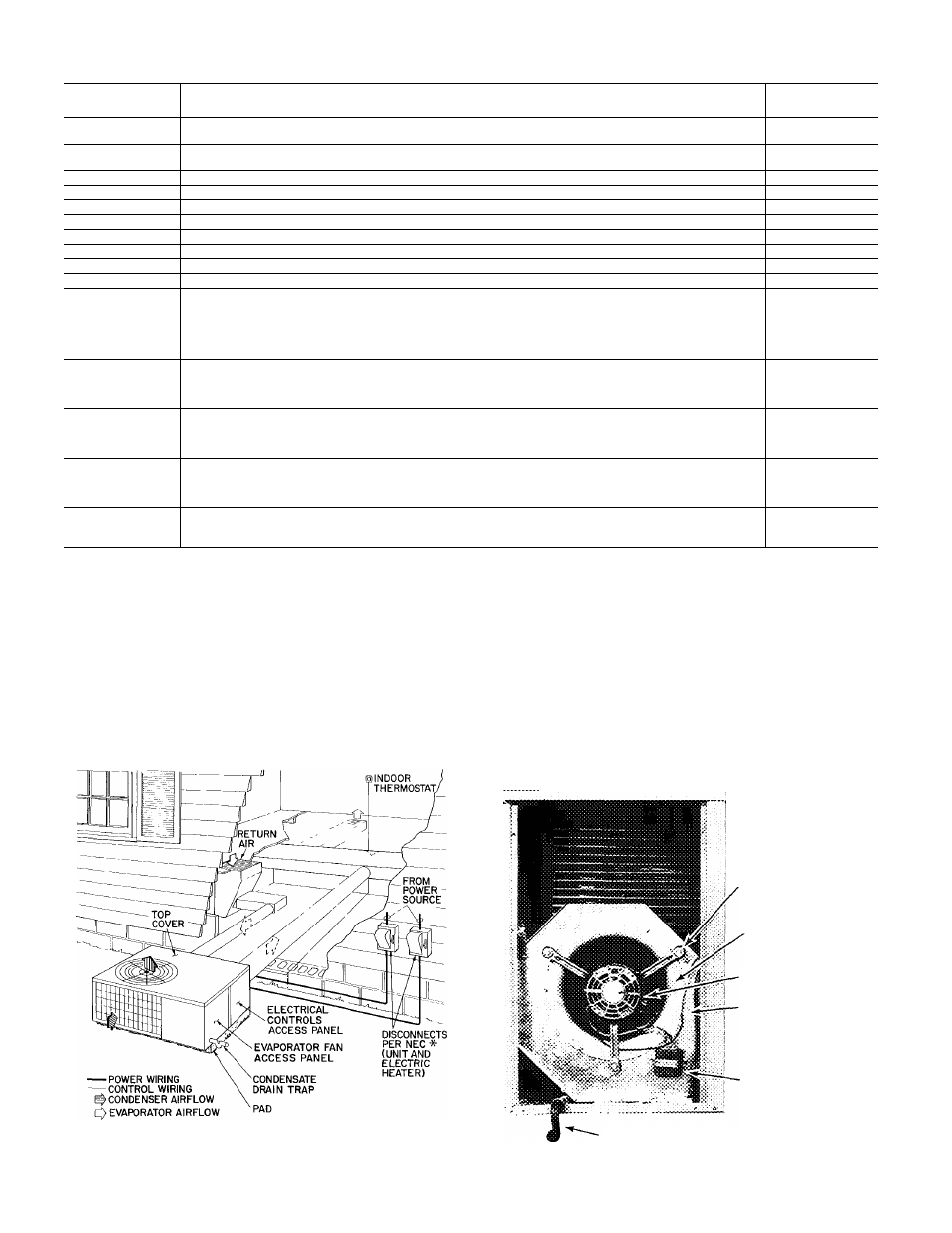

Table 2—Accessories
PARAT NO.
DESCRIPTION
MODEL
50QQ
99TZ900521
Thermostat 1 -stage cooling, automatic changeover
Subbase 2-stage heating, Carrier, Honeywell
All
99T2900571
Thermostat 2-stage cooling, manual changeover
Subbase 2-stage heating, Carrier, Honeywell
All
50LQ90002106
Solid-State Time Guard® Control (Six 50LQ900021)
All
50LQ90001106
Service Sentry (Six 50LQ900011)
All
38RQ900012
Supplemental Heat Relay—Used with 25 kW heater and 2 outdoor thermostats
060
50LQ90000106
Outdoor Thermostat (Six 50LQ900001)
All
50LQ900031
Reversible Filter Drier and AccuRater Assembly
All
32LT900301
Motormaster® Head Pressure Control
All 208/230-v
32LT900611
Motormaster Head Pressure Control
All 460-v
50YM900051
Duct Flange Kit
018-048
88EM0050MA01
Electric Heater—5 kW, 240-1
All
88EM0075MA01
Electric Heater—7.5 kW, 240-1
All
88EM0100MA01
Electric Heater—10 kW, 240-1
All
88EM0150MA01
Electric Heater—15 kW, 240-1
030-060
88EM0200MA01
Electric Heater—20 kW, 240-1
036-060
88EM0250MA01
Electric Heater—25 kW, 240-1
060
88EM0100EA01
Electric Heater—10 kW, 240-3
030-060
88EM0150EA01
Electric Heater—15 kW, 240-3
030-060
88EM0200EA01
Electric Heater—20 kW, 240-3
042-060
88EM0250EA01
Electric Heater—25 kW, 240-3
060
88EM0100FA01
Electric Heater—10 kW, 480-3
036-060
88EM0150FA01
Electric Heater—15 kW, 480-3
036-060
88EM0200FA01
Electric Heater—20 kW, 480-3
036-060
88EM0250FA01
Electric Heater—25 kW, 480-3
060
HC95DE023
Start Capacitor^
018
HC95DD058
Start Capacitor^
024, 030
HC95DE088
Start Capacitor^
036-048
HC95DE208
Start Capacitor^
060
HN61HB510
Start Relays
018
HN61KB021
Start Relays
024-048
HN61KB075
Start Relays
060
♦Available through Service Parts
NOTE: Electric heaters are rated at 240 and 480 volts
Step 4—Provide for Cooling Cycle condensate Disposal-
Condensate may be drained directly onto gravel apron or
connected by drain line(s) to a dry well. Follow local codes.
♦Separate disconnect per NEC required for electric heater
Fig. 4—Typical Installation
CONNECT DRAIN LINE to rubber condensate drain fit
ting on side of unit (see Fig. 5). Use clamp provided. Install
factory-supplied condensate trap (taped to indoor fan com
partment for shipment) at end of dredn line. If a drain line is
not used, connect condensate trap to unit drain fitting as
shown in Fig. 4.
FAN MOTOR
MOUNTING BOLTS
ORIFICE RING
FAN MOTOR
BLOWER
HOUSING
CAPACITOR
CONDENSATE TRAP
Fig. 5—Condensate Drain and Trap Details
