FUNCTION DISPLAY ACCORDING TO OPERATION MODE

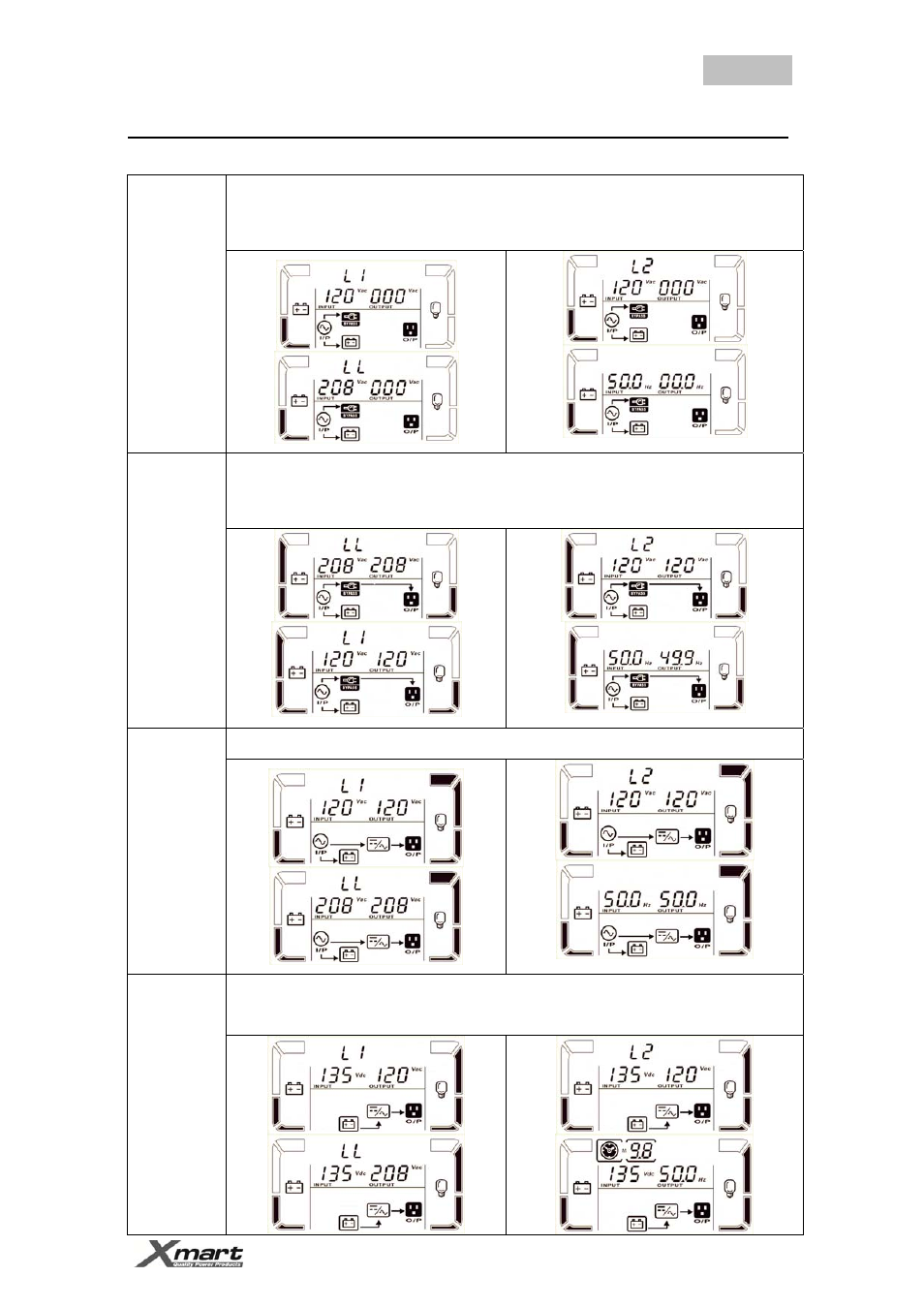

In each mode UPS will show 4 different alternating screens as described below:
NO-OUTPUT
MODE
UPS is connected to main input but UPS output is not powered on because one of the following reasons:
1.- BYPASS mode is not activated (DIS) or forbidden (FBD) and ON button in front panel has not been activated.
2.- UPS has been connected by first time to main but input is out of operative range (by voltaje or by frequency).
LCD shows there is no output (3 digits value is 000 at right side of the LCD)
UPS displays these 4 screens in alternative manner to show L1, L2, L to L and frequency values).
BYPASS MODE
UPS is in bypass mode. UPS outputs are supplied duirectly from the input Main.
LCD shows input main is conducted directly through bypass line with any intervention of the inverter.
This mode is typical when UPS is connected to the main but ON button is not activated. The UPS is like OFF but
providing output from the input main or because UPS has detected either an overload or an internal error.
BYPASS mode must be allowed in function 10,
NORMAL AC
MODE
UPS is connected to main source. Main source is OK.. UPS is generating output by inverter.
LCD figures show output comes from inverter. Input is used for supplying rectifier and charging batteries.
BATTERY
MODE
UPS goes to battery mode when input failure is detected. In battery mode LCD shows battery voltage in Vdc (135Vdc
in below figures) instead of AC input voltage.
Additionally output voltage is indicated in right side of the LCD.
Fourth screen shows time in battery mode.
