PARALLEL CONFIGURATION 3: 2 INPUT - 1 OUTPUT 208V
- 2 INPUTS 120Vac
- 1 OUTPUT1 208Vac
** Under this configuration output can supply 100% of total UPS capacity.
WARNING:
To use this UPS as 2 phases UPS is MANDATORY to check there is NO jumpers connected between L1 and L2
at Input and output terminal block. You must follow below instructions:
MANDATORY INSTRUCTIONS TO AVOID PERMANENT DAMAGE IN YOUR UPS AND SYSTEM
1.- Remove all jumpers between L1 and L2 at input and output terminal block.

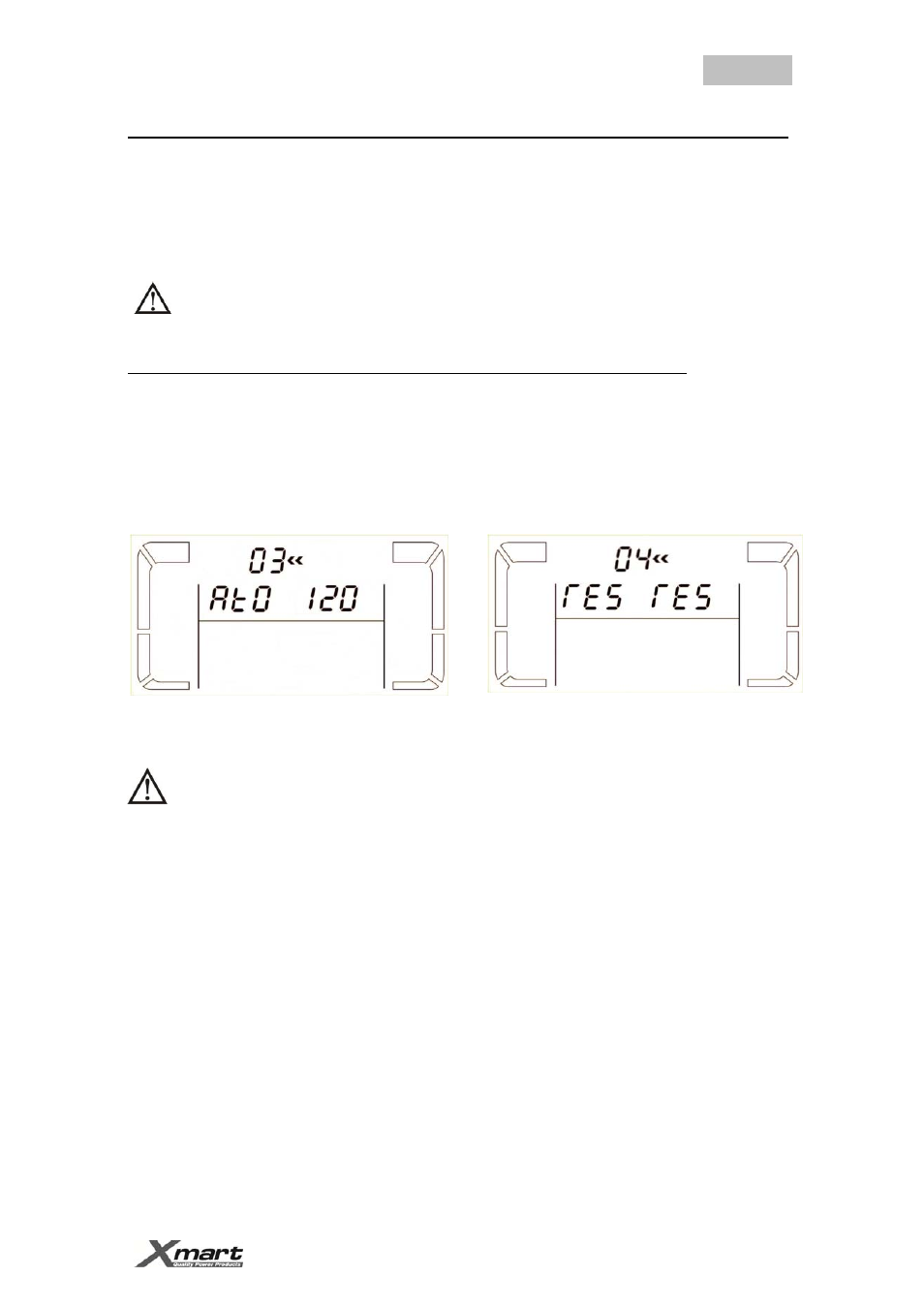

2.- You MUST confirm Configuration MENU 03 and 04 in LCD panel are configured as follows:
2.1- Configuration MENU 03 must be set as “ATO” (automatic mode): Output phase angle is same than input phase
angle. In normal conditions angle phase between separate phases is 120º.
2.2- Configuration MENU 04 is not available under this mode. It is indicated as RESERVED. Since UPS detects input has
been wired as 2 separate phases, output cannot be configured as 1 phase output.
** Detailed instructions to check and configure function 03 & 04 available in Configuration section
Only after configuring all UPS to be connected in parallel, terminal block connections can be done according to following
figure:
