OPERATION
INTERFACE
UPS
FRONT
PANEL:
PUSH
BUTTON

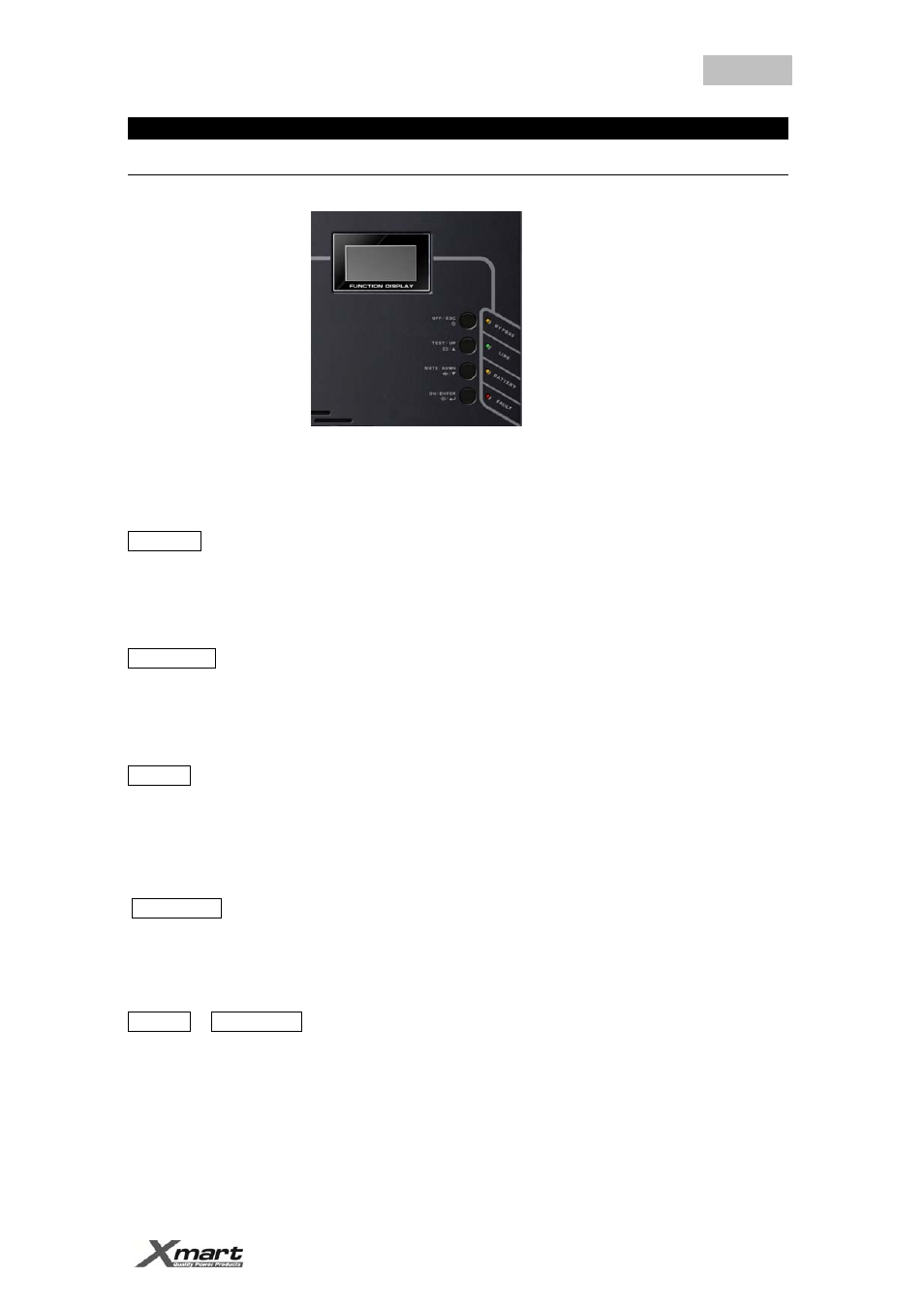

TOWER FRONT PANEL
Both Rack and Tower type UPS offer same 4 function buttons as described below:
ON / ENTER
POWER ON : Keep selected during 1 second to power UPS ON.
ENTER : It Works as “ENTER” or confirmation function when LCD is in configuration menu mode.
OFF / ESCAPE
POWER OFF : Keep selected to turn UPS OFF.
ESCAPE : It Works as ESCAPE key when LCD is in configuration menu mode.
TEST / UP
BATTERY
TEST : When UPS is in normal mode by selecting TEST key UPS enters into battery test mode during 10
seconds.
UP : It Works as UP key when LCD is in configuration menu mode.
MUTE / DOWN
ALARM MUTE : It mutes alarm beep in progress.
DOWN : It Works as DOWN key when LCD is in configuration menu mode,
TEST / UP + MUTE / DOWN - Simultaneous Activation
CONFIGURATION MODE : UPS enters into configuration menu when these 2 keys are activated at same time
during 1 second.
