• Screw the spike and nut into the diode.
• Screw the 3/4” setscrew into the front spike holes in the stand.
• Thread the spike assembly onto the setscrew.
R e s e t t i n g t h e P D C
Once the final rotation has been determined, you will need to reset the PDC.
If you have raised the speaker by adding a diode or 1/2” spacer, read the PDC from
the table that matches your current spike configuration in Section 9. If you have
adjusted the rotation by unscrewing the spike, do as follows:
• Measure the distance you have raised the speaker.
• Slide the tweeter forward 1/2 of the distance you raised the speaker.
S
E C T I O N
5 - F
I N A L
S
Y S T E M
T
U N I N G A N D
V
O I C I N G
D
I O D E
S
P I K E
3 / 4 ” S
E T
S
C R E W
N
U T
F
I G U R E

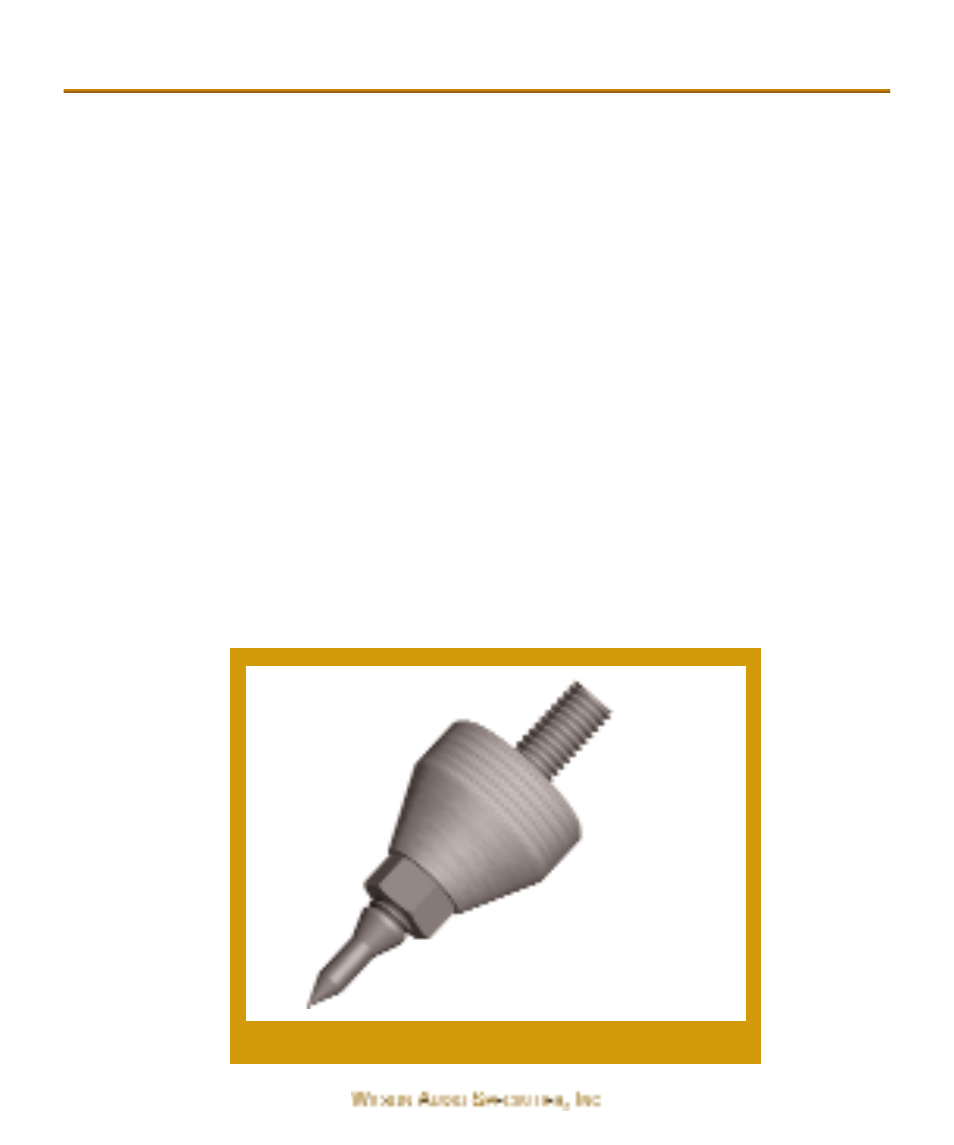

2 0 - S
P I K E
A
S S L E M B LY
D
I O D E W I T H
N
O
S
PA C E R S
