Wilkerson L01 - Manual

INSTALLATION
1. Refer to Warnings.
CAUTION! Depressurize Before Servicing!
2. Install at air inlet or tool if possible. Unit will operate in any position,
allowing it to be mounted on air hose.
3. Install the unit with the air flowing in direction of arrow on body.
4. MAKE SURE AIR SUPPLY IS TURNED OFF AND
DEPRESSURIZED BEFORE REMOVING FILL PLUG. Remove
fill plug and fill unit. Use only clean oil, SAE 10 or lighter is best.
5. Unit must be moved periodically or it will not feed oil. DO NOT
install on rigid, non-moving air lines.
MAINTENANCE
1. Remove flow tube occasionally and clean inside of body. Blow out
flow tube with air gun. Be sure oil feed pin moves freely.

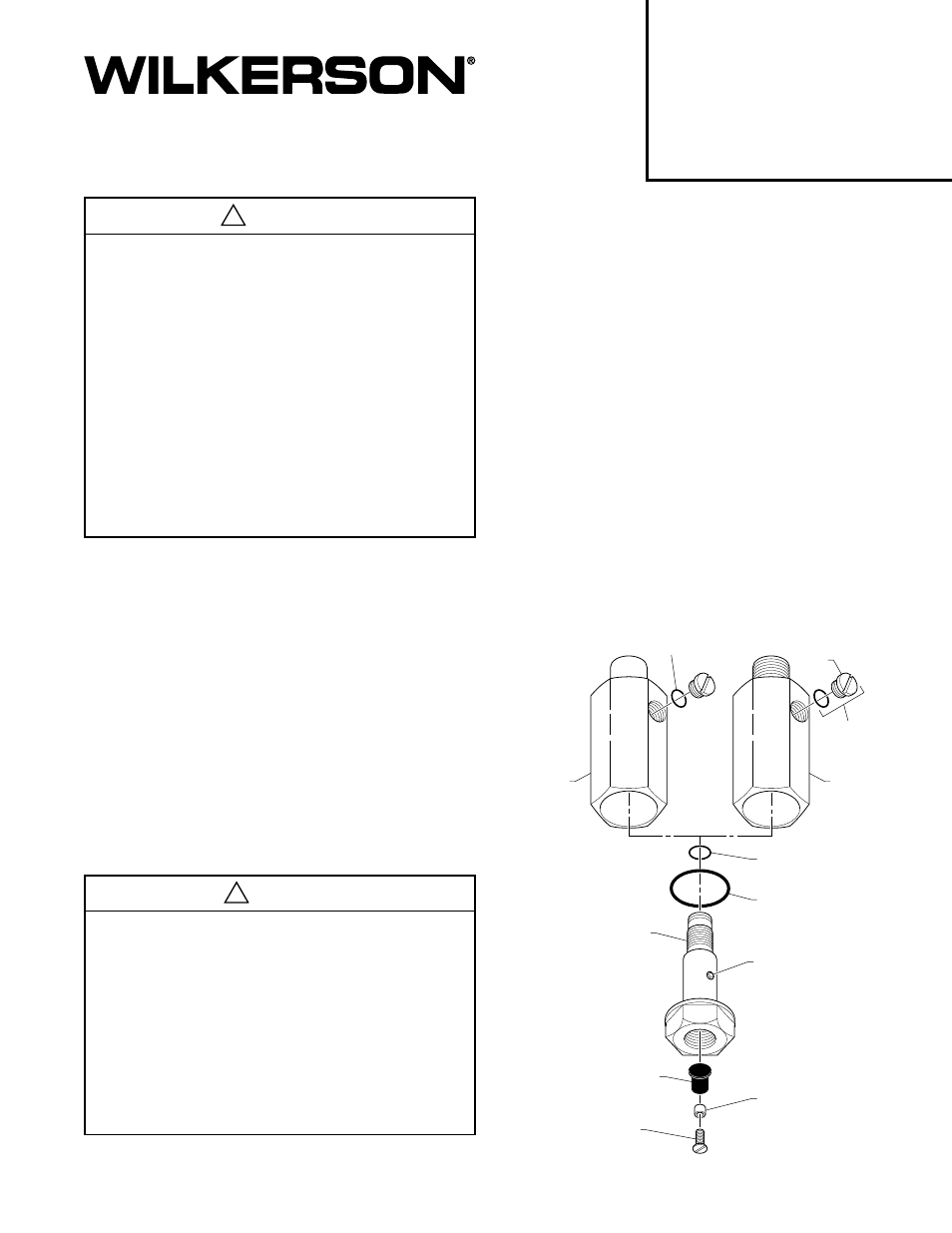

REPAIR KITS AND REPLACEMENT PARTS
O-Ring Kit ........................................................................ LRP-95-074
Brass Fill Plug Kit ............................................................ LRP-95-254
O-Ring Fill Plug
NNR
Body
NNR
(Used on
L01-03-000
L01-02-M00
Only)
O-Ring
O-Ring
Spacer
Tube
Oil Feed
Pin
Flow Tube
NNR
Flow-Guide ®
Variable
Orifice
Screw
NNR = NOT NORMALLY REPLACED
Body
NNR
(Used on
L01-02-000
Only)
Fill Plug
Kit
Richland, MI 49083 Tel: (269) 629-5000
Installation & Service Instructions
84-004-000
In-Line Lubricator Model L01
ISSUED: February, 2005
Supersedes: August, 2002
Doc.# 84-004-000, Rev. 2
WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE
PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS
CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
This document and other information from The Company, its subsidiaries
and authorized distributors provide product and/or system options for further
investigation by users having technical expertise. It is important that you
analyze all aspects of your application, including consequences of any failure
and review the information concerning the product or systems in the current
product catalog. Due to the variety of operating conditions and applications
for these products or systems, the user, through its own analysis and testing,
is solely responsible for making the final selection of the products and
systems and assuring that all performance, safety and warning requirements
of the application are met.
The products described herein, including without limitation, product features,
specifications, designs, availability and pricing, are subject to change by The
Company and its subsidiaries at any time without notice.
EXTRA COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FOR INCLUSION
IN EQUIPMENT / MAINTENANCE MANUALS THAT UTILIZE THESE
PRODUCTS. CONTACT YOUR LOCAL REPRESENTATIVE.
!
WARNING
To avoid unpredictable system behavior that can cause personal injury
and property damage:
• Disconnect electrical supply (when necessary) before installation,
servicing, or conversion.
• Disconnect air supply and depressurize all air lines connected to
this product before installation, servicing, or conversion.
• Operate within the manufacturer’s specified pressure, temperature,
and other conditions listed in these instructions.
• Medium must be moisture-free if ambient temperature is below
freezing.
• Service according to procedures listed in these instructions.
• Installation, service, and conversion of these products must be
performed by knowledgeable personnel who understand how
pneumatic products are to be applied.
• After installation, servicing, or conversion, air and electrical supplies
(when necessary) should be connected and the product tested for
proper function and leakage. If audible leakage is present, or the
product does not operate properly, do not put into use.
• Warnings and specifications on the product should not be covered
by paint, etc. If masking is not possible, contact your local
representative for replacement labels.
!
