9 | PIR Ready VT7600 Series-Installation Guide

Supply air temperature averaging sensor for economizer models with the
sensor in the mixing plenum.
S2020E1000; outdoor air temperature sensor
This sensor can be used for:

Outside air temperature sensing with the sensor installed directly exposed to
the elements.

Sensor uses a water resistant NEMA 4 ABS enclosure for outdoor
applications.

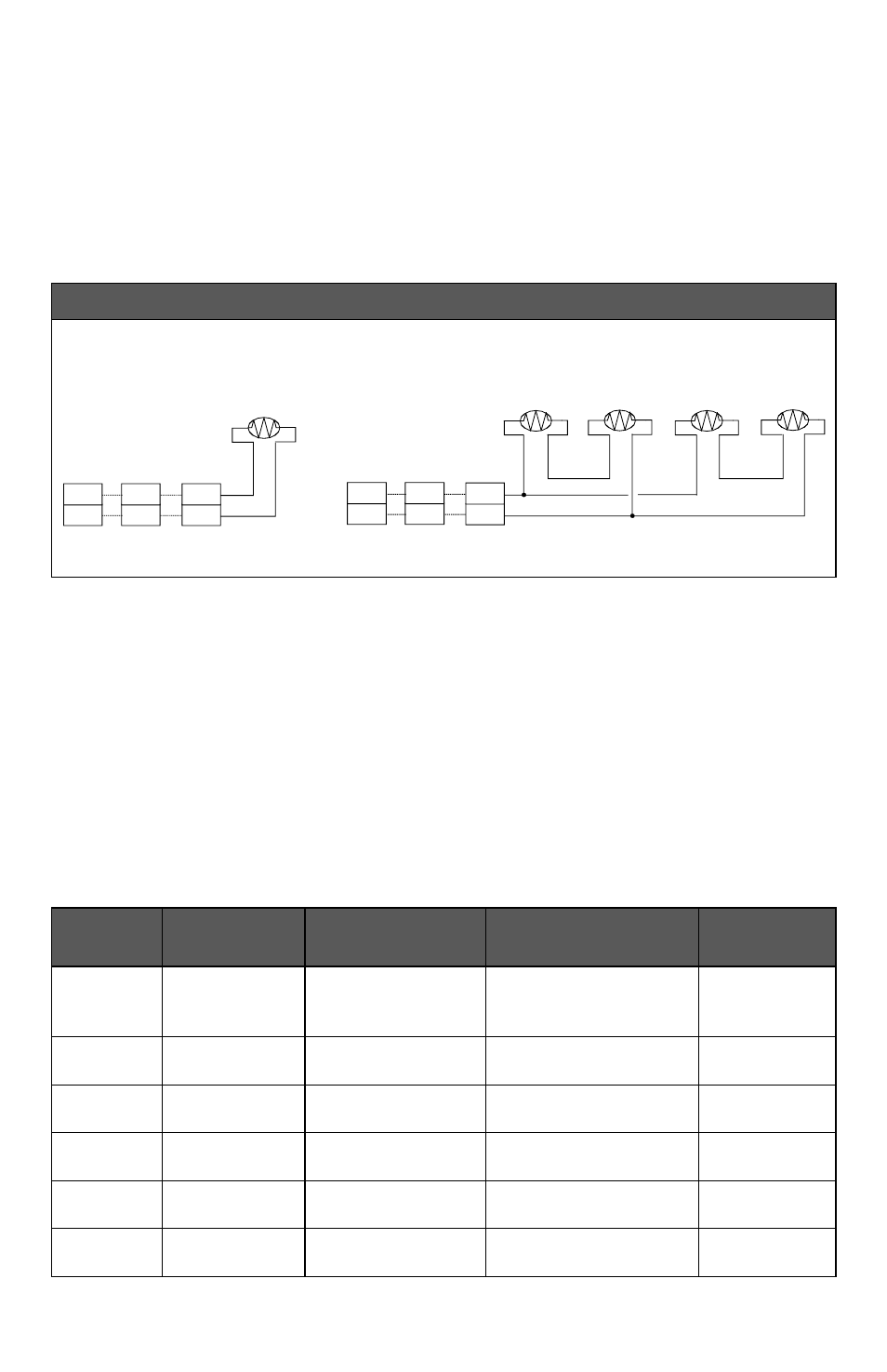

WIRING S2000D1000, S2060A1000 and S2020E1000
Remote wiring 1 sensor Remote wiring 4 sensors
C
ONFIGURING AND
S
TATUS
D
ISPLAY
I
NSTRUCTIONS
Status display
The Terminal Equipment Controller features a two-line, eight-character display. There is a low
level backlight that is always active and can only be seen at night.
When left unattended, the Terminal Equipment Controller has an auto scrolling display that
shows the current status of the system.
Each item is scrolled sequentially with the back lighting in low level mode. Pressing any key will
cause the back light to come on to high level.
Manual scrolling of each menu item is achieved by pressing the Yes (scroll) key repetitively.
The last item viewed will be shown on the display for 30 seconds before returning to automatic
scrolling. Temperature is automatically updated when scrolling is held.
Sequence of auto-scroll status display:
CLOCK
STATUS
SYSTEM
MODE
SCHEDULE
STATUS
OUTDOOR
TEMPERATURE
ALARMS
Monday
12:00
AM
Sys mode
auto
Occupied
Outdoor
x.x °C or°F
Service
Sys mode
off
Occupied
hold
Frost ON
Sys mode
heat
Unoccup
SetClock
Sys mode
cool
Filter
Fan lock
DAS Alrm
10 K
10 K 10 K 10 K 10 K
Scom
DS
Scom
OS
Scom
RS
or or
Scom
DS
Scom
OS
Scom
RS
or or
(
