VT8600 Series
BACnet
®
Integration Manual
22
Viconics Technologies Inc.
|
9245 Langelier Blvd.
|
St.-Leonard
|
Quebec
|
Canada
|
H1P 3K9
|
Tel: (514) 321-5660
|
Fax: (514) 321-4150
028-0437-00
www.viconics.com
|
March 2015
©
2
01
5 V
ic
onic
s T
ec
hno
lo
gi
es
Inc
. A
ll r
ig
ht
s r
ese
rv
ed
.
VT8600U5X00B INTEGRATION –
GRAPHICAL USER INTERFACE OBJECTS
Objects typically used in a GUI:
• Room Temperature (AV100)
• Occupied and Unoccupied Heat Setpoints
(AV39 and AV43)
• Occupied and Unoccupied Cool Setpoints
(AV40 and AV44)
• Outdoor Temperature (AV101)
• Supply Temperature (AV102, if available)
• Occupancy Command (MV10)
• System Mode (MV16)
• Auxiliary Output Status (BO98)
• PI Heating Demand (AO21)
• PI Cooling Demand (AO22)
• Window Alarm (BV35)
• Filter Alarm (BV36)
• Service Alarm (BV37)

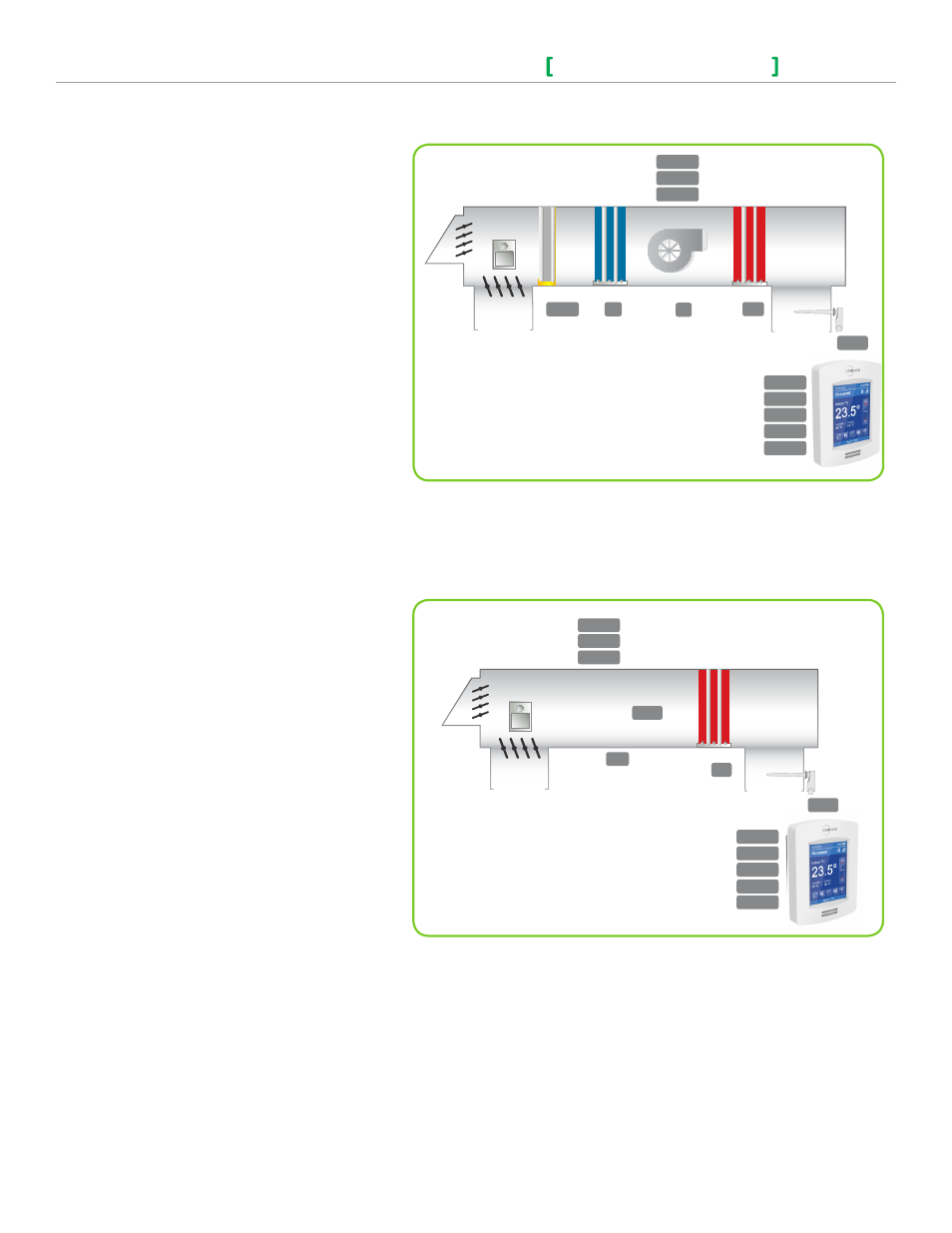

Figure-1 GUI Example - VT8600UXBXX
Figure-2 GUI Example - VT8600UXBXX
Occupancy
System mode
Outdoor Temperature
Occupied
Heat
42
o
F
PI Heat
53%
Fan Status
On
Filter Alarm
Normal
PI Cool
0%
Room Temperature
Occupied Heating Setpoint
Occupied Cooling Setpoint
Unoccupied Heating Setpoint
Unoccupied Cooling Setpoint
71.2
o
F
71.0
o
F
73.0
o
F
62.0
o
F
82.0
o
F
Supply Temperature
42
o
F
Occupancy
System mode
Outdoor Temperature
Occupied
Cool
80
o
F
PI Heating Demand
53%
Supply Temperature
65.2
o
F
PI Cooling
78%
Demand
Room Temperature
Occupied Heating Setpoint
Occupied Cooling Setpoint
Unoccupied Heating Setpoint
Unoccupied Cooling Setpoint
74.2
o
F
71.0
o
F
73.0
o
F
62.0
o
F
82.0
o
F
Supply Temperature (AI11)
65.2
o
F
