PLAYBACK

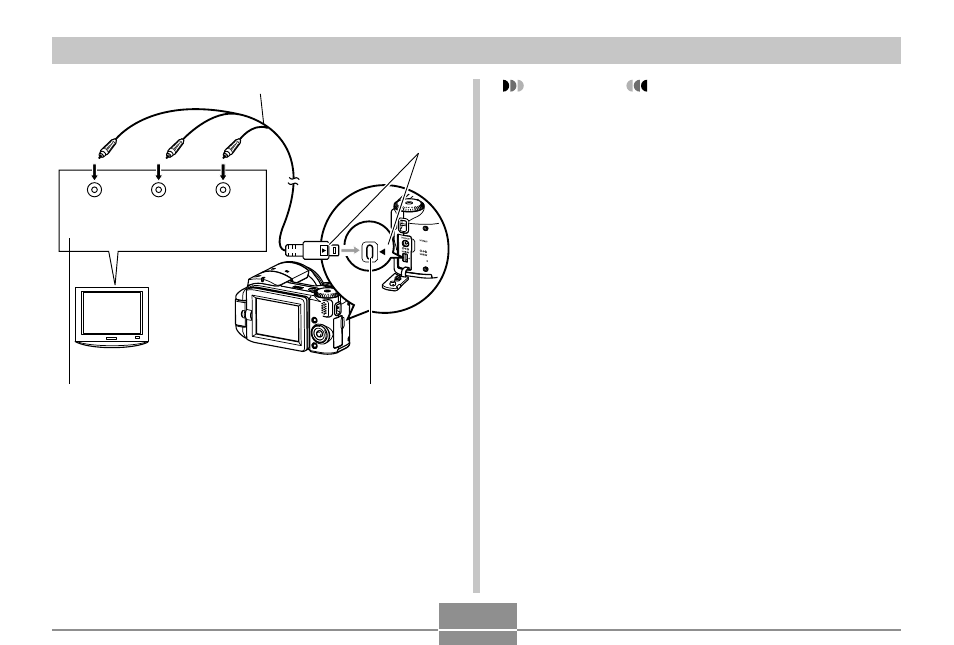

Red
(Right
Channel)
Yellow
(Video)
White
(Left
Channel)
Yellow White Red
USB/AV
AV cable
[USB/AV] (USB/AV port) Video input terminal
TV
2. Turn on the TV and select its video input
mode.
3. Now when you perform normal image
playback and recording operations on the
camera, the applicable image appears on the
TV screen.
IMPORTANT!
• All icons and indicators that appear on the monitor
screen also appear on the TV screen.
• Stereo output is possible if you connect to a TV that
supports stereo input.
• Depending on the size of the TV screen, recorded
images and images during recording may not fill the
entire screen.
• For video output, the audio volume level is initially
set to maximum. Perform volume level adjustment
using TV controls.
• Note that the video image is vertically flipped when it
is output to the monitor screen. Because of this, the
monitor screen will display the image properly when
it is positioned outwards against the back of the
camera as shown on page 27.
