Top Flite P-47 D Thunderbolt('76) - Manual (Page 8)

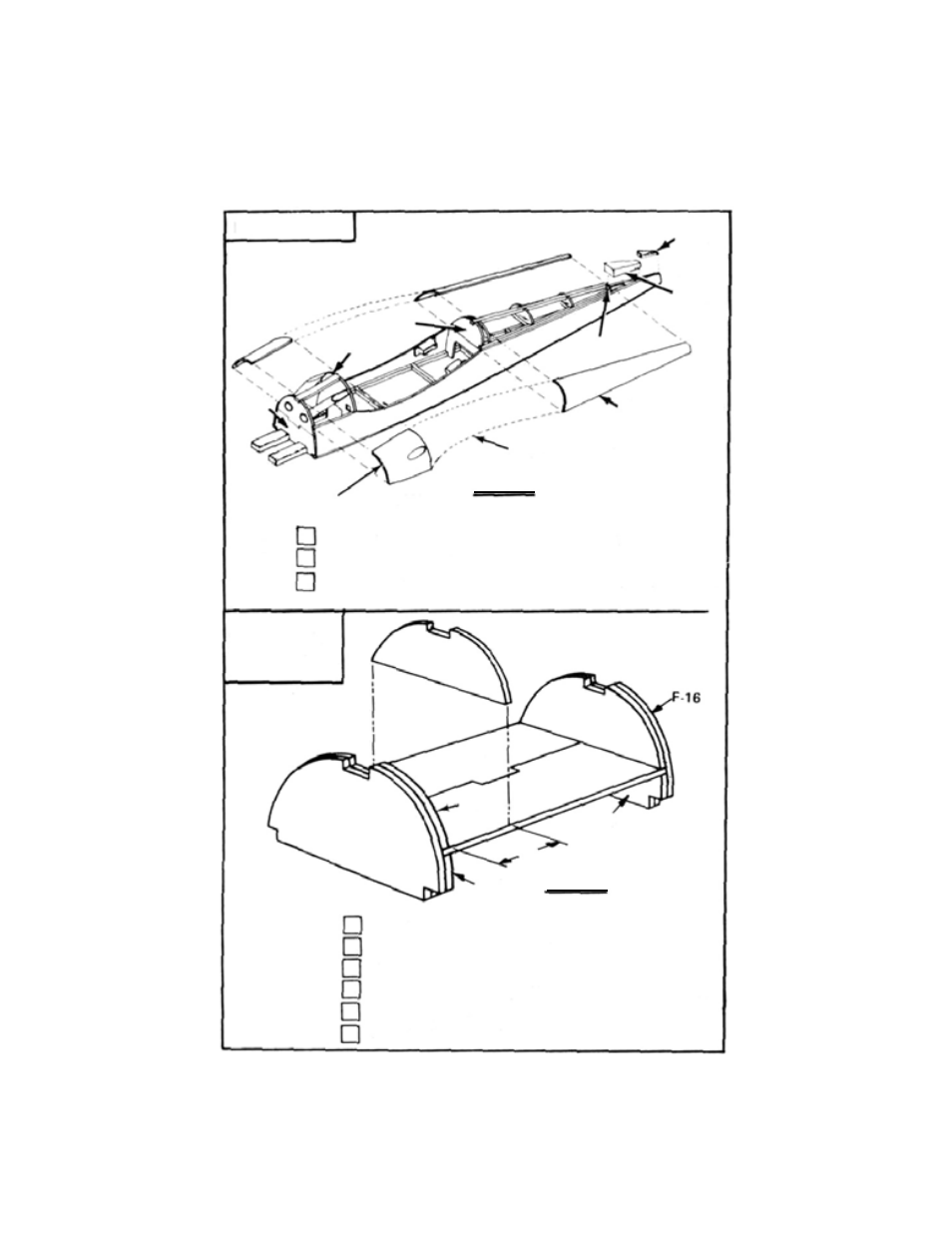

6
Cut and fit the REAR SECTIONS and glue in place.
Glue the tail blocks in place.
Trim and fit forward shell sections. DON'T GLUE IN PLACE
YET.
Glue F-13R and F-13L together.
Glue F-11 to bottom part of F-9.
Glue F-15 to bottom part of F-16.
Glue F-13R L assembly on top edges of F-11 and F-15.
Glue F-10 and F-14 on top of F-13 RL.
Glue F-12 2" behind F-10.
F U S E L A G E HARDWOOD
TAIL
BLOCK
BALSA
TAIL
BLOCK
F-26
REAR SECTION
p-19
F-7
F-3AB
FIG. 8
SET CENTER SECTION ASIDE
FORWARD SHELL SECTION
S T E P
6
FUSELAGE
C O C K P I T
ASSEMBLY
P-12
F-14
F-13R
F-13L
F-10
F-15
2"
F-11 FIG. 9
S T E P
7
P-9
