10
1/4" x 1/2"
BOTTOM SPAR

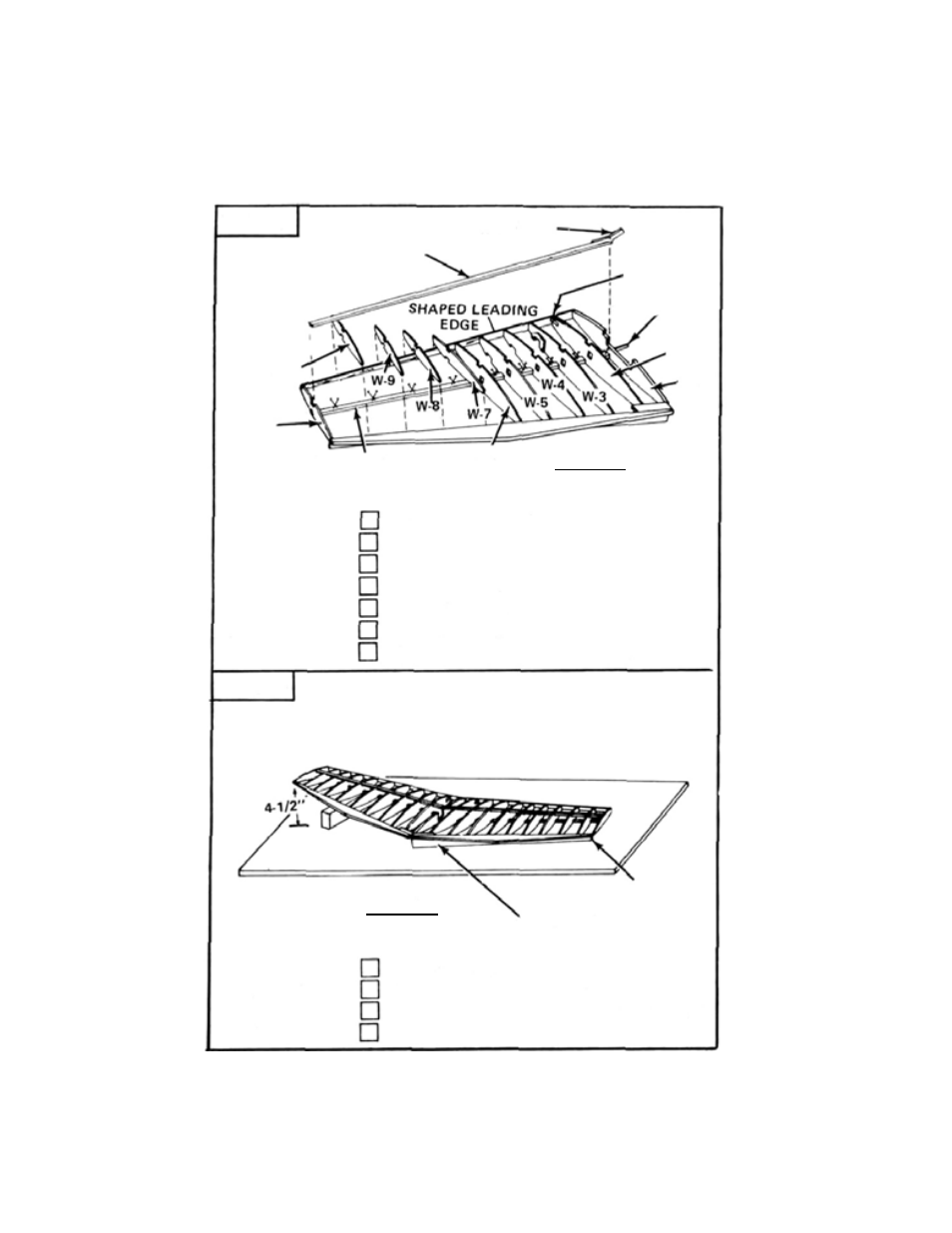

FIG. 16
Pin 1/4 x 1/2 BOTTOM SPAR over plans.
Glue brace W-15 (ply) to front of bottom spar.
Glue ALL RIBS in place over bottom spar.
Glue W-14 (ply) to top spar.
Glue TOP SPAR in place.
Glue LEADING EDGE in place.
Mark leading edge at W-2 for location of wing dowel
Switch wing alignment wedge to right side.
Block left wing up 4-1/2 under tip.
Construct right half in the same manner as the left.
Glue the two wing halfs together.
WING
W-14 (PLY)
1/4" x 1/2" TOP SPAR
MARK
W-15 (PLY)
,W.2
W-1
W-10
W-11
W-6
STEP
5
W I N G
NARROW END
FIG. 17
WING ALIGNMENT WEDGE
S T E P
6
