CONSTRUCTION
SEQUENCE
Follow each step in order and put
check marks in the blocks as you
complete each phase described.
F U S E L A G E
1/4" x 1/2" NOTCHED STRIPS
2
Glue 1/4 x 1/2 notched balsa strips to fuselage sides. Make a
right and left side. Note: Curve on top edge of fuselage sides is
intentional.
Glue ply braces F-31 to fuselage sides. (See plans for position)
Glue hardwood wing screw blocks in place.
1

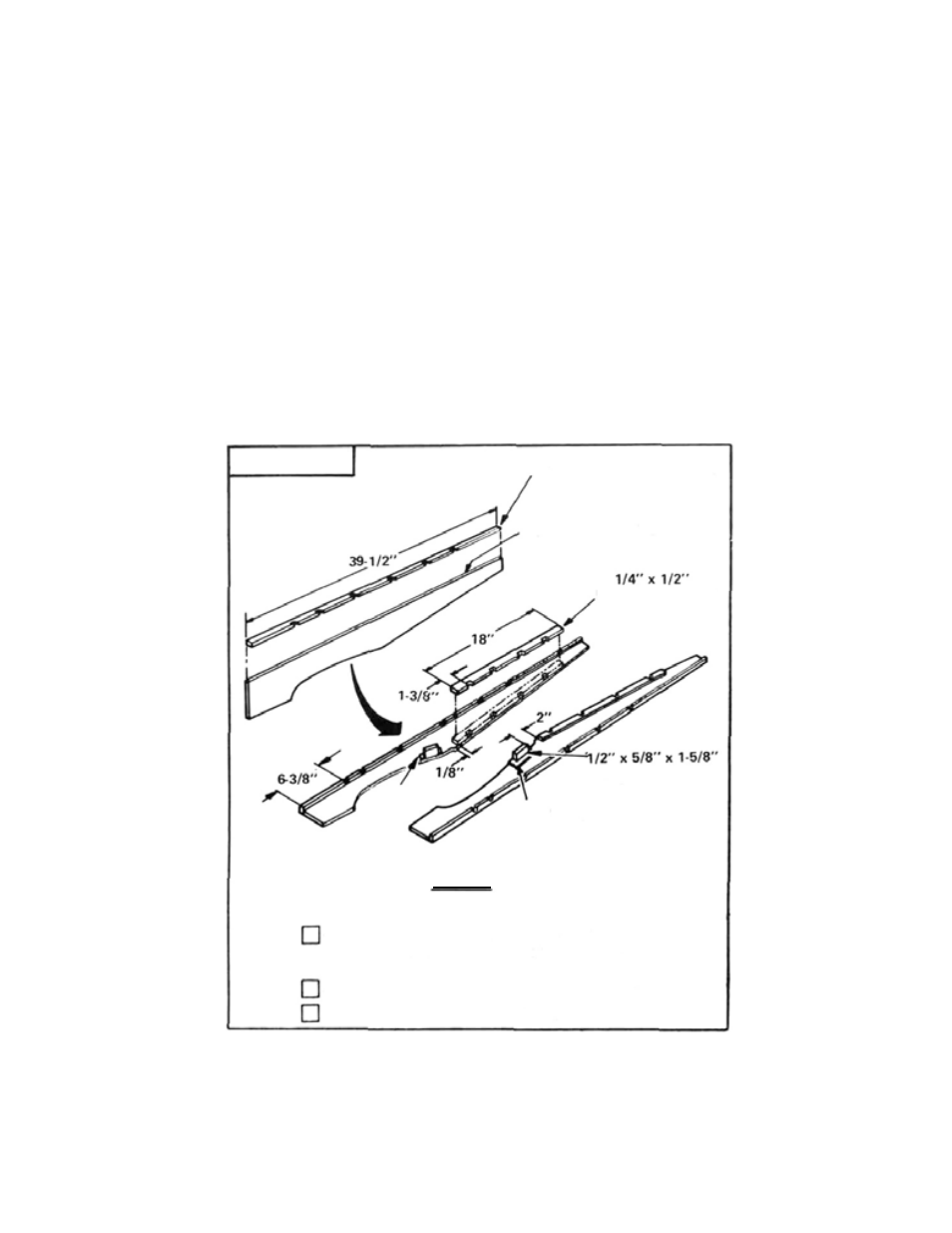

FIG. 1
RIGHT
FUSELAGE SIDE
LEFT FUSELAGE SIDE
F-31 (PLY)
HARDWOOD
WING SCREW BLOCK
F-31 (PLY)
NOTE C U R V E D TOP EDGE
NOTCHED STRIPS
STEP
