Top Flite P-47 D Thunderbolt('76) User Manual
Page 6
4

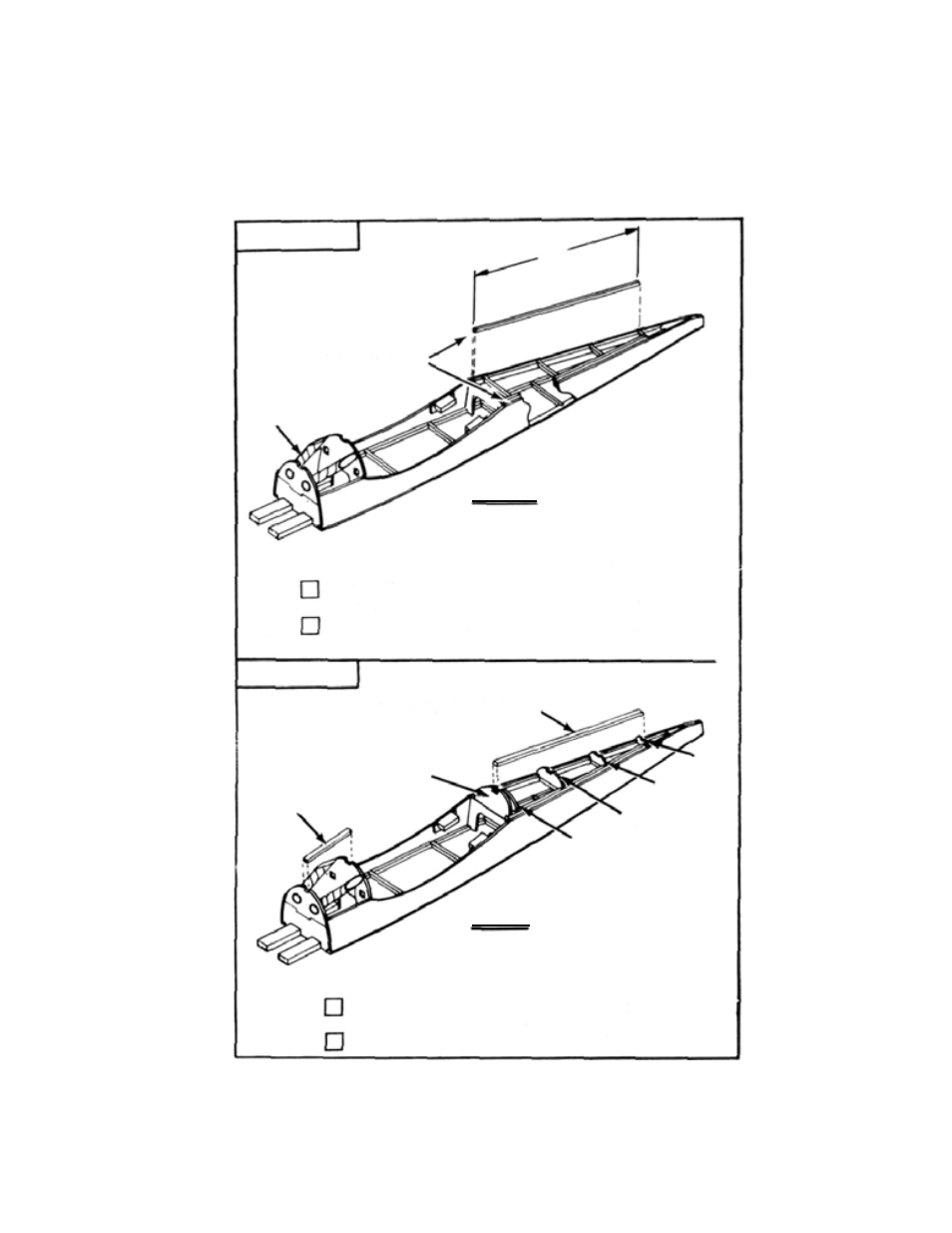

Cut two 1/4 SQ. strips to 15" and glue on top of notched strips
flush with the inside edge. Refer to fuselage cross SECTION B-B.
Using pattern on plans, cut 2 cardboard cooling tubes to size
and glue in place.
FUSELAGE
1/4" x 1/2" BACKBONE.
Glue bulkheads F-19, F-20, F-22, F-24, and F-26 in place.
Note angle of F-19 on plans.
Fit and cut 1/4 x 1/2 backbones to length and glue in place.
FIG. 4
CARDBOARD
COOLING TUBES
1/4" x 15" SO. STRIPS
15"
FUSELAGE
STEP
4
1/4" x 1/2"
BACKBONE
F-19
F20
F-22
F-24
F 26
FIG. 5
S T E P
5
