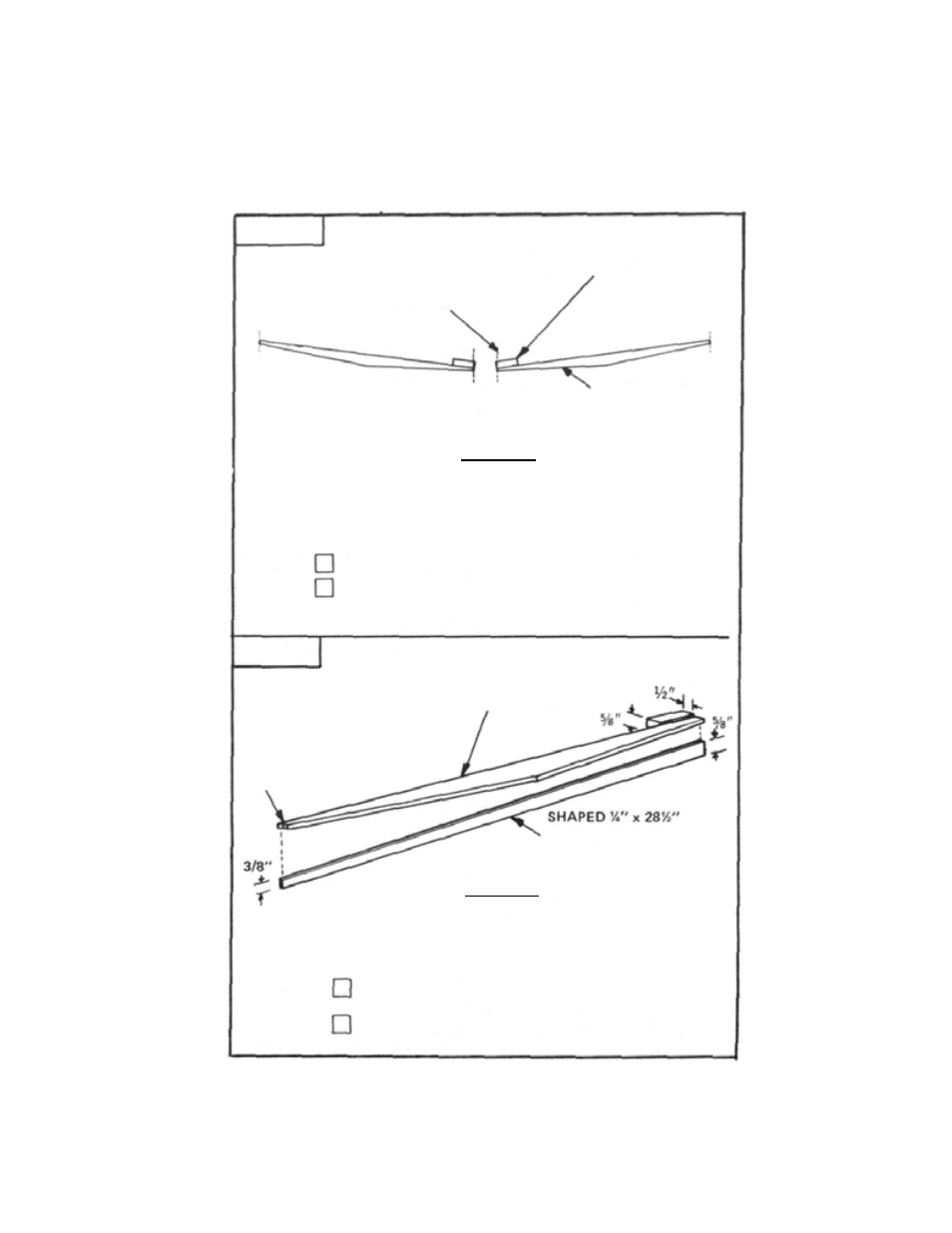

W I N G
1/2" x 5/8" x 3" BALSA BLOCK
9
MACHINED BALSA
TRAILING EDGE
F I G . 1 4
Glue 1/2 x 5/8 x 3 balsa blocks to trailing edges as shown.
Place above assembly over wing plan and cut ANGLE in center
so the two will be flush when joined later. Make sure both
trailing edges are equal length after trimming.
WING
NARROW END
OF WEDGE AT TIP
Pin wing ALIGNMENT WEDGE to plans over location of
machined trailing edge.
Pin trailing edge assembly over wing alignment wedge. (Do
not glue)
CUTTING LINE
TOP VIEW
STEP
3
TRAILING EDGE ASSEMBLY
WING TIP END WIDE END
WING ALIGNMENT WEDGE
F I G . 1 5
S T E P
4
