2.3. VX-2000PF Power Supply Frame
[Front]
[Top]
2 2
3
1
4

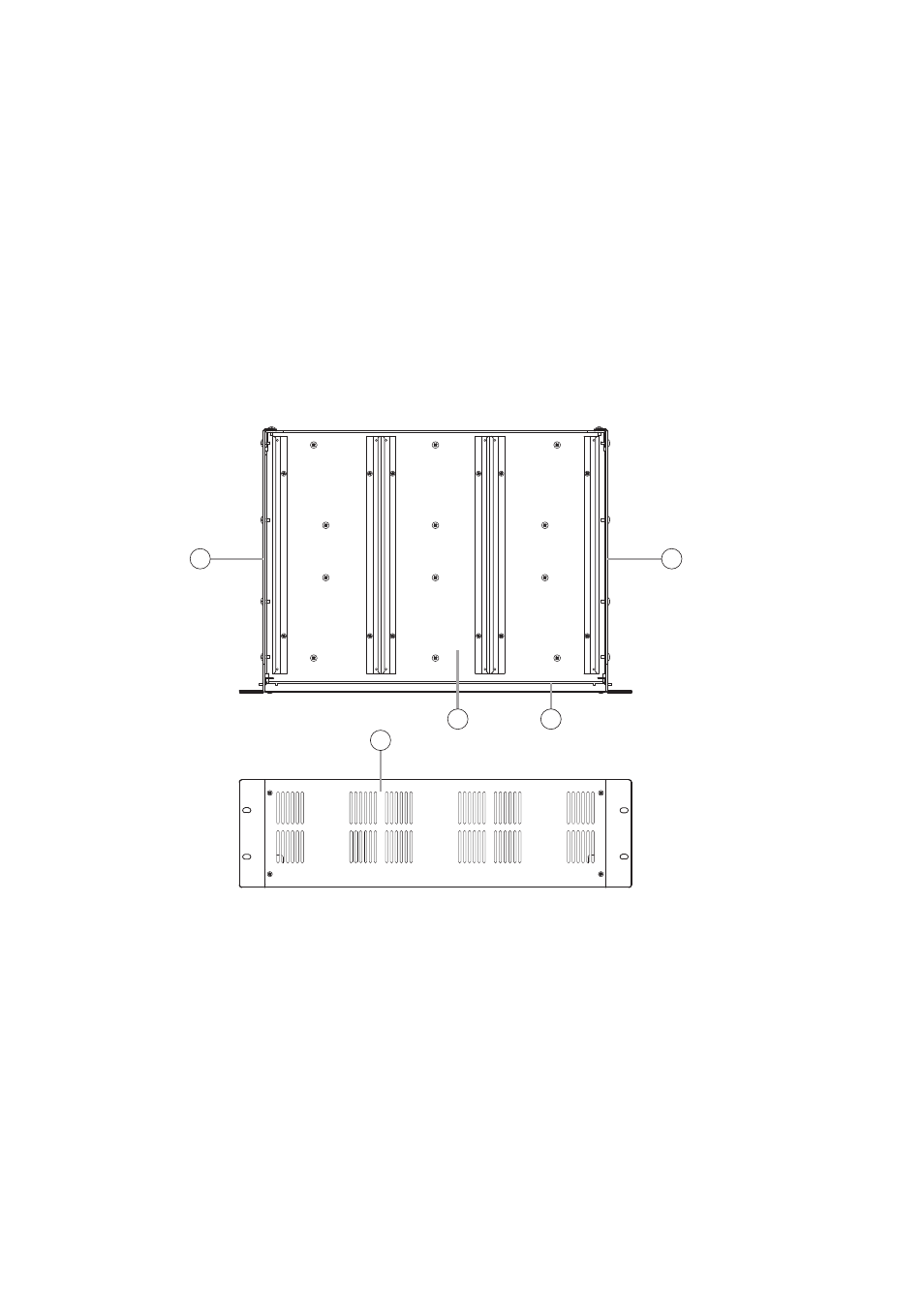

[VX-2000PF Components]
This unit is comprised of the following components. For the component assembly, refer to p. 9.
1. Front panel .................................................................. 1
2. Side panel ................................................................... 2
3. Chassis (VX-200PS guide rails pre-mounted) ..............1
4. Fixing bracket* ..............................................................1
* The Fixing bracket is not supplied with the previous VX-2000PF.
(Refer to p. 9, "Installation Precautions.")
The VX-2000PF permits the VX-200PS Power Supply to be mounted in an equipment rack.
Up to 3 VX-200PS units can be installed in the VX-2000PF. Refer to p. 10 for the VX-200PS mounting
procedure.
