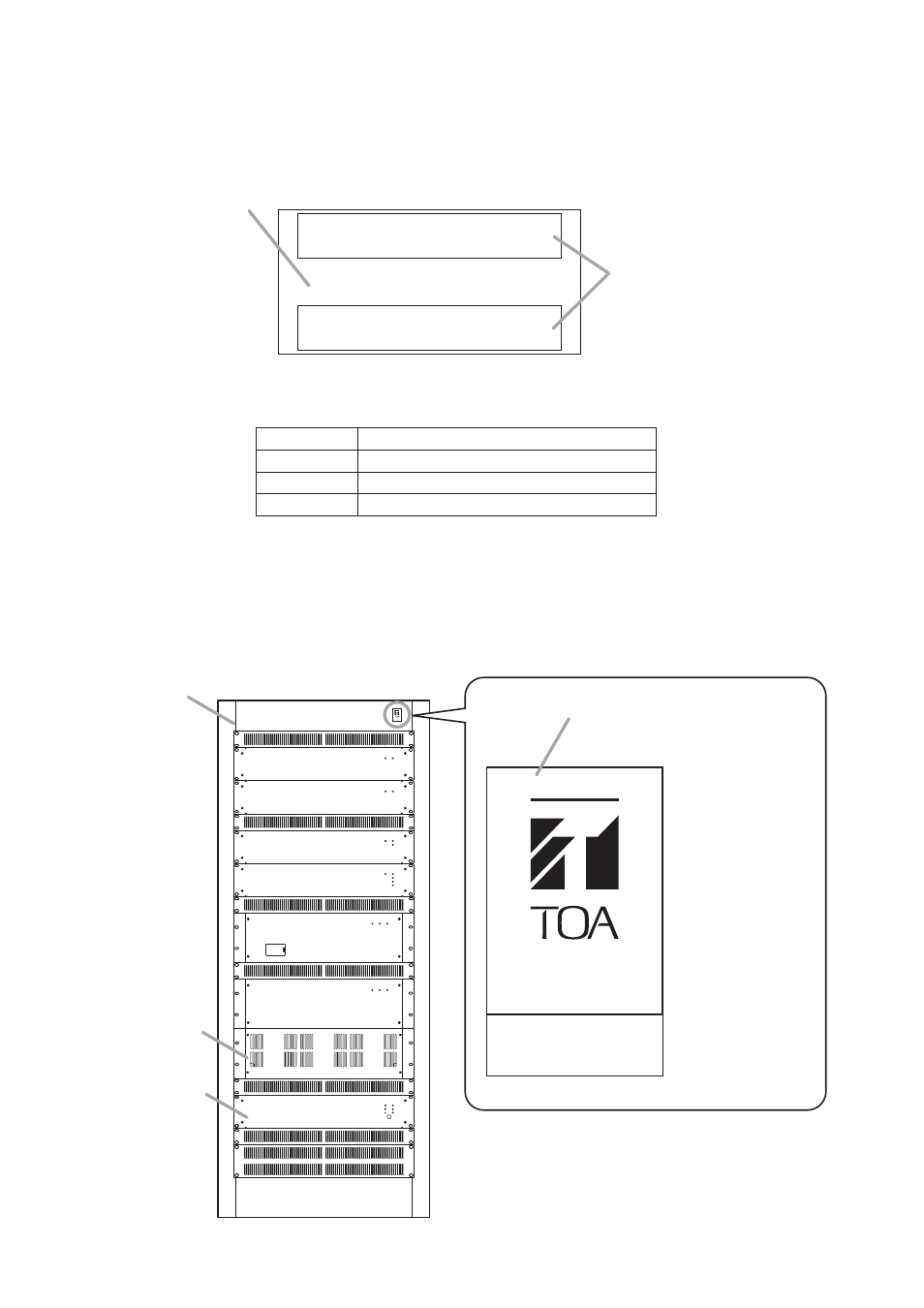

[Fixing the battery] (ER/UK version only)
To comply with EN 54-4, fix the battery at the bottom plate surface of the rack as shown below.
Attach hook fasteners to the bottom surface of each battery, and loop fasteners to the bottom plate surface of
the rack.
Hook fasteners
(supplied with the VX-2000DS)
[Viewed from the battery's bottom surface side]
135-01-075-2
135-01-076-3
VX-2000DS FASTENER HOOK (A)
VX-2000DS FASTENER LOOP (B)
131-27-891-2 VX-2000DS THERMAL INSULATING SHEET
Part code Part name
Bottom of battery
When replacing the batteries, 4 each of fastener hooks and loops, and a thermal insulating sheet listed
below are also required. Consult your nearest TOA dealer on how you can obtain them.
VX-2000DS
VX-2000PF and
VX-200PS
Rack
EN 54-4
Sticker (supplied with the VX-2000DS)
Affix only the upper part of the
sticker to the equipment rack.
EN 54-4
Paste this sticker on the outside
of the cabinet rack containing
the so certified equipment.
3.4. Affixing Declaration of Compliance (EN 54-4 Standard, ER/UK version only)
To declare that the VX-2000DS, VX-2000PF, and VX-200PS comply with EN 54-4, affix the sticker supplied
with the VX-2000DS visible to the front panel of the equipment (e.g. at the upper right side as shown below).
