12

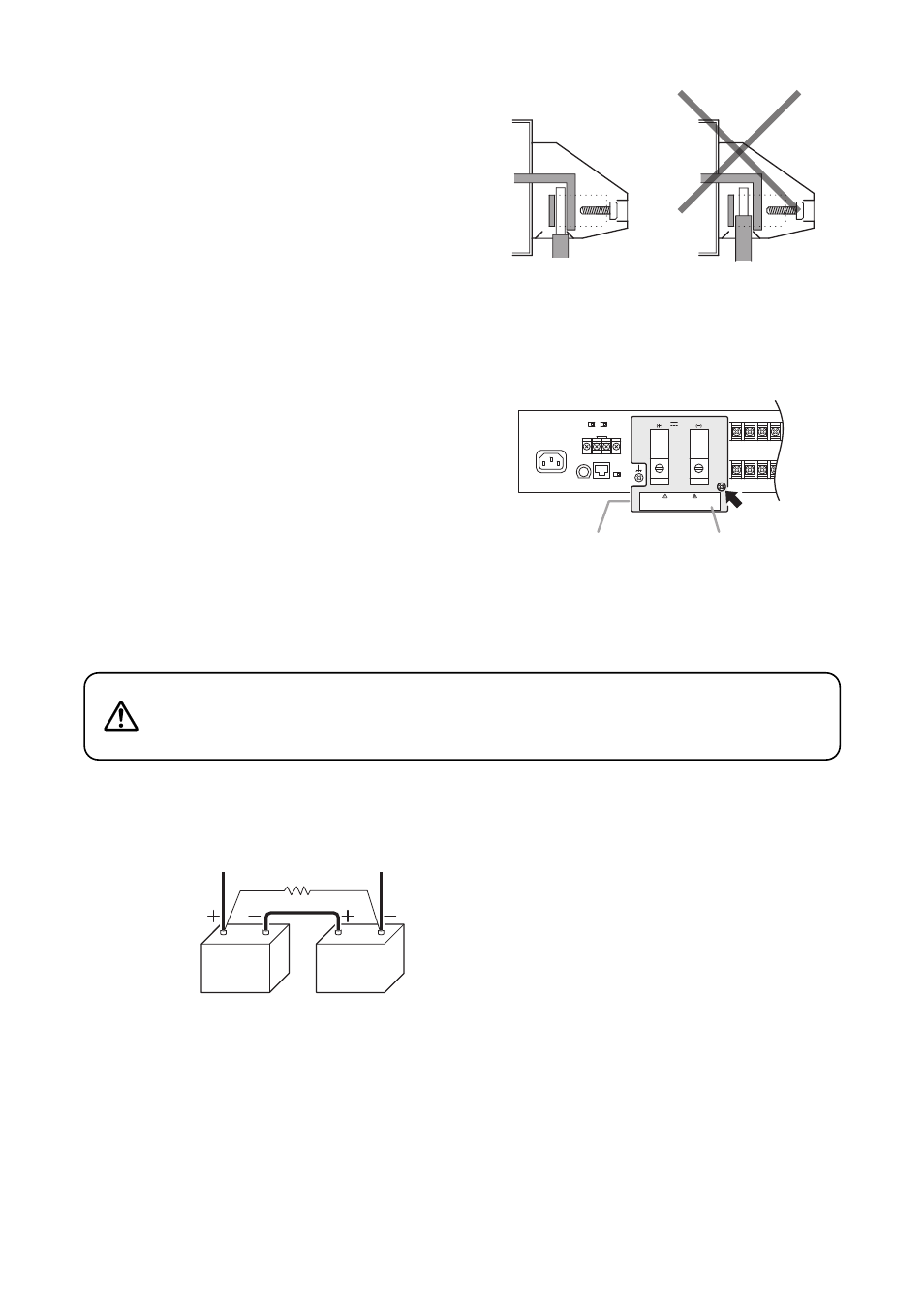

• Strip the cable end long enough (30 mm ± 5 mm) to
be fully clamped. Otherwise, its outer jacket
prevents the cable conductor from being tightly
secured, causing poor contact.
Correct Incorrect
[Attaching the insulating sheet]
To prevent the battery cable from being shorted to the rear panel due to misconnection, attach the supplied
insulating sheet in place following the procedures below.
Step 1. Remove the screw indicated by the arrow.
Step 2. Put the supplied insulating sheet over the
battery terminals, and fix it with the removed
screw.
Note
Attach the supplied Attention label (German) onto the
current English label as required.
24V MAX150A
BATTERY POWER IN
WARNING
Take special care to prevent the battery from
being shorted by misconnection of the battery
cable. If the short occurs, the unit may fail.
Insulating sheet
VX-2000DS
Attention label
Note correct polarity (positive and negative orientation) when
connecting the power supply cord. Reversed polarity connections will
cause damage to the system.
CAUTION
[Connecting the Battery]
Notes
To avoid battery failure and charger failure, take care of the following points.
• If batteries not recommended by the manufacturer are used and a charger failure occurs, connect a resistor
of 18 kΩ (1/4 W) parallel to the batteries.
Battery Battery
18 kΩ (1/4 W)
• Use the specified type of batteries and capacity.
