Toa C-PH200 User Manual

Page 12

Application

24 VAC (Common)

24 VAC

Camera power supply

Defroster

Wiper

Unused

Lens (Common)

Iris

Focus

Zoom

Unused

Video (coaxial cable shields)

Video (coaxial cable core)

Ceiling

Pan/tilt head

Housing cable

Camera housing

When suspending the housing, reverse
the housing mounting directions referred
to in the instructions for upright mounting.

Note
Do not use the bolts attached to the camera housing when suspending.
Removing the bolts allows dust to enter, causing equipment failures.

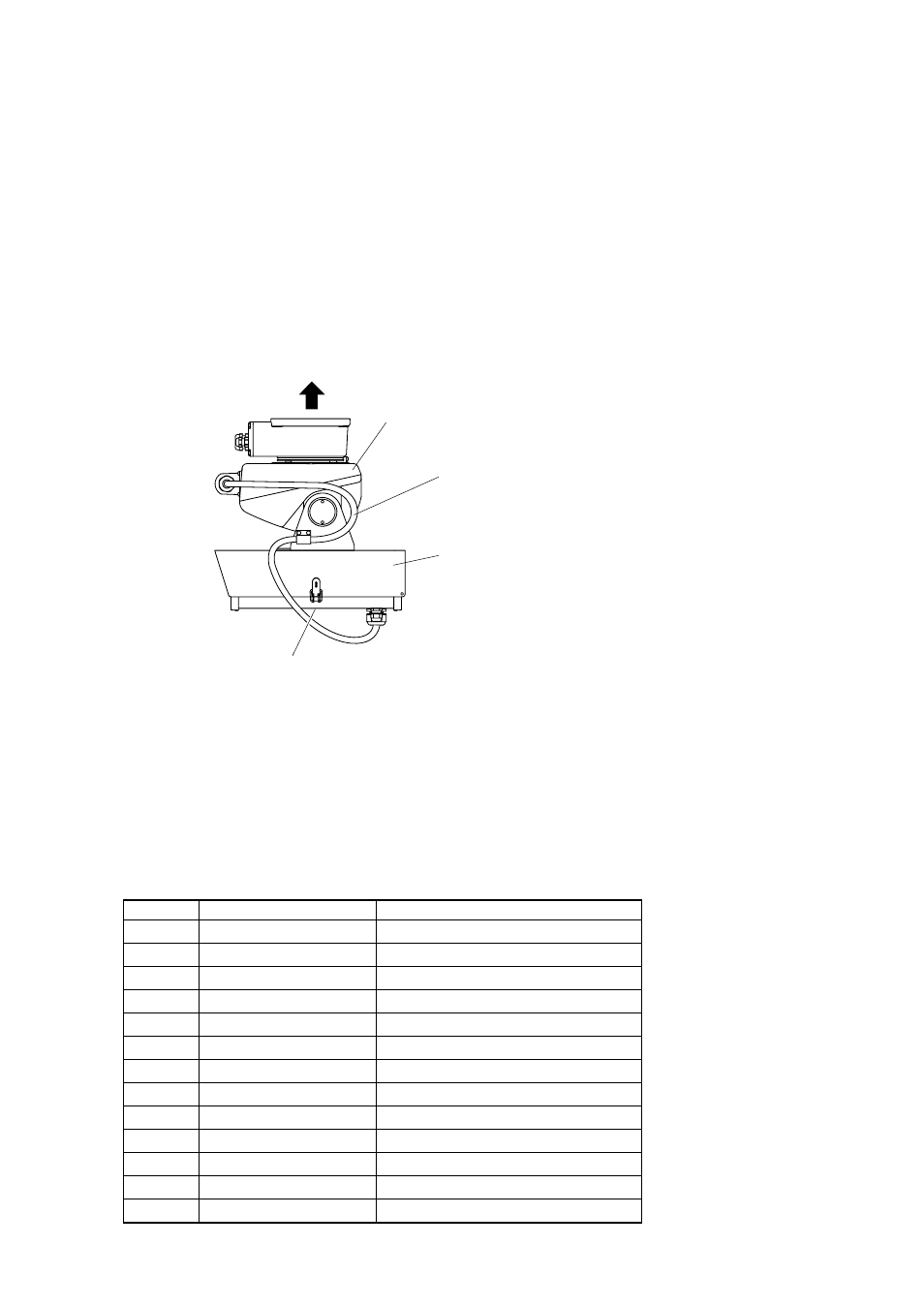

5.7. Camera Housing Mounting (Suspended Installation)

TOA’s C-CH Series Camera Housings can be installed in a suspended position.

Note: Since a waterproof function is disabled, avoid suspending such housings outdoors.

1. Using the housing suspension slots, attach the camera housing to the C-PH200 Pan/Tilt Head.

Note: Housings do not come with their mounting bolts. Prepare the following nuts and bolts:

• M6x12 hexagonal head bolt with washer : 2 pieces

2. Route the housing cable.

5.8. Housing Cable Specifications

Lead No.

Color

Green

Yellow

Blue

Gray

Red

Black

Purple

Orange

White

Peach

Brown

Coaxial cable shields

Coaxial cable core
