9

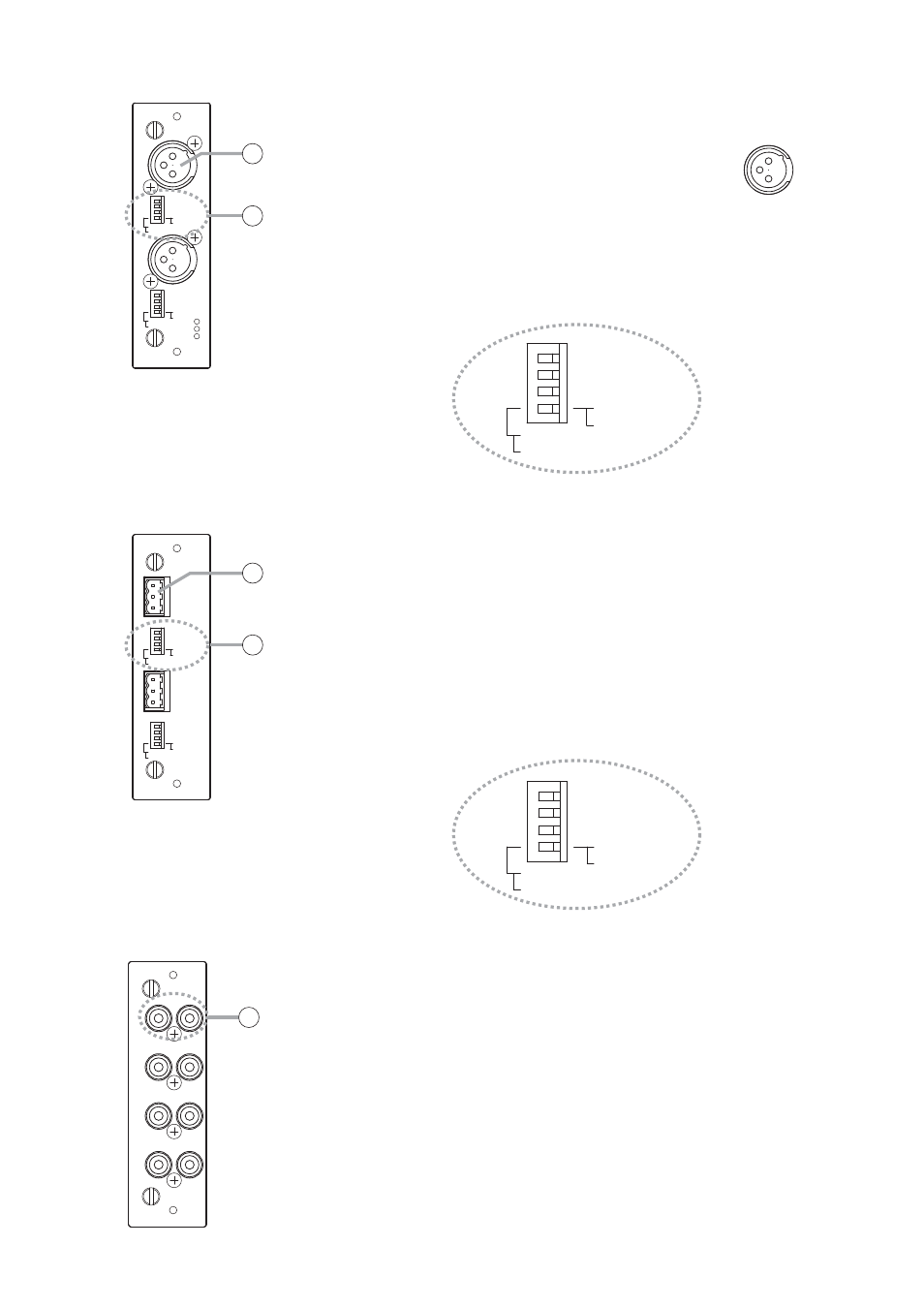

5.2.4. D-922E Microphone/Line Input Module
7. Monaural Input Terminal [1, 2]
Electronically-balanced, removable terminal block. (H: Hot; C: Cold; E:
Ground)
Note
Be sure to use the supplied removable terminal plugs (3P) for
connection.
8. Input Sensitivity Switch [PHANTOM, GND LIFT, MIC/LINE]
4-pole switch. Enables phantom power (+15V; ON/OFF, enabled only
when set to the MIC position), ground lift and input sensitivity.
Input sensitivity: –36 or –50 dB (MIC mode) / –10 or +4 dB (LINE mode)
ACCESSORY I.T.E 78CK
E
C
H
E
C
H
1
MIC/LINE INPUT MODULE
model D-922E
OFF : PHANTOM
LIFT : GND
LINE
-36dB(MIC)
+4dB(LINE)
ON
NORMAL
MIC
-10dB(LINE)
-50dB(MIC)
OFF : PHANTOM
LIFT : GND
LINE
-36dB(MIC)
+4dB(LINE)
ON
NORMAL
MIC
-10dB(LINE)
-50dB(MIC)
2
7
8
5.2.5. D-936R Stereo Input Module
9. Stereo Input Terminal [1L/1R, 2L/2R, 3L/3R, 4L/4R]
Unbalanced, RCA pin jack stereo input terminals. Either a single stereo
input can be selected from the 4 available stereo inputs or all 4 stereo
channels can be mixed.
Mode setting and stereo selection are performed by a PC using the
setting software supplied with the DP-K1. They can also be remotely
selected by way of connected external equipment through the use of the
control module.
Input signal level: –10 dB
ACCESSORY I.T.E 78CK
1R
2R
1L
2L
3L 3R
4L 4R
model D-936R
STEREO SELECT INPUT MODULE [ –10 dB]
9
OFF : PHANTOM
LIFT : GND
LINE
-36dB(MIC)
+4dB(LINE)
ON
NORMAL
MIC
-10dB(LINE)
-50dB(MIC)
5.2.3. D-922F Microphone/Line Input Module
5. Monaural Input Terminal [1, 2] (XLR-3-31 equivalent)
Electronically-balanced input termfinal. (Pin 1:
Ground; Pin 2: Hot; Pin 3: Cold)
Use XLR-3-12C or equivalent for connection.
6. Input Sensitivity Switch [PHANTOM, GND LIFT, MIC/LINE]
4-pole switch. Enables phantom power (+15 V; ON/OFF, enabled only
when set to the MIC position), ground lift and input sensitivity.
Input sensitivity: –36 or –50 dB (MIC mode) / –10 or +4 dB (LINE mode)
ACCESSORY I.T.E 78CK
2
1
MIC/LINE INPUT MODULE
model D-922F
OFF : PHANTOM
LIFT : GND
LINE
-36dB(MIC)
+4dB(LINE)
ON
NORMAL
MIC
-10dB(LINE)
-50dB(MIC)
OFF : PHANTOM
LIFT : GND
LINE
-36dB(MIC)
+4dB(LINE)
ON
NORMAL
MIC
-10dB(LINE)
-50dB(MIC) 1
2
3 : E
: H
: C
5
6
OFF : PHANTOM
LIFT : GND
LINE
-36dB(MIC)
+4dB(LINE)
ON
NORMAL
MIC
-10dB(LINE)
-50dB(MIC)
2: Hot
1: Ground
3: Cold
