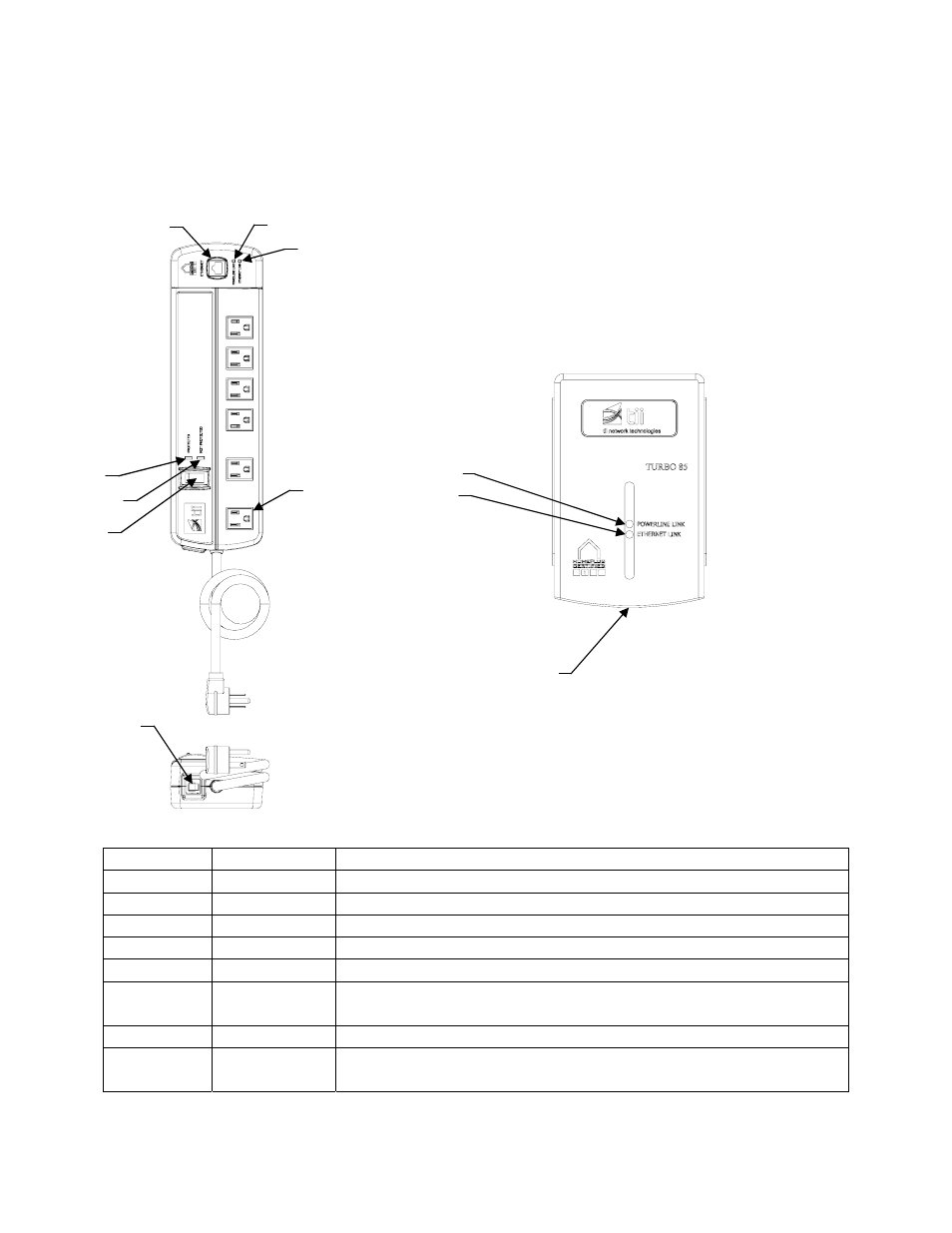

2.3 HNP6L-ET and HNX-ET Connections & Indicator Lights
The HomePlug Ethernet Adaptors have two indicator (LEDs) and an Ethernet port.
See Figures below.
HNP6L-ET HNX-ET
ITEM NO. FEATURE DESCRIPTION
1 Reset Fuse Self restoring line surge suppresser fuse.
2 Power Switch When plugged in an AC receptacle indicator lamp ON/OFF.
3 Protected Green LED ON indicates protection circuit is operational.
4 Not Protected Red LED ON indicates protection circuit not operational.
5 Ethernet RJ-45 for Ethernet cable.
6 Power Line
Link LED when ON, indicates that HomePlug circuit is powered.
7 Ethernet Link LED when ON, indicates Ethernet link established.
8 Filtered
Receptacle 6 EMI filtered receptacles for preventing unwanted electrical.
noise from been introduced by peripheral devices.
6
7
5
1
2
3
4
5
7
6
8
6-PL
