Vector dynamics, Foundation systems, Component parts list or – Tie Down Vector Dynamics Foundation System for Wind Zones IBC 2009 User Manual
Page 5
Page 5
4/3/2013

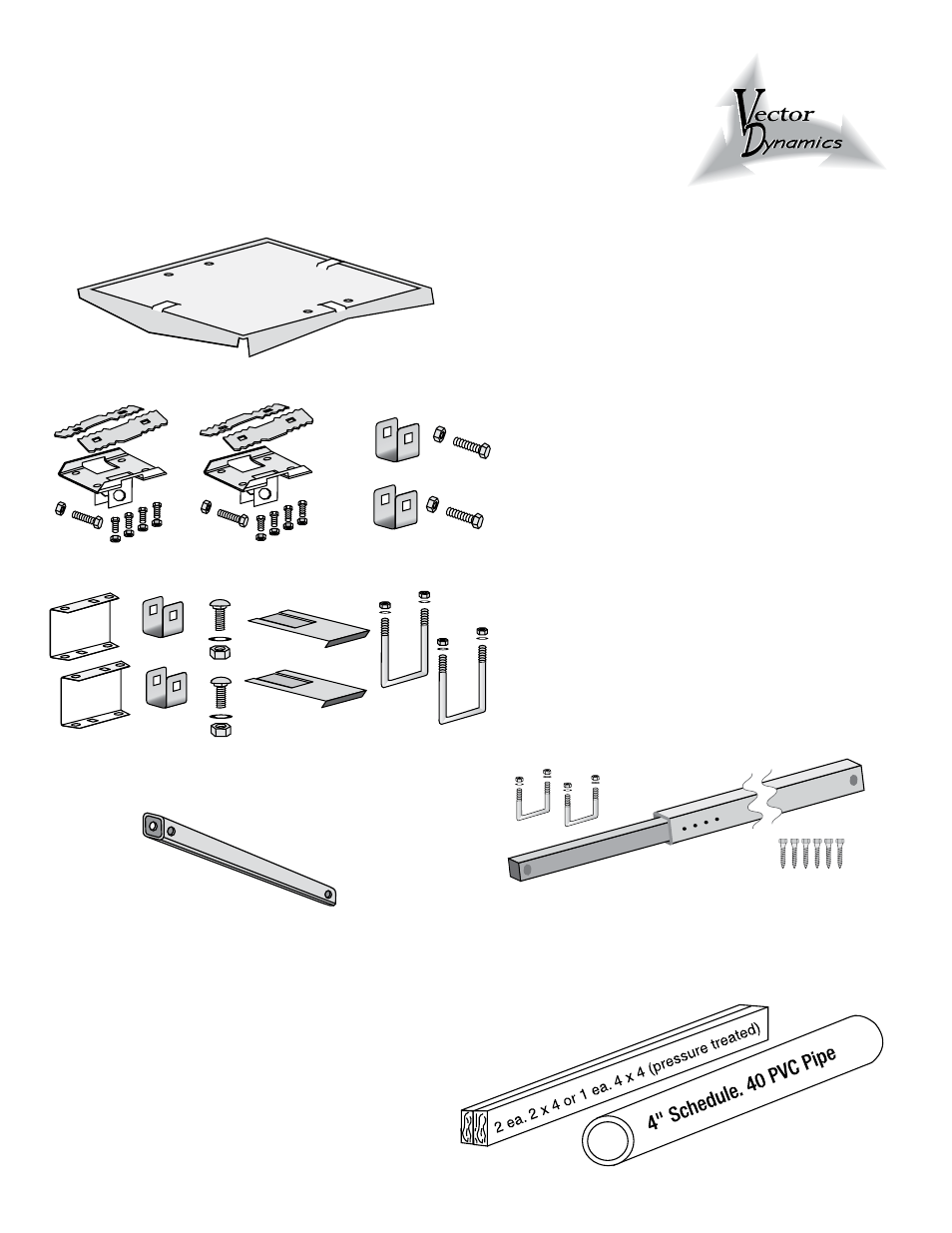

Vector 2000 3 Sq. Ft. Pad
Part # 59271
1 required with 59026 Longitudinal System
2 required with 59024 Lateral System
Longitudinal Hardware Kit
Part # 59026 (for use with 59271)
Vector Lateral Hardware Kit
Part # 59024
(for use with 59271)
Struts for Longitudinal Systems
Part No. Strut Length
Pier Height
59016
30”
up to 2 Blocks
59012
39”
up to 3 Blocks
59013
44”
up to 4 Blocks
59014
53”
up to 5 Blocks
59015
65”
up to 6 Blocks
Or
these products available
at your local hardware store
Center Compression Strut
#48612 - Single Section 62” - 108”
#48613 - Double Section, 34” - 60”
Or
these products available
at your local hardware store
Center Compression Strut
#48612 - Single Section 62” - 108”
#48613 - Double Section, 34” - 60”
Or
these products available
at your local hardware store
Center Compression Strut
#48612 - Single Section 62” - 108”
#48613 - Double Section, 34” - 60”
Vector Dynamics
Foundation Systems
Component Parts List
Or
these products available
at your local hardware store
Center Compression Strut
#48612 - Single Section 62” - 108”
#48613 - Double Section, 34” - 60”
Or
these products available
at your local hardware store
Center Compression Strut
#48612 - Single Section 62” - 108”
#48613 - Double Section, 34” - 60”
