Tie Down Vector Dynamics Foundation System for Wind Zones IBC 2009 User Manual
Page 12
Page
12 4/3/2013

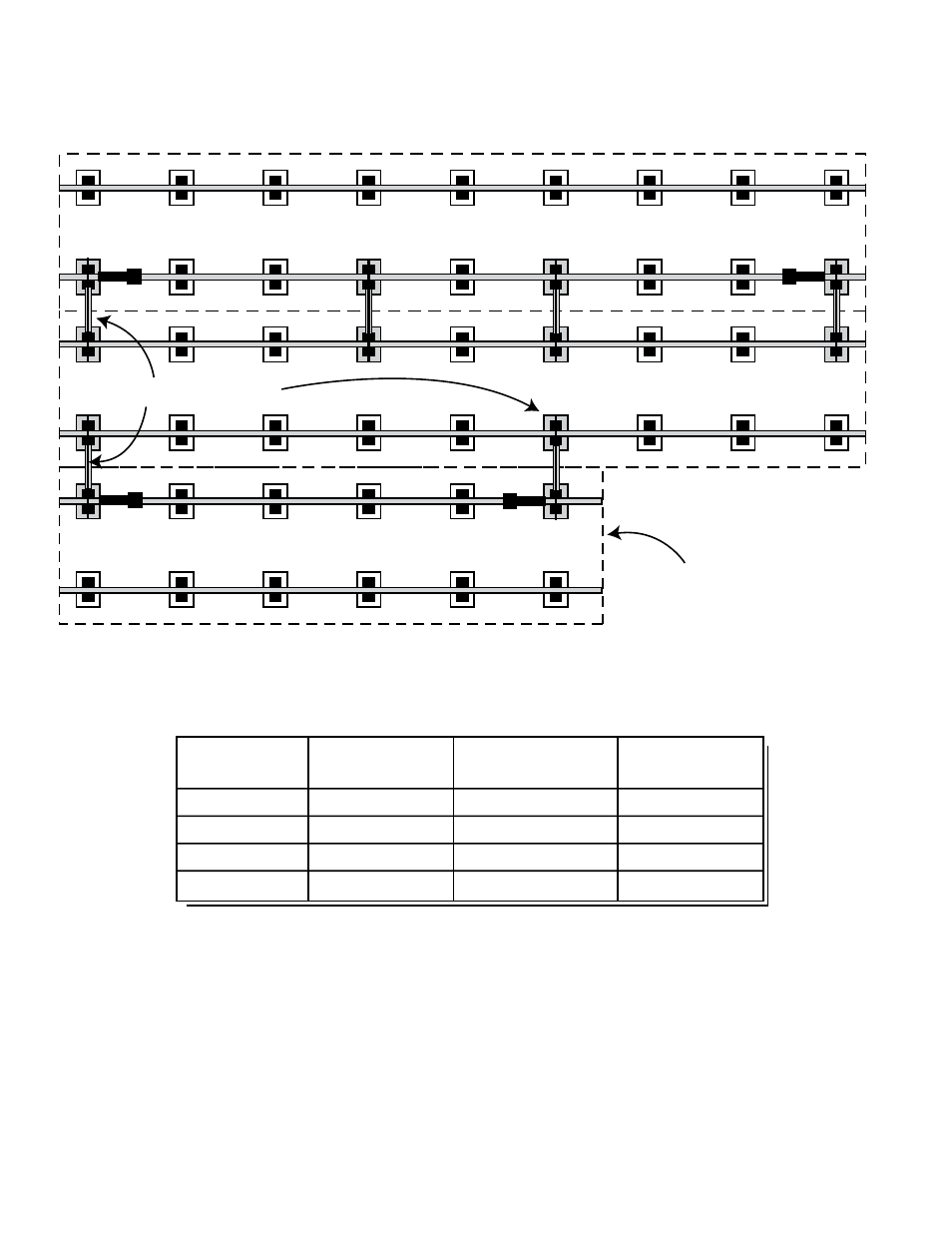

Example of a Triple Section 32' x 72' Home
WIND ZONE I for Triple Section Homes
Using Vector Dynamics Foundation Systems
Soil Classifications: 2, 3, 4A & 4B
Soil Bearing Capacity: 1,000 PSF Minimum
Anchors Required*: None (*Marriage wall and sheer wall anchors may be required by home manufacturer.)
Home Length
Vector Systems
Anchors Required
Longitudinal
Required
Per Side
System
1
(LSD)
0 to 48'
2 + 2 on Tag
0*
2 (4 Struts)
49' to 71'
3 + 2 on Tag
0*
2 (4 Struts)
72' to 84'
4 + 2 on Tag
0*
2 (4 Struts)
85' to 90'
5 + 2 on Tag
0*
2 (4 Struts)
NOTES:
* When a pier height at Vector locations exceeds 46”, an anchor must be used on the outside wall/beam at
that approximate location.
Vector Systems should be spaced as symmetrical as possible along the length of the home. Pier spacing
must be consistent with home manufacturers instruction and/or state requirements.
1
One Longitudinal Vector System is made up of 2 struts, which can be used separately.
Vector Systems
LSD
LSD
LSD
LSD
Tag or Full Triple
