Tie Down Vector Dynamics Foundation System for Wind Zones IBC 2009 User Manual
Page 10
Page
10 4/3/2013

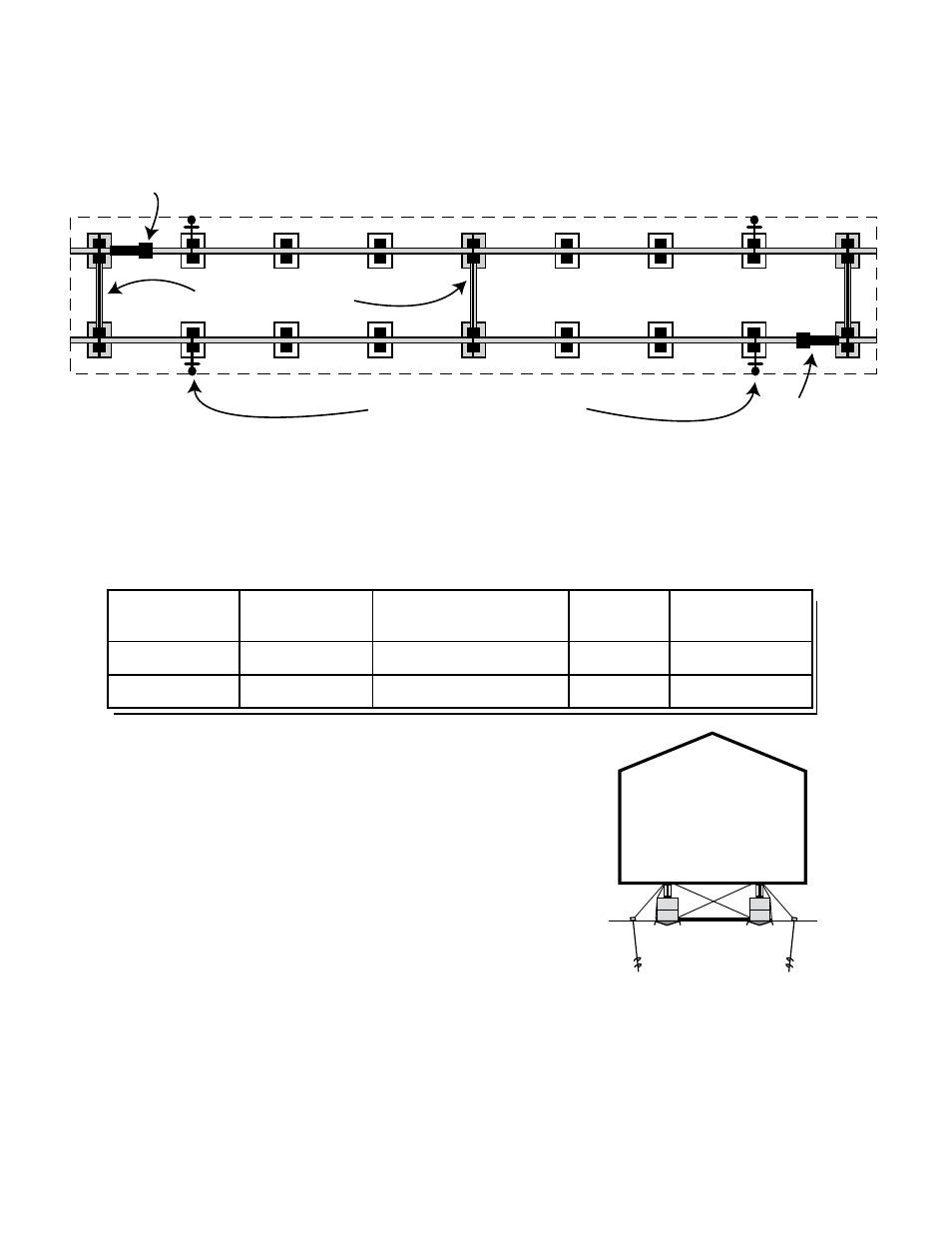

Example of a Single Section 14' x 72' H om e
WIND ZONE I for Single Section Homes
Using V ector Dynamics Foundation System s
Soil Classifications:
2, 3, 4A & 4B
Soil Bearing Capacity:
1,000 PSF Minimum
Anchors Required:
30" with 2-4" helix anchors (#59095) & 12" Stabilizer Plates (#59292)
with 1-1/4" Frame T ie s
Home Length
Vector Systems
Anchors Required
24+" Piers
Longitudinal
Required
Per Side Up To 24" Pier
Systems* (LSD)
0 to 72'
3
2
3
1 (2 Struts)
1 (2 Struts)
73' to 90'
4
3
4
NOTES:
V ector Systems should be spaced as
symmetrical as possible along the length of
the home. Pier spacing must be consistent
with home manufacturers instruction and/or
state requirements.
* One Longitudinal Vector System is made up of 2 struts,
which can be used separately.
V ector System s
Longitudinal
(LSD)
Longitudinal
(LSD)
Anchors & Stabilizers
Wind Zone I
