10. iNstall taNK hoses aNd adaPter
Install run tee (Z) to the adapter in the T port of the FieldPilot valve and the Connect hose (W) from the
branch of the run tee to the #3 port of the PRRV.
Connect hose
(S) from the branch of the run tee on the bottom of the John Deere steering block to the run of
the tee on the T port of the FieldPilot valve.

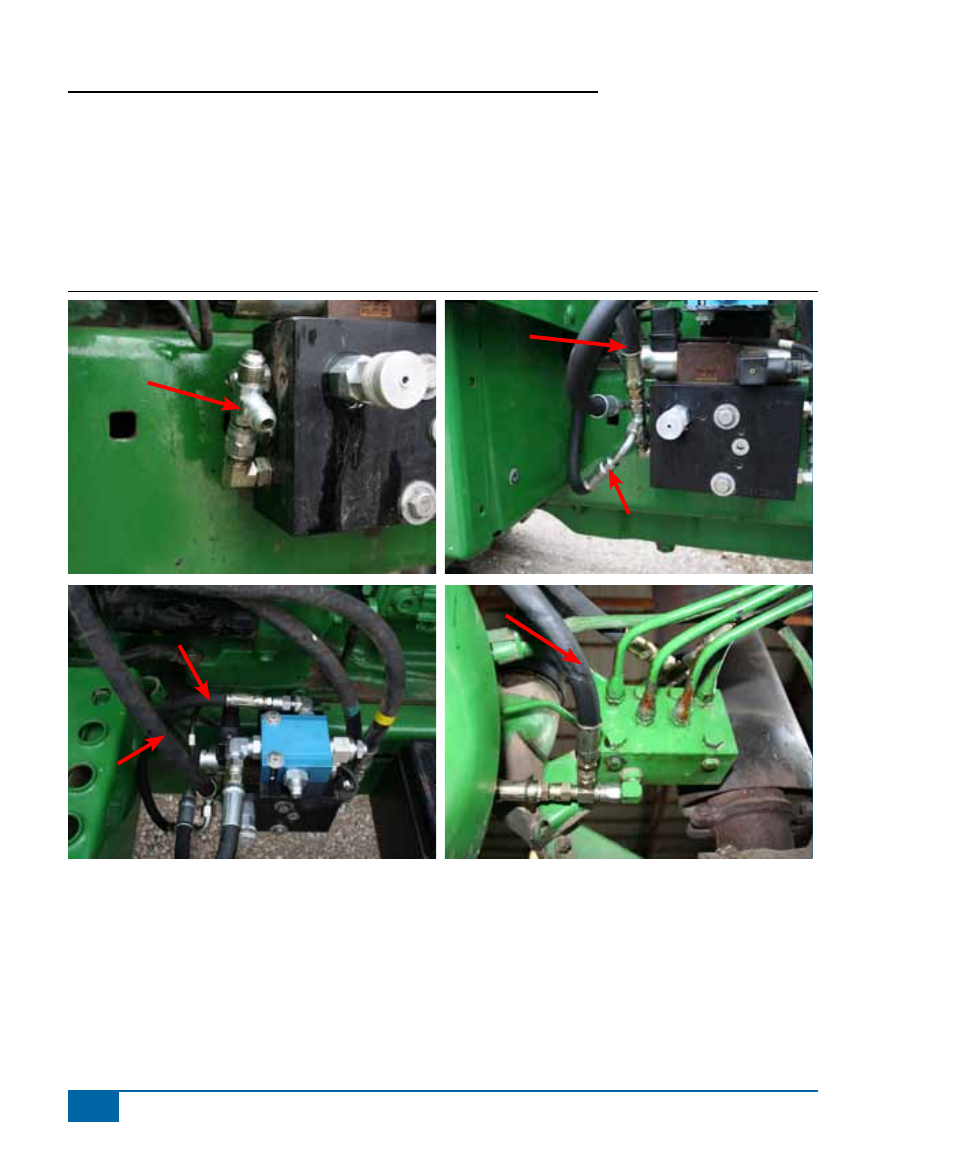

Figure 1-11: Install Tank Hoses and Adapter
11. iNstall the ValVe CoNtrol CaBle
Connect the FieldPilot valve control cable (I) to the coils on the FieldPilot valve and route the cable into the
cab. Connect it to the SCM harness. Do not be concerned at this time about which connector is connected to
which solenoid coil.
Z
W
W
s
s
s
