FieldPilot ®

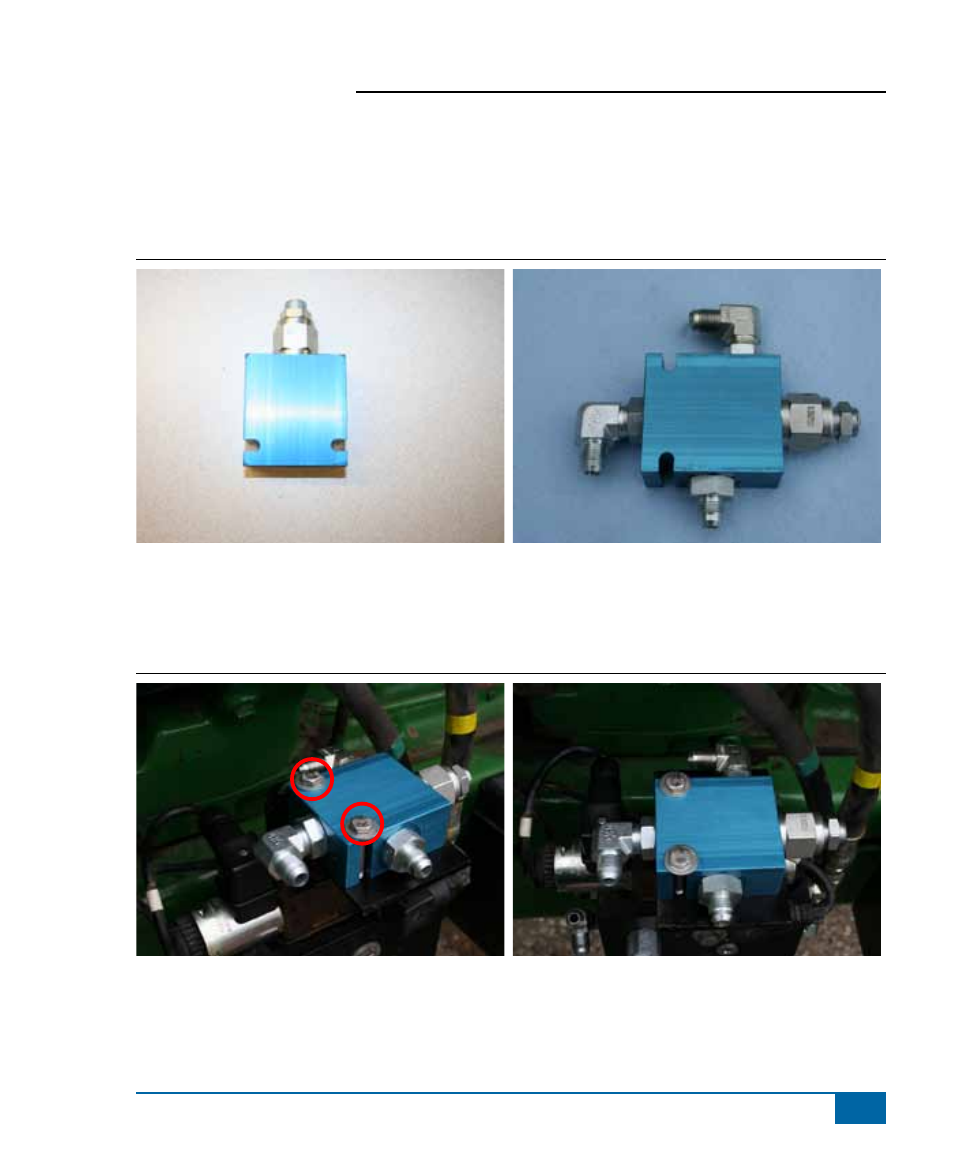

4. PrePare the PrrV ValVe
Install cartridge (G) into manifold (F) in the #10 port. Install adapters (EE) in the #1 and #3 ports of the
PRRV valve. Install adapter (DD) in the #2 port. (Additional adapters are included that can be used if
necessary to make your installation easier).
Figure 1-5: Prepare the PRRV Valve
G
F
ee
ee
dd
5. MoUNt the PrrV ValVe
Use parts (B, D, & L) to mount the PRRV valve to the bracket (Q) . The PRRV can be oriented a number
of ways to make your installation easier.
Figure 1-6: Mount the PRRV Valve
B,d,l
