6. PrePare the JohN deere steeriNg ValVe BloCK PressUre side
The John Deere steering valve block is located on top of the engine. Disconnect the pressure feed line from
the adapter on top of the JD steering valve block and disconnect this steel line from its connection in front
of the engine compartment and remove it completely. Then install a run tee (Z) on the adapter on the JD
steering valve block. Then use hose (T) to replace the steel line that was just removed.

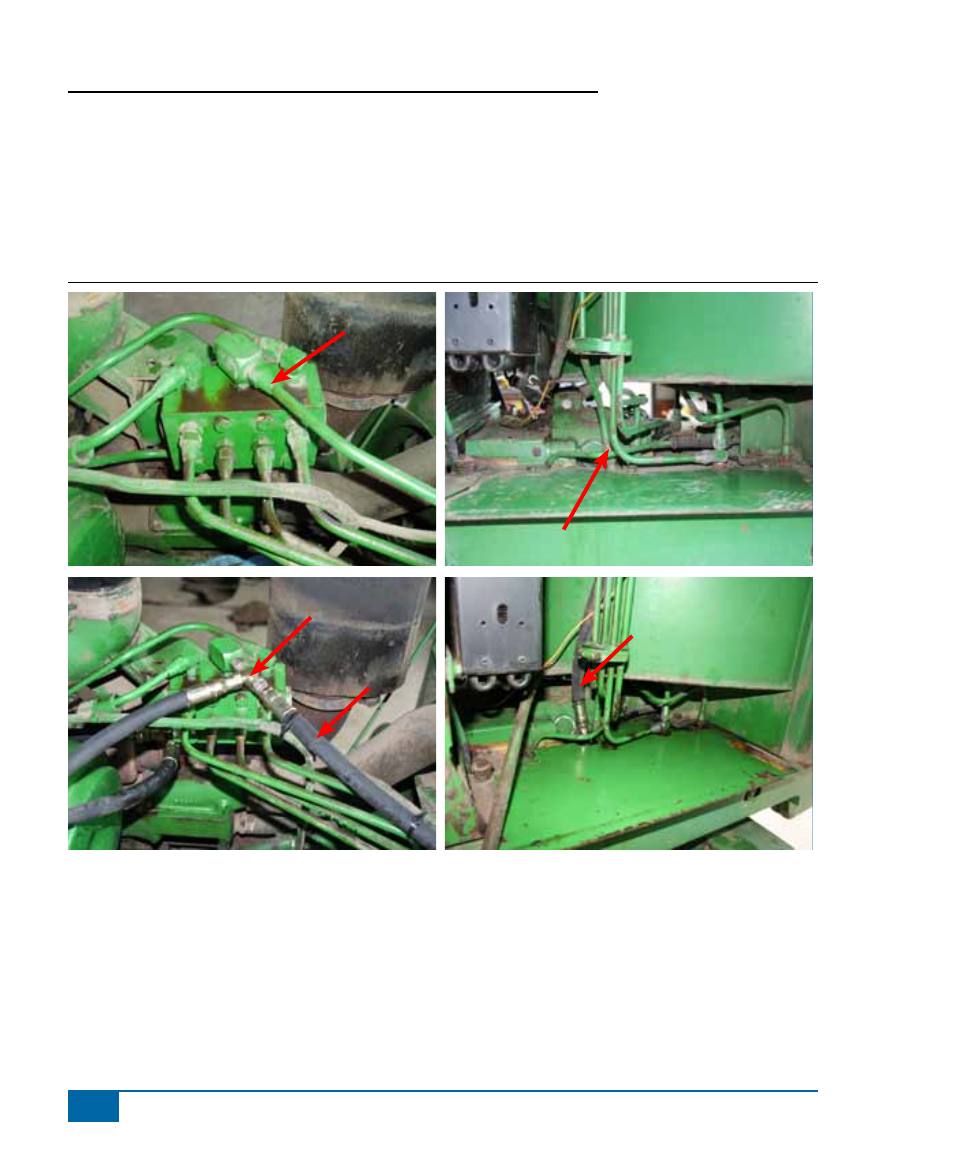

Figure 1-7: Prepare the John Deere Steering Valve Block Pressure Side
disconnect
disconnect
Z
t
t
