9. iNstall PressUre hoses
Connect hose (V) from the FieldPilot Valve P port to the #1 port of the PRRV. Connect hose (R) from the
run tee on top of the John Deere steering block to the #2 port of the PRRV.

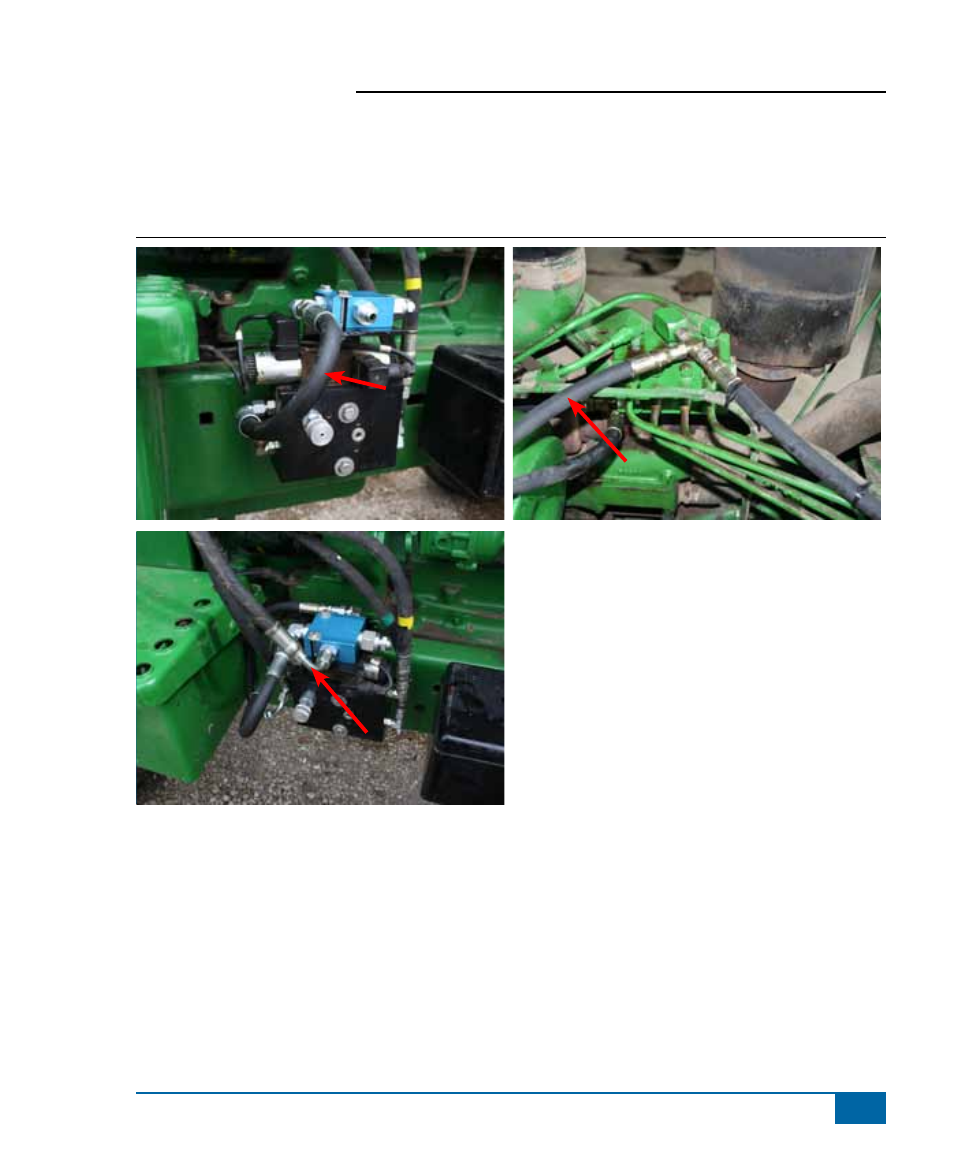

Figure 1-10: Install Pressure Hoses
V
R
R
