7. PrePare the JohN deere steeriNg ValVe BloCK taNK side
The John Deere steering valve block is located on top of the engine. Disconnect and remove the tank line
from the adapter on the bottom of the JD Steering Valve block and where it connects at the firewall just under
the windshield. Then install a run tee (Z) on the adapter on the JD steering valve block. The use hose (U)
to replace the steel line that was just removed.

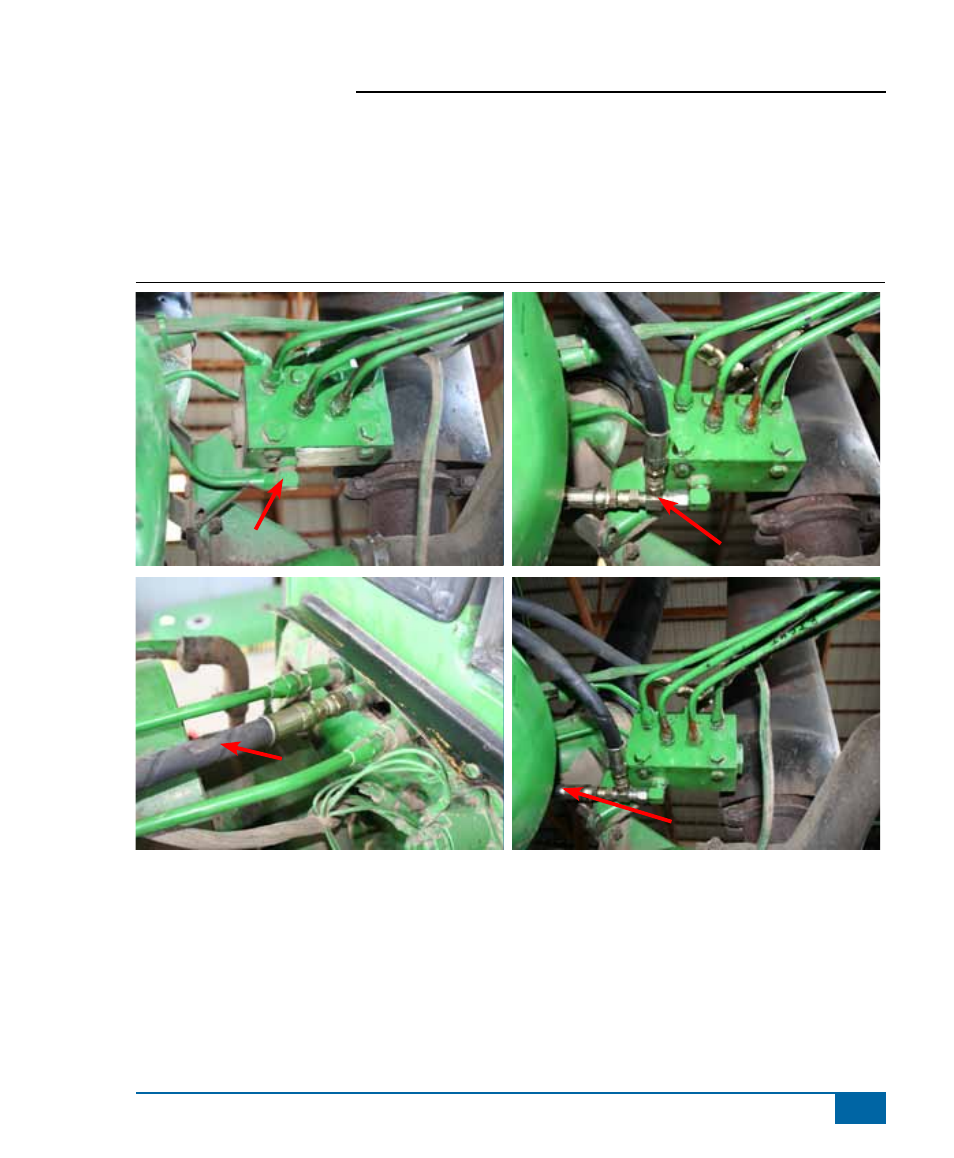

Figure 1-8: Prepare the John Deere Steering Valve Block Tank Side
disconnect Z
U
U
